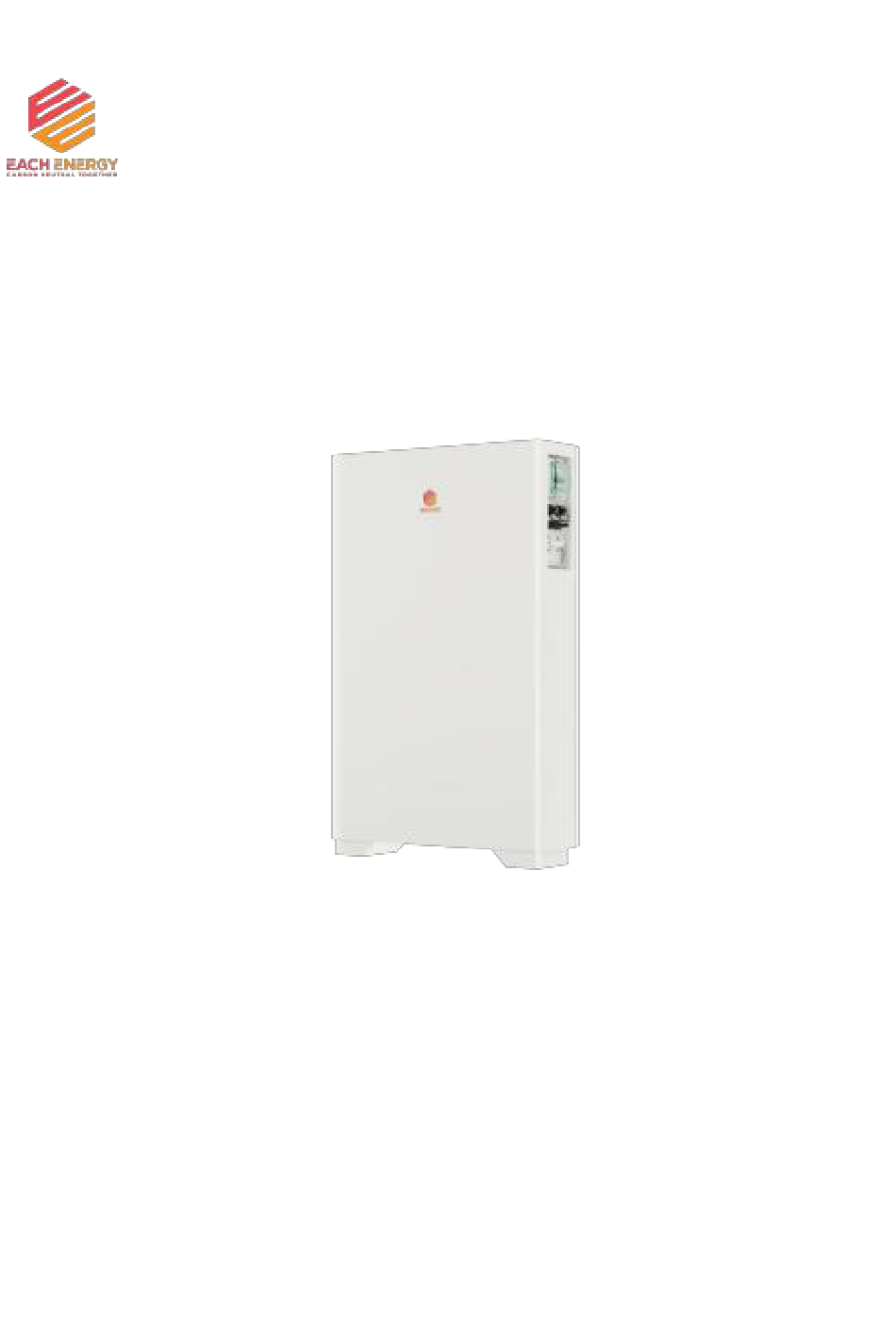

- Page 1 User Manual Each Energy Technology (Suzhou) Co., Ltd. www.eachenergy.com...
- Page 3 Copyright © Each Energy Technology (Suzhou) Co., Ltd. Without written permission, any information of this document (partly or entirely) cannot be extracted, copied or transmitted in any form or by any means. All right reserved. Notice： The information in this document is subject to change without notice.
- Page 4 目录 User Manual......................1 1. About the Manual ..................5 2. Product Overview ..................6 2.1 Product Description ................6 2.2 Scope of Delivery .................8 3. Safety ......................8 4. Storage ....................... 10 5. Installation and mounting ................11 5.1 Installation Environment ..............11 5.2 Installation Location ................
- Page 5 Please read this manual carefully before conducting any kind of work on the batteries. Valid Region This manual applies to the operation of Each Energy batteries in Australia, New Zealand, the UK, EU, South America, North America, and Southeast Asia.
- Page 6 2. Product Overview 2.1 Product Description • The battery system can be compatible with the following EachEnergy inverter series: PHS3K-M1, PHS3.6K-M1, PHS4K-M1, PHS4.6K-M1, PHS5K-M1, PHS6K-M1, and PHS8K-M1 Product Appearance:...
- Page 7 Name Grip Switch Communi Grounding Explosion Battery cation Port -proof input port icati Port valve Port...
- Page 8 2.2 Scope of Delivery Battery Cable Assembly * 2 3. Safety 3.1 Safety Symbols Symbol Explanation Indicates a high level of risk which, if not avoid, DANGER may result in death or serious injury Indicates a medium level of risk which, if not WARNING avoid, may result in death or serious injury...
- Page 9 Indicates a low level of risk which, if not avoid, CAUTION may result in minor or moderate injury Indicates a situation which, if not avoided, may NOTE result in device damage or property damage Indicates a danger of electric shock or high voltage ELECTRIC SHOCK Indicates hot surface, do not touch...
- Page 10 machines. Do not open the housing of the machines at any time. Unauthorized opening will void guarantee and warranty and may damage the machines. Do not touch non-insulated parts or cables, disconnect the machines from voltage sources and guarantee no possible re-connection before working on the machine.
- Page 11 the box before sealing. Put the equipment back to the packing box if it is not to be installed in 3 days after unpacking. Storage SOC: 10%~15%SOC. Charge and discharge the battery every 6 months. Recommended storage temperature: 0℃~35℃ (less than one year), -20℃~0℃...
- Page 12 regular work. Keep children away from the equipment. Do not install the equipment in places prone to accumulate water. Do not put inflammable or explosive matters near the equipment. 5.2 Installation Location WARNING Do not select locations storing flammable material which may cause fire or explosion! The following points should be considered when selecting an installation location.
- Page 13 Mounting: with mounting brackets using screws and suitable tools.
- Page 14 6. Electrical Connection 6.1 Cable Connection Overview of the cable connection Take PHS3-8KW inverter series as an example connection here: NOTE: Parallel connection of the batteries is not recommended.
- Page 15 WARNING: Please disconnect the power before wiring and do not touch the switch with wet hands! The battery is very heavy, please be careful ! 6.2 Ground Cable Connection The external grounding port is located beside the battery port. Procedures： Prepare an OT terminal M4, crimp a grounding cable to the terminal, insert a fastening screw into the OT terminal, insert them to the grounding port on the battery, and screw them tightly (the torque is 2 N.m.).
- Page 16 6.3 Battery input Connection Step1 Turn the Grid Supply Main Switch OFF. Step2 Turn the DC switch OFF, and for battery, turn the battery switch off. Step3 Prepare battery cables including one red cable and one black cable. Step4 Plug the power connector of red cable in the battery port＋on both inverter and battery.
- Page 17 NOTE: Power connectors 6.4 Communication Cable Connection 1)Strip the insulation layer off the communications sable for a little length. 2)Insert the wire into the Crimp Contact and crimp them with an electrical crimp-er. 3) Thread the communications cable through Nut, Seal Ring, and Housing successively, and insert the cable into the corresponding pin of the Terminal (Function of corresponding pin will be introduced below) 4) Plug the connector to the Communication port of the Battery.
- Page 18 There are 16 pins of the connector, please insert the blue wire into the pin 2 and blue-white wire into the pin 1 for the intended function. Connect the communication port of the inverter to the PCS port of the battery using the communication cable.
- Page 19 7. Operation 7.1 Check Before Power On Check the following items before power on. Otherwise, the Battery System may be damaged. Items 1 The equipment is installed firmly in a place where is convenient for operation and maintenance. The installation place is clean and well ventilated.
- Page 20 communication cables are connected, rotate the screws on the waterproof cover, open the waterproof cover, toggle the air switch to upward state by hand. Please observe whether the battery indicator on the control panel of the inverter is long lighted or not. If it's the former case,the system is turned on successfully.
- Page 21 7.4 BATTERY INFO You can find battery information in this sub-menu. This is the relevant battery parameter content on the inverter screen...
- Page 22 DANGER ELECTRIC SHOCK High voltage may present, please beware of the risk of electric shock and take protection precautions! 8. Maintenance 8.1 General Maintenance The batteries need regular check and maintenance conducted by technicians . Please ensure that they are free of dust, foliage and other dirt.
- Page 23 NOTE: The use of cleaning agents may damage the machine and its components. Only use a cloth moistened with clear water to clean the machine. 8.2 Maintenance period Item Period Fully charge the battery and discharge it to Once Every 3 25~50% if the battery is not in use.
- Page 24 local regulations for electrical equipment waste, and choose the right site for the disposing specified for electrical equipment waste according to local regulations.
- Page 25 9. Specification...
- Page 26 418.000048.000_M10_EN Each Energy Technology (Suzhou) Co., Ltd. Address: Building 4, Modern Industrial Park, Wuzhong Technology City, Suzhou City, Jiangsu P.R.China Tel: +8651266581088 Email: service@eachenergy.com Web: www.eachenergy.com Copyright © Each Energy Technology (Suzhou) Co., Ltd.
