Each Energy PHS3-8K-M1 Quick Installation Manual

Advertisement

Quick Links

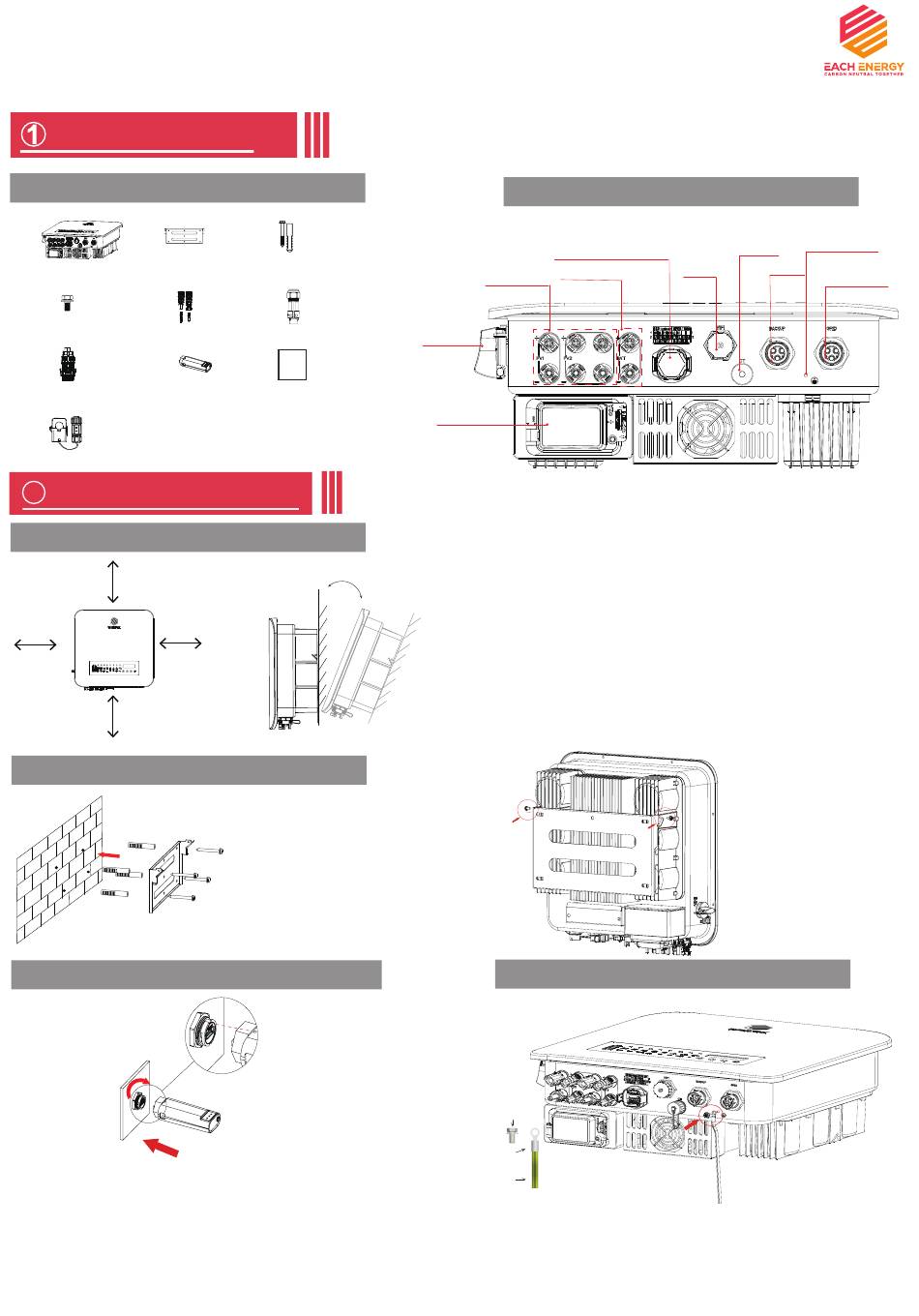

Quick Installation Guide
PHS3-8K - M1
Overview
1.1 Scope of Delivery
Wall bracket * 1
Inverter * 1
Fastening Screws *3
PV Connectors * 3
Battery Connectors * 1
Communications
WiFi Data logger * 1
Connector * 1
CT Combination * 1
2
Mechanical Installation
2.1 Installation Requirement
300 mm
150 mm
150 mm
300 mm
2.2 Mounting
2.3 Wifi/GPRS Stick Logger Installation
1) Plug the stick to the Wifi port on the inverter
2) Rotate the front operative part of the stick
clockwise till the secure connection of the stick.
Expansion Screws * 4
AC Connectors * 2
Documents
Documents * 1
0°- 15°
1) Drill 4 mounting holes of about
4 cm deep with a 10 mm drill bit
2) Insert expansion tubes into
holes
3) Fix the bracket on the wall with
screws
1.2 Port Description
Communications Port
(BMS, Meter, DRM,RS485, Parallel)
Battery Input port
PV Input port
DC Switch
Battery Switch
1) A minimum 150 mm clearance should be kept
between two inverters and a minimum 300 mm
clearance between inverters and the ground.
2) Install inverter vertically or with a backward tilt
within 15°.
2.4 External Grounding Connection
screw
OT terminal
cable
1) Crimp a grounding cable to the OT terminal
2) Insert a fastening screw into the OT terminal
3) Insert them to the grounding port of the inverter
4) Screw them together.
Grounding Port
CT Port
Backup Port
Wifi Port
On-grid Port
1) Hang the inverter
on the bracket
2) Lock the inverter to
the bracket with
screws
