Capital
100 - 200 - 300 B
Code / Référence
Power consumption /
Consommation électri-
que
Power supply / Alimenta-
tion électrique
Power factor / Facteur de
puissance
Electrical class / Classe
électrique
Weight / Poids
Operating temperature
/ Température de fon-
ctionnement
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual / Manuel d'utilisation
551199 Rev. 2.0
Date: 20/02/2025
Capital 100
AM5038
77 W
120 and 277VAC 50-60Hz
cos.φ= 0.97
5.1 Kg
CAPITAL 100
293mm
11.5in
CAPITAL 200
475mm
18.7in
CAPITAL 300
492mm
19.4in
Tel. +39.0376.779483
E-mail: sales@griven.com
Web: www.griven.com
Capital 200
AM5036
148 W
I
9.5 Kg
-40°C to +50°C ( -40°F to 122°F )
© Copyright Griven 2020 - GRIVEN S.r.l. is conti-
nuously developing and improving all its products.
We reserve the right to change specifications
without prior notification
120-277VAC 50-60Hz
cos.φ= 0.95
85mm
3.4in
90mm
3.5in
105mm
4.1in
Capital 300
AM5034
220 W
14.7 Kg
page 1 of 5
Advertisement
Related Manuals for Griven Capital 100
Summary of Contents for Griven Capital 100

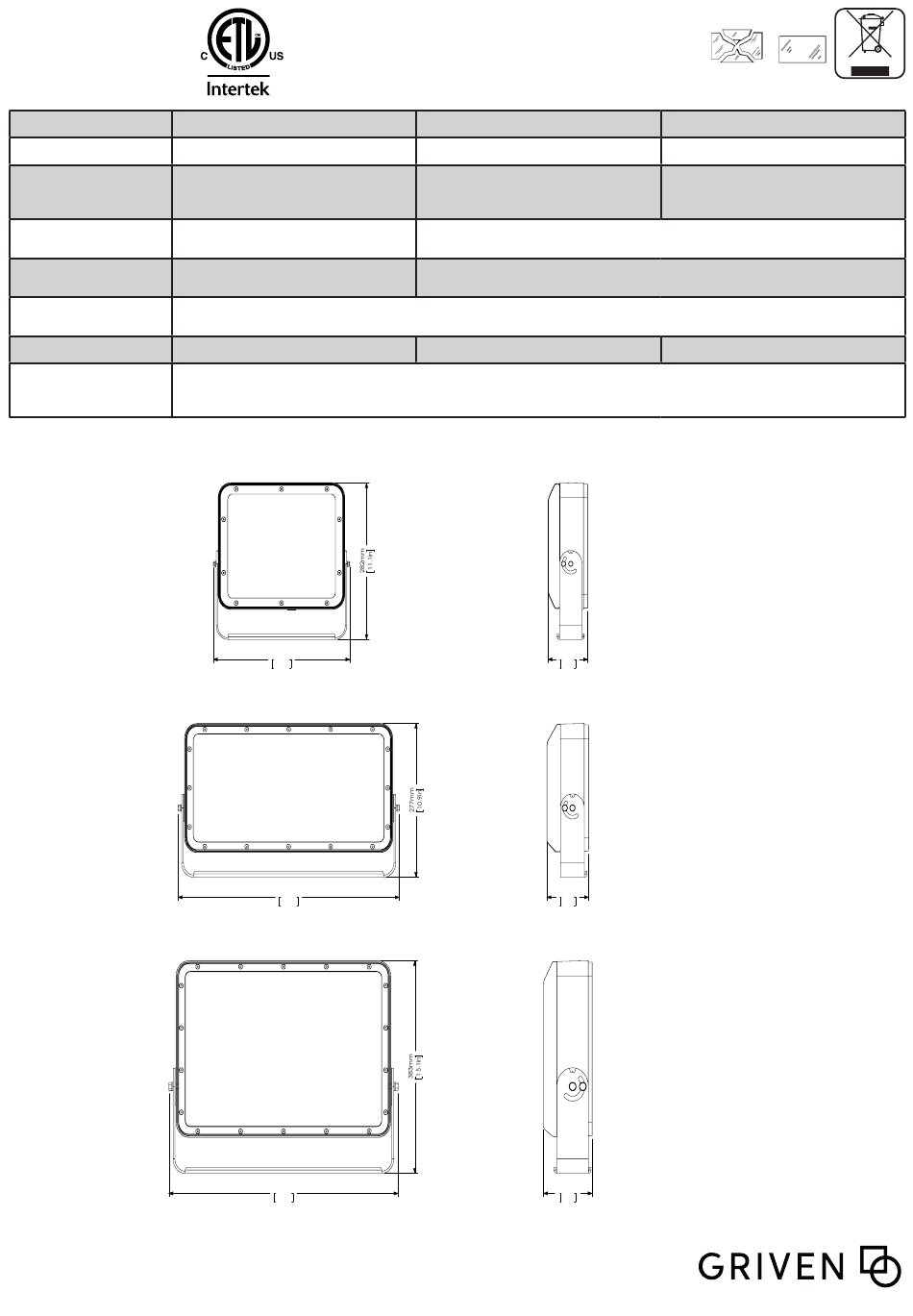

- Page 1 CAPITAL 300 492mm 105mm 19.4in 4.1in page 1 of 5 © Copyright Griven 2020 - GRIVEN S.r.l. is conti- Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 nuously developing and improving all its products. E-mail: sales@griven.com 46042 Castel Goffredo We reserve the right to change specifications Web: www.griven.com...
- Page 2 Important notices - This product must be installed in accordance with the local applicable electrical and construction co- des by a qualified personnel familiar with the construction and operation of the product and the hazards invol- ved. Failure to comply with the following installation instructions may result in death or serious injury. - Do not stare at the operating light source.
- Page 3 Observations importantes - Ce produit doit être installé conformément aux normes locales applicables en matière d’électricité et de con- struction, par un personnel qualifié dans le bâtiment, connaissant le produit et coscient des risques encourus. Le non respect des instructions d’installation qui suvent peut occasionner de graves blessures voire la mort. - Ne pas fixer la source de lumière allumée.
- Page 4 128° 40° Capital 100: A=size 8 (ISO ) Wrench / Clé B=128°, C=40°,Tightening torque/Couple de serrage 5.7 Nm Capital 200: A=size 10 (ISO) Wrench / Clé B=125°, C=35°, Tightening torque/Couple de serrage 10 Nm Capital 300: A=size 13 (ISO) Wrench / Clé, B=130°, C=40°, Tightening torque/Couple de serrage 24.1 Nm...
- Page 5 Connection / Branchement “P” type cable ( Power in) Capital 100 White / Blanc = N (Neutral / Neutre) POWER IN Green / Vert = GND / Terre Black / Noir =L (Live / Phase) Capital 200 Blue / Bleu = N (Neutral / Neutre)
