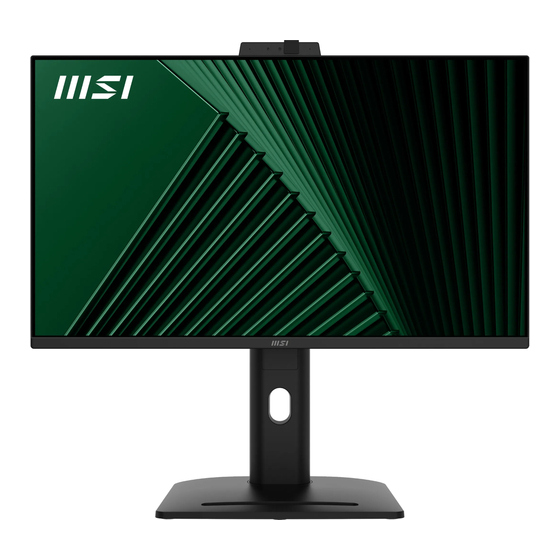

PRO MP275QPDG (3PC8)

User Guide

Need help?

Do you have a question about the PRO Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MSI PRO Series

Page 1 PRO Series LCD Monitor PRO MP275QPDG (3PC8) User Guide...
Page 2 Contents Getting Started ........................3 Package Contents ..................... 3 Installing the Monitor Stand ..................4 Adjusting the Monitor ....................6 Monitor Overview ..................... 7 Connecting Devices via Daisy Chain ..............10 Connecting the Monitor to PC ................11 OSD Setup ........................12 Navi Key ........................
Page 3 Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor PRO MP275QPDG Documentation Quick Start Guide Accessories Stand with Screw(s) Stand Base with Screw(s)
Page 4 Installing the Monitor Stand 1. Leave the monitor in its protective packaging. Align the stand bracket to the monitor groove. 2. Tighten the stand bracket with screws. 3. Connect the base to the stand and tighten the base screw to secure the base. 4.
Page 5 This monitor comes with an optional VESA plate, providing users with the flexibility ● to mount their mini PC if desired. 75mm 75mm 100mm 100mm...
Page 6 Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. Important ⚠ Avoid touching the display panel when adjusting the monitor. -5° 20° 30° 30° 90° 90° 130mm...
Page 7 Monitor Overview 13 14...
Page 8 Webcam Privacy Shutter Cable Routing Hole Power Button & Navi Key Power Jack Kensington Lock HDMI™ Connector Supports HDMI™ CEC, 2560x1440@100Hz as specified in HDMI™ 2.0b. Important ⚠ To ensure optimal performance and compatibility, please use only HDMI™ cables certified with the official HDMI™ logo when connecting this monitor. For more information, please visit https://www.hdmi.org/resource/cables.
Page 9 USB 3.2 Gen 1 Type-B Upstream Port For USB Upstream Cable. To Monitor Important ⚠ Check the package for USB Upstream Cable and connect it to the PC and monitor. Once this cable is To PC connected, the USB Type-A Downstream Ports on the monitor will be ready for use.
Page 10 Connecting Devices via Daisy Chain Important ⚠ Reference image only. Appearance will vary. ● For detailed instructions on how to connect, please refer to the manuals of your ● peripheral devices. Daisy Chain Technology allows you to connect multiple monitors in a series, using a single video cable to link one display to the next.
Page 11 Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Connect the power cord to the monitor power jack. (Figure A) 4. Plug the power cord into the electrical outlet. (Figure B) 5.
Page 12 OSD Setup This chapter provides you with essential information on OSD Setup. Important ⚠ All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/ Down/ Left/ Right: ●...
Page 13 OSD Menus Important ⚠ The following settings will be grayed out when HDR signals are received: MPRT Contrast ● ● Low Blue Light Color Temperature ● ● HDCR PIP/PBP ● ● Brightness sRGB ● ● Professional 1st Level Menu 2nd/3rd Level Menu Description Mode ●...
Page 14 1st Level Menu 2nd/3rd Level Menu Description MPRT ● MPRT is available when the refresh rate is over 85 Hz. ● Activating MPRT will affect: Affected Function Function Status » Brightness Unable to select » Response Time » HDCR » Adaptive-Sync Set to OFF »...
Page 15 1st Level Menu 2nd/3rd Level Menu Description Eye-Q Check ● Select OFF to disable Eye-Q Check. ● Activating Eye-Q Check will affect: Affected Function Function Status » Info. On Screen » Alarm Clock Set to OFF » Screen Assistance » Refresh Rate Amsler Grid ●...
Page 16 Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ● Properly adjust Brightness according to the surrounding lighting. Contrast 0-100 ● Properly adjust Contrast to relax your eyes. Sharpness ● Sharpness improves clarity and details of images. Image ● Image Enhancement enhances image edges to Enhancement improve their acutance.
Page 17 Input Source 1st Level Menu 2nd Level Menu Description HDMI™ 1 ● Select an Input Source from the list. HDMI™ 2 Type C Auto Scan ● Users can use the Navi Key to select Input Source at below status: ● While “Auto Scan” is set to “OFF” with the monitor at power saving mode;...
Page 18 PIP/PBP 1st Level Menu 2nd/3rd Level Menu Description ● PIP (Picture in Picture) allows users to simultaneously display multiple video sources Source HDMI™1 on one screen. One program is displayed on the full screen at the same time as one or more HDMI™2 other programs are displayed in inset windows.
Page 19 Navi Key 1st Level Menu 2nd Level Menu Description ● All Navi Key items can be adjusted via OSD Menus. Down Brightness Left Mode Right Alarm Clock Input Source PIP/PBP Refresh Rate Info. On Screen Audio Volume Settings 1st Level Menu 2nd Level Menu Description Language...
Page 20 1st Level Menu 2nd Level Menu Description HDMI™ CEC ● HDMI™ CEC (Consumer Electronics Control) supports Sony PlayStation®, Nintendo® Switch™, Xbox Series X|S consoles and various audio-visual devices that are CEC-capable. ● If HDMI™ CEC is set to ON: ● The monitor will automatically power on when the CEC device is turned on.
Page 21 Specifications Monitor PRO MP275QPDG Size 27 inch Curvature Flat Panel Type Resolution 2560x1440 (WQHD) Aspect Ratio 16:9 Brightness Typical SDR 250 nits Contrast Ratio 1300:1 Refresh Rate 100Hz Response Time 4ms (GtG) 1ms (MPRT) ● 1 x DisplayPort 1.2a (Output) ●...
Page 22 Monitor PRO MP275QPDG ● Plate Type: 100 x 100 mm VESA Mounting ● Screw Type: M4 x 10 mm ● Thread Diameter: 4 mm ● Thread Pitch: 0.7 mm ● Thread Length: 10 mm ● VESA Screw Type: ● Male Thread: M4 x 6 mm ●...
Page 23 Preset Display Modes Important ⚠ All information is subject to change without prior notice. Default Standard Mode Standard Resolution HDMI™ USB-C 640x480 @60Hz @67Hz @72Hz @75Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz...
Page 24 PIP Mode (Not Support HDR) Standard Resolution HDMI™ USB-C 640x480 @60Hz @67Hz @72Hz @75Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz Full HD 1920x1080 @60Hz 2560x1440 @60Hz Video Timing 480P Resolution...
Page 25 PBP Mode 1 (Not Support HDR) Standard Resolution HDMI™ USB-C 640x480 @60Hz @67Hz @72Hz @75Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz Video Timing 720P Resolution 1920x1440 @60Hz 640x1440 @60Hz...
Page 26 PBP Mode 2 (Not Support HDR) Standard Resolution HDMI™ USB-C 640x480 @60Hz @67Hz @72Hz @75Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz Video Timing 720P Resolution 1280x1440 @60Hz...
Page 27 Screen Size 16:10 (Not Support HDR) Standard Resolution HDMI™ USB-C 640x480 @60Hz @67Hz @72Hz @75Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz QHD+ 2560x1600 @60Hz Video Timing 480P Resolution 576P...
Page 28 Troubleshooting The power LED is off. ● Press the monitor power button again. ● Check if the monitor power cable is properly connected. No image. ● Check if the computer graphics card is properly installed. ● Check if the computer and monitor are connected to electrical outlets and are turned on.
Page 29 ● Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ● If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device.
Page 30 ● If any of the following situations arises, get the device checked by service personnel: ● The power cord or plug is damaged. ● Liquid has penetrated into the device. ● The device has been exposed to moisture. ● The device does not work well or you can not get it working according to the User Guide.
Page 31 TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light.
Page 32 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com...
Page 33 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
Page 34 Copyright and Trademarks Notice Copyright © Micro-Star Int’ l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’ l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
Page 35 HDMI™ Logos are trademarks or registered trademarks of HDMI™ Licensing Administrator, Inc. Technical Support If a problem arises with your product and no solution can be obtained from the user’ s manual, please contact your place of purchase or local distributor. Alternatively, please visit https://www.msi.com/support/ for further guidance.
