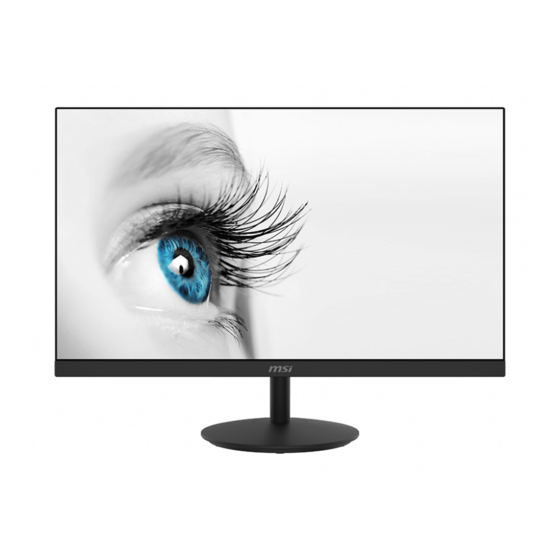

- Page 1 PRO Series LCD Monitor PRO MP271C (3PA8) PRO MP271CW (3PA8) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................7 OSD Setup ........................8 OSD Keys ........................ 8 OSD Menus........................10 Luminance ...................... -
Page 3: Getting Started
Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents PRO MP271C Monitor PRO MP271CW Documentation Quick Start Guide Stand Accessories... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective foam packaging. Align, insert and push the stand bracket towards the monitor groove until it locks in place. 2. In case of improper installation, push the release tab to release and reinstall the stand. -
Page 5: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. -3.5° +21.5° Getting Started... -
Page 6: Monitor Overview
Monitor Overview OSD Keys Power Button Kensington Lock Power Jack HDMI Port D-Sub VGA Port Headphone Jack Getting Started... -
Page 7: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Connect the power cord to the monitor power jack. (Figure A) 4. Plug the power cord into the electrical outlet. (Figure B) 5. -
Page 8: Osd Setup
OSD Setup ⚠ This chapter provides you with essential information on OSD Setup. Important All information is subject to change without prior notice. OSD Keys The monitor comes with a set of OSD Keys that help to control the On-Screen Display (OSD) menu. - Page 9 OSD Keys Hot Key (When OSD is OFF) OSD Setup (When OSD is ON) AUTO / ∙ Long press the button for ∙ Returning to the previous SOURCE / about 3 seconds to activate menu EXIT the Auto Adjustment ∙ Exiting from the OSD Main function to optimize the Menu horizontal/vertical position,...
-
Page 10: Osd Menus
OSD Menus Luminance 1st Level Menu 2nd Level Menu Description Contrast 0-100 ∙ Adjusting display contrast. This function is available in Standard mode. Brightness 0-100 ∙ Adjusting display brightness. This function is available in Standard mode. Eco Mode Standard ∙ Standard Mode Text ∙... -
Page 11: Image Setup
1st Level Menu 2nd Level Menu Description ∙ DCR enhances image quality by increasing the contrast of images. ∙ When DCR is enabled, Contrast, Brightness and Eco Mode cannot be adjusted and will be grayed out. ∙ When DCR is enabled, Color Temp. will be set to Warm. -
Page 12: Color Temp
1st Level Menu 2nd Level Menu Description V. Position 0-100 ∙ Adjusting the vertical position of the image (For VGA) Image Ratio Wide ∙ Selecting the Image Aspect Ratio Color Temp. 1st Level Menu 2nd Level Menu Description Warm (6500K) ∙... -
Page 13: Extra
1st Level Menu 2nd Level Menu Description Language English ∙ Selecting the OSD language Español Français Português Русский 简体中文 繁體中文 한국어 (More languages coming soon) Extra 1st Level Menu 2nd Level Menu Description Input Select Auto ∙ Selecting the video input source D-SUB HDMI DDC/CI... -
Page 14: Specifications
Specifications Monitor PRO MP271C, PRO MP271CW Size 27 inch Curvature 1500R Panel Type Resolution 1920 x 1080 Aspect Ratio 16:9 Brightness (nits) Contrast Ratio 4000:1 Refresh Rate 75Hz Response Time ∙ 1ms (MPRT) ∙ 5ms (GTG) ∙ HDMI Port x1 ∙... - Page 15 Monitor PRO MP271C, PRO MP271CW VESA Mounting ∙ Plate Type: 100 x 100 mm ∙ Screw Type: M4 x 10 mm • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm Dimension (W x H x D) 610.34 x 454.8 x 237 mm Weight 5.4 Kg (Net)
-
Page 16: Preset Display Modes
Preset Display Modes Standard Resolution HDMI D-Sub VGA 640x480 @60Hz @67Hz @72Hz @75Hz Dos-Mode 720x400 @70Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 832×624 @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280×720 @60Hz 1280×960 @60Hz 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz Full HD... -
Page 17: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 18: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 19 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 20: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 21: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 22 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 23 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
