Pressione massima di esercizio

Maximum operating pressure

Attacchi filettati

Threaded connections

Norma di riferimento

Reference standard

In conformità a

In conformity with

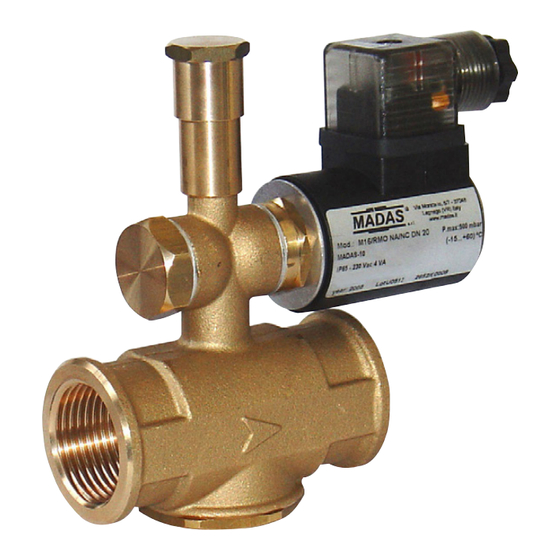

M16/RMO NA/NC

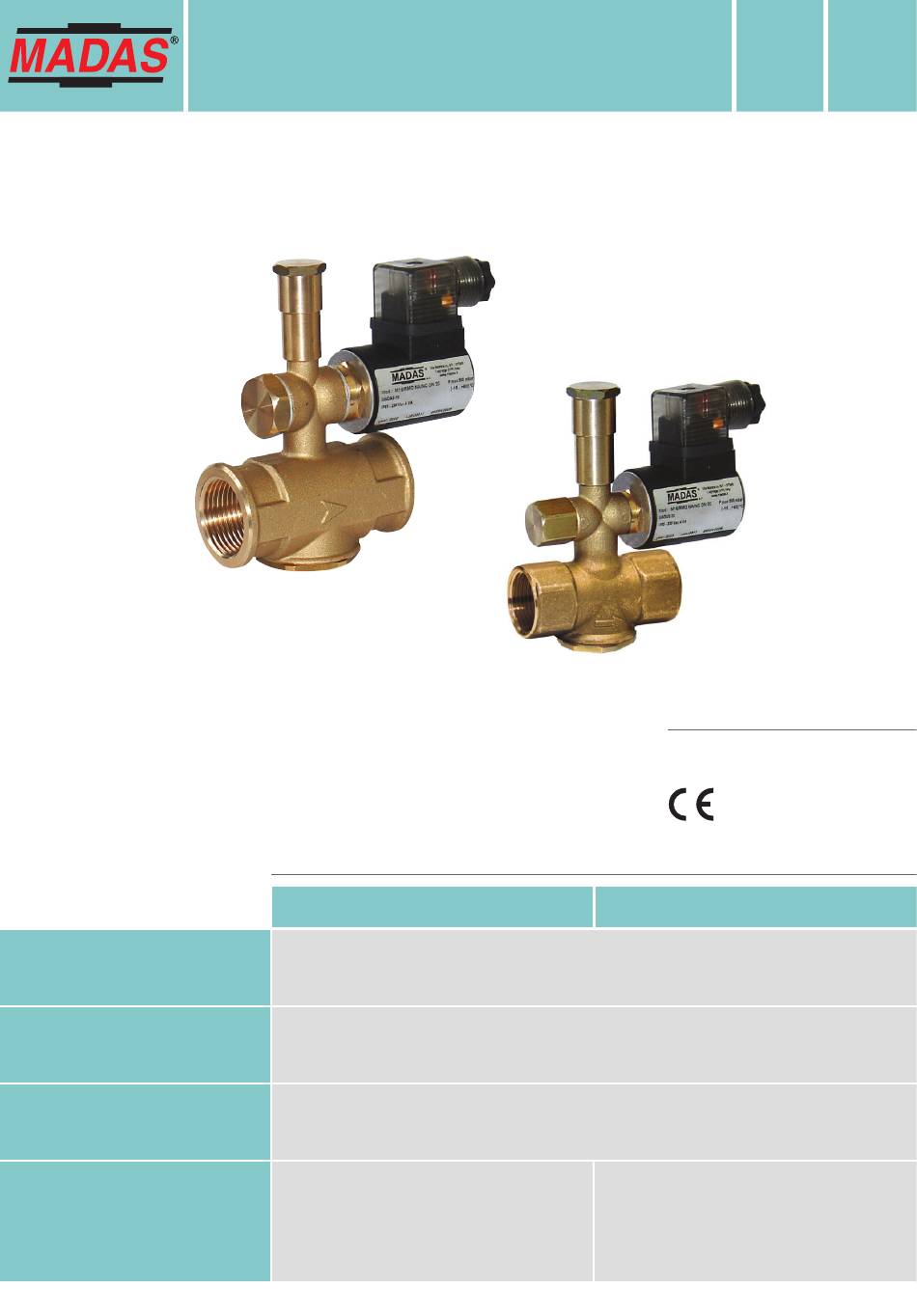

ELETTROVALVOLA A RIARMO MANUALE NORM. APERTA/CHIUSA PER GAS

NORMALLY OPEN/CLOSED MANUAL RESET SOLENOID VALVE FOR GAS

I T

E N

I T

DN 15 - DN 20 - DN 25

Regolamento (UE)

2016/426

Direttiva PED

2014/68/UE

Madas Technical Manual - 2|2.3 - REV. 0 of 10

CE-51BR3336

0051

0497

MADE IN ITALY

E N

F R

6 bar

EN 161

Regulation (EU)

2016/426

PED Directive

2014/68/EU

May 2018 - M16/RMO NA/NC

eCtion

hapter

2.3

E S
