MADAS
© 2004 MADAS s.r.l.
DESCRIZIONE
Questa elettrovalvola è costruita in modo tale da poter garantire l'intercettazione
del gas sia per segnalazioni di pericolo inviate da rivelatori presenza gas (metano,
gpl, ossido di carbonio e altri) o termostati di sicurezza, che per la mancanza di
tensione in rete (black out).
Per una maggior sicurezza questa elettrovalvola può essere riarmata solo in
presenza di tensione in rete e solo quando il rivelatore gas non dia segnalazioni
di pericolo.
Omologazione CE secondo EN 161
Conforme Direttiva 90/396/CEE (Direttiva Gas)
Versioni a 6 bar conformi alla Direttiva 97/23/CE (Direttiva PED)
Conforme Direttiva 94/9/CE (Direttiva ATEX)
Conforme Direttiva 89/336/CEE (Compatibilità Elettromagnetica)
Conforme Direttiva 73/23/CEE (Bassa Tensione)
CARATTERISTICHE TECNICHE
- Impiego
- Attacchi fi lettati (corpi ottone) : (DN 15 ÷ DN 25) secondo ISO 228/1
- Attacchi fi lettati
- Attacchi fl angiati PN 16
- Tensione di alimentazione
- Potenza assorbita
- Pressione max esercizio
- Temperatura ambiente
- Temperatura superfi ciale max : 80 °C
- Grado di protezione
- Classe
- Gruppo
- Tempo di chiusura
- Bobine: incapsulate in resina poliammidica caricata con fi bre di vetro con
attacco tipo DIN 43650; la classe di isolamento è la F (155°) ed il fi lo smaltato
è in classe H (180°)
Materiali
Alluminio pressofuso (UNI EN 1706), ottone OT-58 (UNI EN 12164), alluminio
11S (UNI 9002-5), acciaio zincato e acciaio INOX 430 F (UNI EN 10088), gomma
antiolio NBR (UNI 7702), ovatta sintetica
MADAS - Manuale Tecnico 2004 - Edizione 1
MADAS - 2004 Technical Manual - Ediction 1

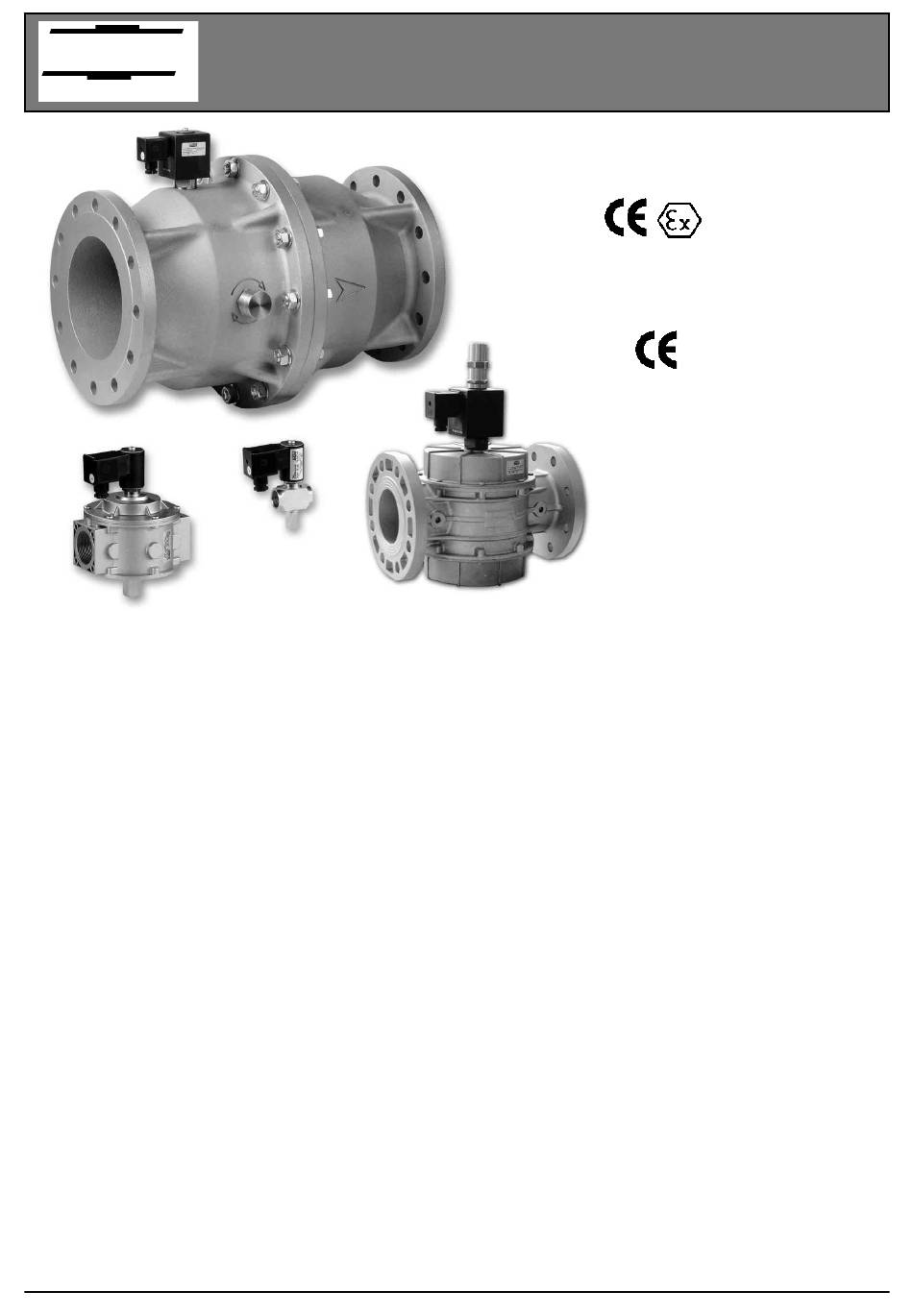

ELETTROVALVOLE A RIARMO MANUALE NORMALMENTE
CHIUSE TIPO M16/RM N.C. - M16/RMO N.C.
NORMALLY-CLOSED MANUAL RESET SOLENOID VALVES
: Gas non aggressivi delle 3 famiglie (gas secchi)
: (DN 20 ÷ DN 50) secondo ISO 7/1
: (DN 65 ÷ DN 200) secondo ISO 7005
: 12 V, 24 V, 110 V, 230 V
: vedi tabella
: 500 mbar o 6 bar (vedi etichetta prodotto)
: -15 ÷ +60 °C
: IP65
: A
: 2
: <1 s

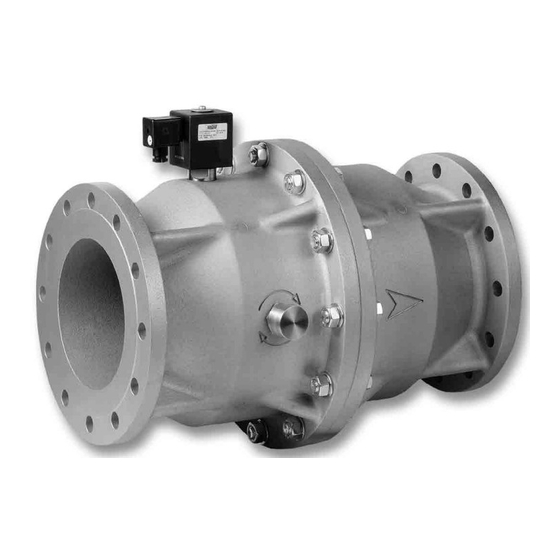

TYPE M16/RM N.C. - M16/RMO N.C.
M16/RM N.C. - M16/RMO N.C.
DESCRIPTION
This solenoid valve is made to guarantee the gas interception either for gas
detector signals (methane, lpg, carbon monoxide and so on) and safety ther-
mostats, or for an electric black out.
In order to be more reliable this solenoid valve can be reset only when electrically
supplied and only if the gas detector doesn't send any danger signal.
EC certifi ed according to EN 161
In conformity with the 90/396/EEC Directive (Gas Directive)
6 bar versions in conformity with the 97/23/EC Directive (PED Directive)
In conformity with the 94/9/EC Directive (ATEX Directive)
In conformity with the 89/336/EEC Directive (Electromagnetic Compatibility)
In conformity with the 73/23/EEC Directive (Low Voltage)
TECHNICAL DATA
- Use
- Threaded connections (brass body) : (DN 15 ÷ DN 25) according to ISO 228/1
- Threaded connections
- Flanged connections PN 16
- Power supply voltage
- Power absorption
- Max. working pressure
- Environment temperature
- Max superfi cial temperature
- Protection degree
- Class
- Group
- Closing time
Coils: poliammidic resin encapsulated with glass fi bre, connection type DIN
43650; the insulation class is F (155°) and the enamelled copper wire class is
H (180°)
Materials
Die-cast aluminium (UNI EN 1706), OT-58 brass (UNI EN 12164), 11S aluminium
(UNI 9002-5), galvanized and 430 F stainless steel (UNI EN 10088), NBR rubber
(UNI 7702), synthetical wadding
II 3G - II 3D
MADAS-04
0051
0497
: not aggressive gases of the 3 families (dry gases)
: (DN 20 ÷ DN 50) according to ISO 7/1
: (DN 65 ÷ DN 200) according to ISO 7005
: 12 V, 24 V, 110 V, 230 V
: see table
: 500 mbar or 6 bar (see product label)
: -15 ÷ +60 °C
: 80 °C
: IP65
: A
: 2
: <1 s
M16/RM N.C. - M16/RMO N.C.
