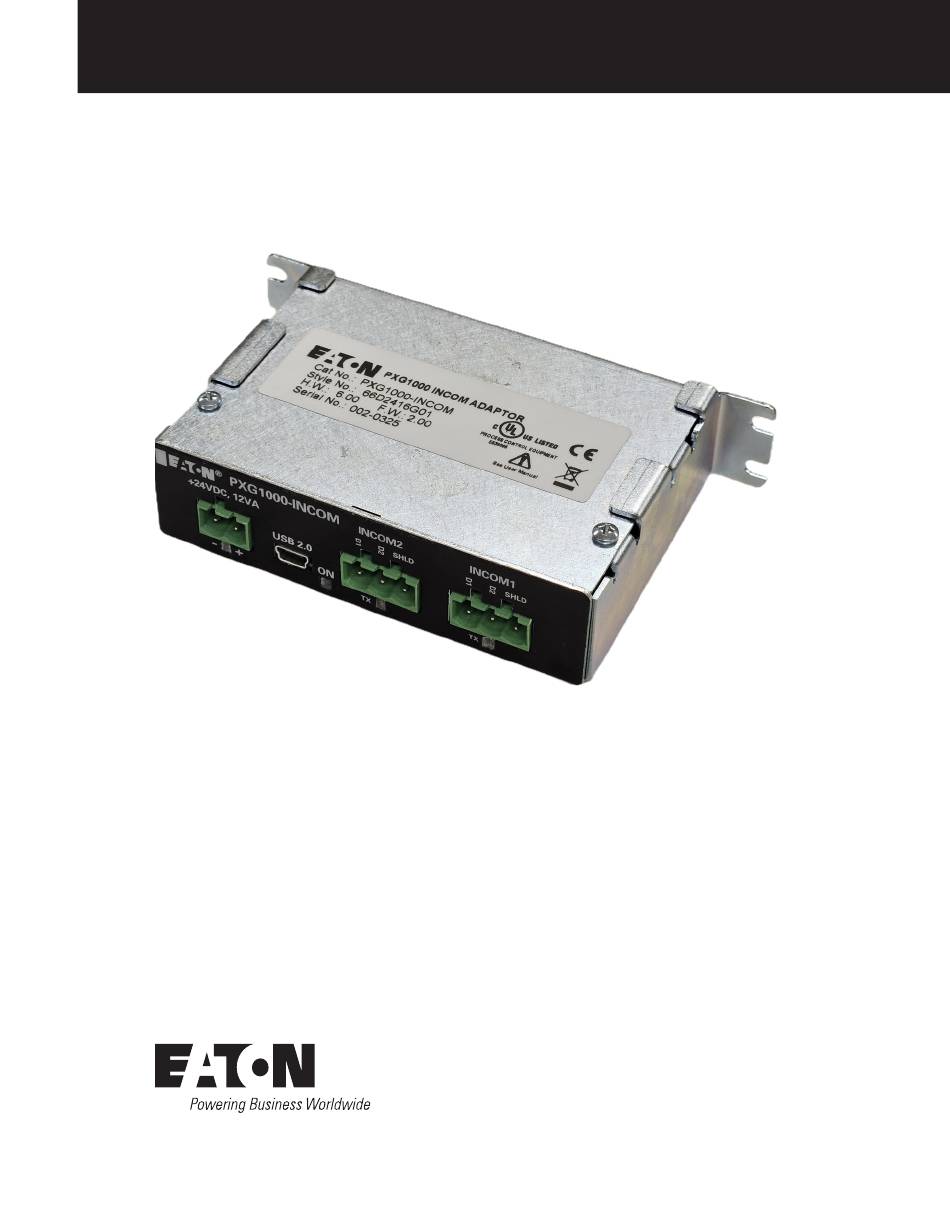

MN152272EN Effective May 2025 PXG1000 INCOM Communications Module Series PXG1000 INCOM Adapter...
Page 2
THE CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability, or other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to...
Page 4
DISCONNECT THE EQUIPMENT FROM THE SUPPLY . USE ONLY AUTHORIZED SPARE PARTS IN THE REPAIR OF THE EQUIPMENT . THE SPECIFIED MAINTENANCE INTERVALS AS WELL AS THE INSTRUCTIONS FOR REPAIR AND EXCHANGE MUST BE STRICTLY ADHERED TO PREVENT INJURY TO PERSONNEL AND DAMAGE TO THE SWITCHBOARD . PXG1000 INCOM Communications Module MN152272EN May 2025 www.eaton.com...
Page 5

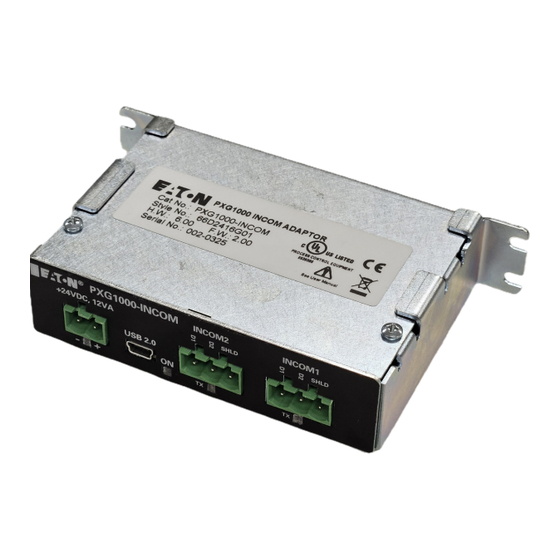

The PXG1000 INCOM Module provides a physical layer for an INCOM communications network when installed on a PXG1000 PDMC device. This enables INCOM communications to Eaton breaker, meter and relay products that communicate over an INCOM communication network. The PXG1000 INCOM Module has two INCOM network connections that are independent of one another.
Page 6
For single devices on an INCOM network, power from the USB interface is sufficient to power the PXG1000 INCOM Module. For large networks, an external +24VDC DC power supply must be used. Suggested DC power source: +24V DC / 2.5 Amp DIN rail mountable power supply (Eaton Cat # PSG60E) 5. Environmental Specifications Operation temperature: -20°C - +60°C •...
Page 7
7 . Installation of PXG1000 INCOM Module 7. Installation of PXG1000 INCOM Module See installation guide IL152007EN. PXG1000 INCOM Communications Module MN152272EN May 2025 www.eaton.com...
Page 8
Login using the designated username and password. • Step 2. Once logged in, expand the left side panel by clicking the 3 lines Once expanded locate the Settings button and click it • PXG1000 INCOM Communications Module MN152272EN May 2025 www.eaton.com...
Page 9
Select the Edit button to the right, to enable editing • Then click on the Devices tab • Step 4. Select Device Tree Step 5. From tbe different communication network options, click INCOM 1 Step 6. Select Add Device PXG1000 INCOM Communications Module MN152272EN May 2025 www.eaton.com...
Page 10
Pick your desired hardware from the selection dropdown • Step 9. Pick your desired hardware type from the “type” dropdown Then click the “choose an option” dropdown • Select “Communicating Device” • PXG1000 INCOM Communications Module MN152272EN May 2025 www.eaton.com...
Page 11
5. Ferrules for use in double connection point daisy-chain wiring are available (Weidmuller part 9004310000 [2-#18 AWG]). ote: For applications using the PXG1000 INCOM Module, INCOM cable lengths should be limited to 100ft (30 meters) when compliance to EN 61326 or En61000-6-2 is required. PXG1000 INCOM Communications Module MN152272EN May 2025 www.eaton.com...
Page 12
3. INCOM 2 TX/RX – any activity on the INCOM 2 transmit or receive will illuminate this LED. 4. Power- The power LED will illuminate when a +24 Volt power source is applied to the +24V input. PXG1000 INCOM Communications Module MN152272EN May 2025 www.eaton.com...
Page 13
The INCOM communications for the PXG1000 INCOM Module is based on a master (PXG1000 PDMC) – slave (Breaker, Meter, Relay device) set of protocols. For more comprehensive information on the INCOM communications protocol, please see the following reference material: IL17384 – Part A: INCOM Communications Standard PXG1000 INCOM Communications Module MN152272EN May 2025 www.eaton.com...
