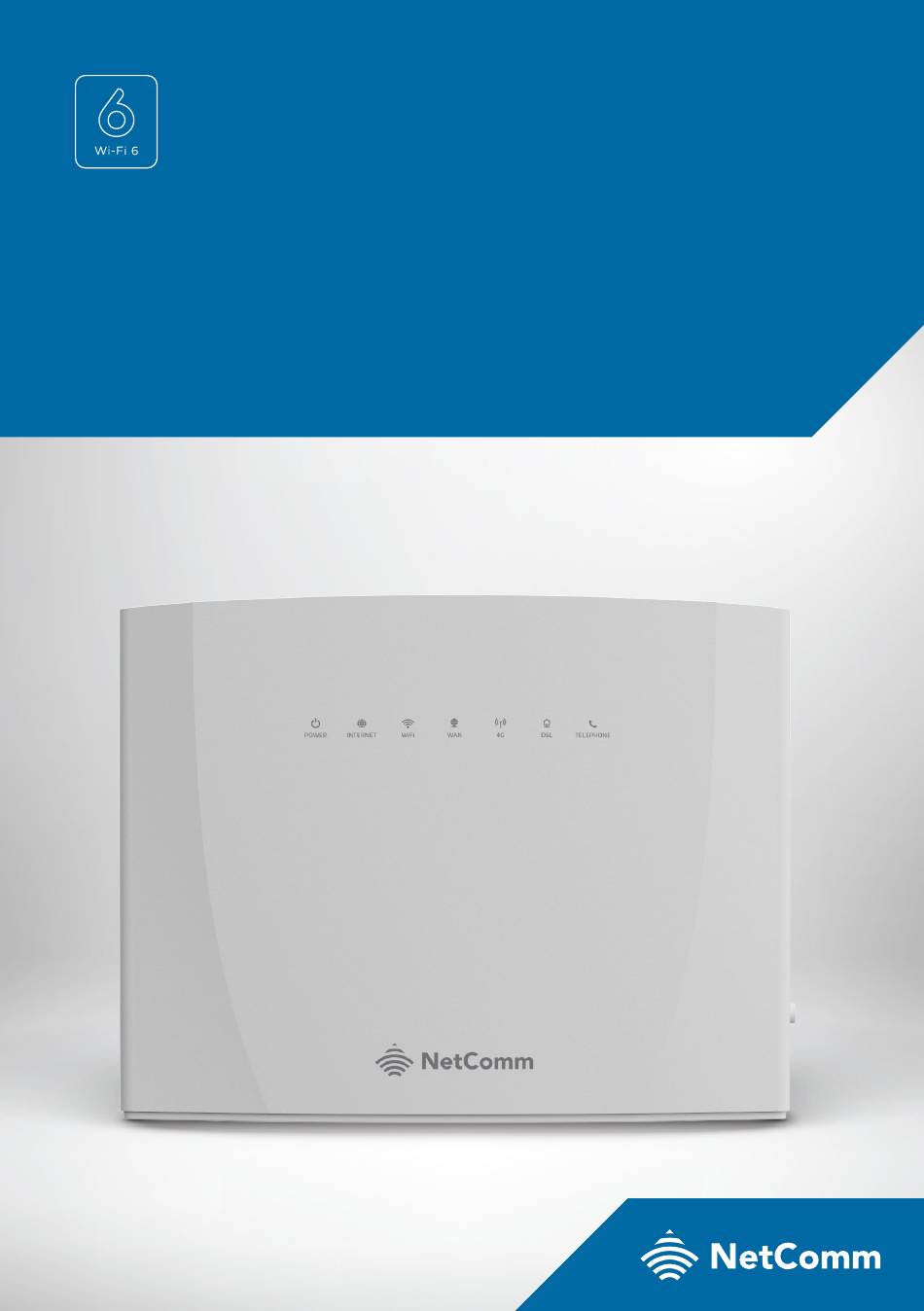

  • Page 1 Wi-Fi 6 HYBRID GATEWAY NL20MESH Quick Start Guide...
  • Page 2 NL20MESH Wi-Fi 6 HYBRID GATEWAY TABLE OF CONTENTS Getting online via the mobile network ����������������������������������������������������������������������������������3 Inserting a SIM Card ����������������������������������������������������������������������������������������������������������������4 Device placement ��������������������������������������������������������������������������������������������������������������������5 Connecting via nbn™ ��������������������������������������������������������������������������������������������������������������6 Getting online via 4G mobile network ����������������������������������������������������������������������������������7 Hybrid Fibre Coaxial (HFC) �����������������������������������������������������������������������������������������������������8 Fibre to the Premises (FTTP)���������������������������������������������������������������������������������������������������9...
  • Page 3 NL20MESH Wi-Fi 6 HYBRID GATEWAY The Wi-Fi 6 Hybrid Gateway can connect to a fixed line service and/or a mobile network. The gateway will prioritize fixed line connections over the 4G mobile network� If you have a fixed line service active and...
  • Page 4 NL20MESH Wi-Fi 6 HYBRID GATEWAY INSERTING A SIM CARD Insert the SIM card as shown below, noting the correct orientation of the card� 1� Push it in until you hear a click and it remains in place� 2� 3� To remove the card, push it in again and then remove it�...
  • Page 5 For the best Wi-Fi network performance, the gateway should be placed in a central location (e�g� in a room in a middle of your home)� If a larger area needs Wi-Fi coverage, the NetComm CloudMesh Satellite (NS-02) is designed to expand your Wi-Fi network coverage and is available as an optional accessory�...
  • Page 6 NL20MESH Wi-Fi 6 HYBRID GATEWAY CONNECTING VIA NBN™ Your nbn™ internet service provider will contact you when your service is activated� You can set up your gateway before this time, if you have the required nbn™ hardware� Once your service is activated, it’s time to complete the set-up...
  • Page 7 NL20MESH Wi-Fi 6 HYBRID GATEWAY GETTING ONLINE VIA 4G MOBILE NETWORK This device allows you to access the internet independently from an NBN or UFB connection using a 4G Mobile network� For this you will need a SIM card with a pre-paid or post paid mobile plan and a sufficient data allowance.
  • Page 8 NL20MESH Wi-Fi 6 HYBRID GATEWAY HYBRID FIBRE COAXIAL (HFC) Ethernet The Ethernet cable connects Cable to the UNI-D port on the nbn™ connection box� nbn™ Connection Box Power Outlet Power Supply Unit (PSU)
  • Page 9 NL20MESH Wi-Fi 6 HYBRID GATEWAY FIBRE TO THE PREMISES (FTTP) Please connect the ethernet cable to UNI-D port 1� This is the default port for nbn™� If your nbn™ does not connect after 2 minutes then please try the next port�...
  • Page 10 NL20MESH Wi-Fi 6 HYBRID GATEWAY FIBRE TO THE CURB (FTTC) Wait for the lights on the nbn™ connection box to turn blue (this may take up to 15 minutes) and then connect your Wi-Fi 6 Hybrid Gateway� The Ethernet cable connects to the UNI-D port on the nbn™...
  • Page 11 NL20MESH Wi-Fi 6 HYBRID GATEWAY TELEPHONE CONNECTION Telephone Cable Power Outlet Telephone Handset Power Supply Unit (PSU)
  • Page 12 NL20MESH Wi-Fi 6 HYBRID GATEWAY CONNECTING TO THE Wi-Fi 6 HYBRID GATEWAY Button Wi-Fi Security Card There are two ways that you can connect to Wi-Fi. Perform a manual network scan 1� Using your smartphone or tablet 2� camera, scan the QR code on the from your device and select the gateway’s label or Wi-Fi Security...
  • Page 13 NL20MESH Wi-Fi 6 HYBRID GATEWAY CONFIGURING YOUR GATEWAY To complete the setup, you will need the following information from your service provider: Internet service type (ADSL/VDSL/Ethernet WAN)� › Connection type (PPPoE/PPPoA/Dynamic IP/Static IP)� › Other specifics depending on your connection type including 802.1P priority, ›...
  • Page 14 NL20MESH Wi-Fi 6 HYBRID GATEWAY TROUBLESHOOTING TIPS If you are experiencing difficulties with your internet connection, please try the following: 1� Power the gateway off� Check that the cables have been plugged in correctly� 2� After 2 minutes, power on the gateway again�...
  • Page 15 Surrey Hills VIC 3127 Sydney Australia Melbourne Australia Trademarks and registered trademarks are the property of NetComm Wireless Pty Ltd or their respective owners. Specifications are subject to change without notice. Images shown may vary slightly from the actual product. www.netcomm.com MPRT-00100-000_NL20MESH QSG_Rev2...
