This Owner's Manual is provided and hosted by Appliance Factory Parts.
Grand Hall BRG08A010
Owner's Manual
Shop genuine replacement parts for Grand Hall
BRG08A010
Find Your Grand Hall Grill Parts - Select From 203 Models
-------- Manual continues below --------
Advertisement
Related Manuals for Grandhall GLOBECAFE BRG08A010
Summary of Contents for Grandhall GLOBECAFE BRG08A010

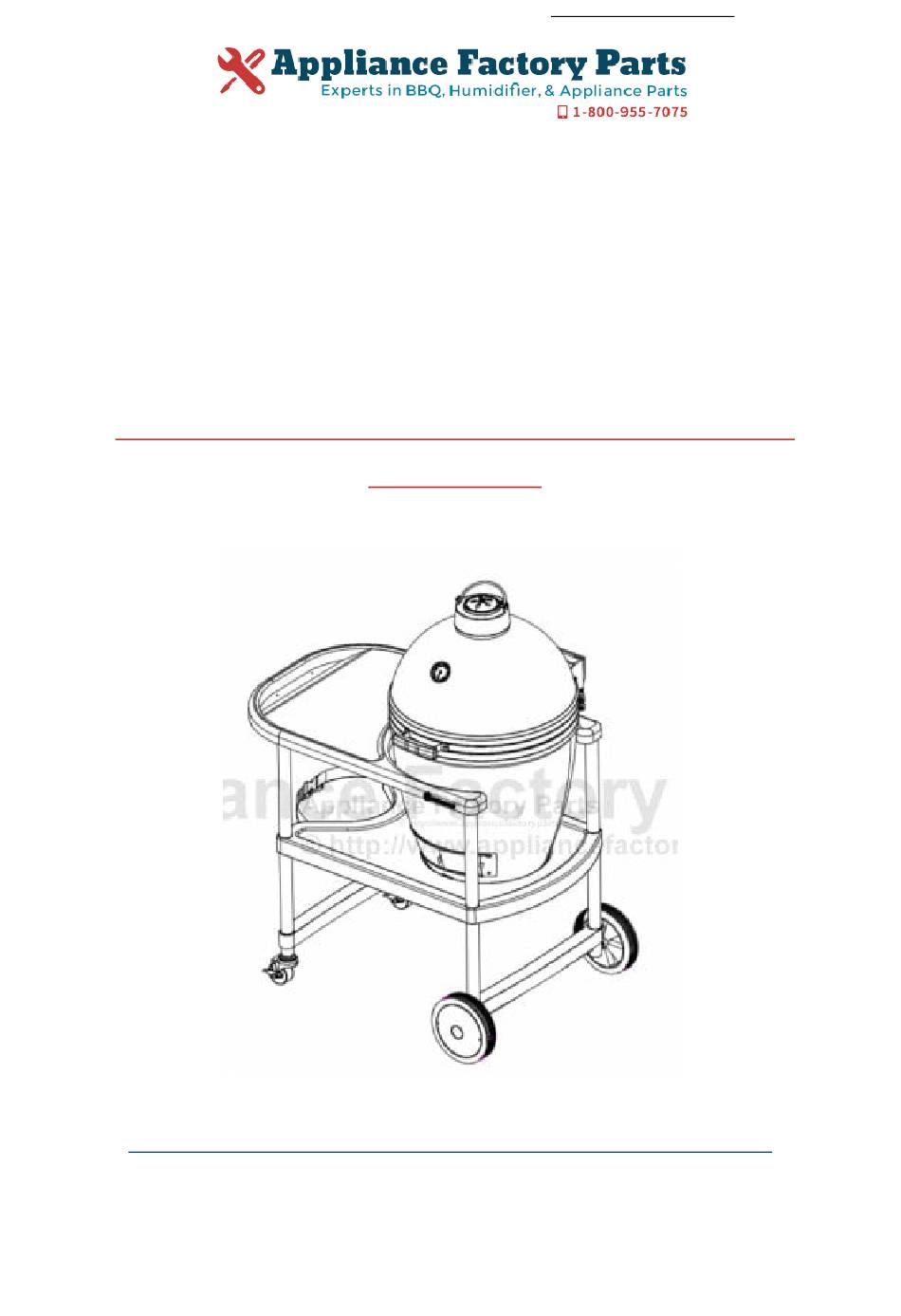

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Grand Hall BRG08A010 Owner's Manual Shop genuine replacement parts for Grand Hall BRG08A010 Find Your Grand Hall Grill Parts - Select From 203 Models -------- Manual continues below --------...
- Page 2 Ÿ Obtain assistance from another person when han- Ÿ Replacement of Damaged or Missing parts dling the large or heavy pieces. visit www.grandhall.com or call: Ÿ Some parts may contain sharp edges, wear pro- tective work gloves if necessary. 1-877-934-7455 Ÿ...
- Page 3 Table of Contents DANGER Primary Safety Warnings ......1-3 Ÿ Part Diagrams and Lists ......4-6 Never allow children to operate your Globe Café Do Assembly Instructions.......7-11 not allow children or pets to play near your Globe Use & Care Instructions: Café...
- Page 4 Pre-Assembly Instructions For Your Safety You may slice the carton front corners with a utility knife to lay open the carton front panel. This allows PRE-ASSEMBLY you to raise the Lid and remove the components packed inside, making it easier to lift. Do not cut into Read and perform the following pre-assembly inner packing material, or you may risk damaging the instructions:...
- Page 5 Hardware Pack Parts List for Model BRG08A010 PART # PART DESCRIPTION PURPOSE OF PART P06006070A Hardware Pack For use in assem bly for Model BRG08A010 S162G04082 Hex Head Screw 1/4"x1/2" Install Cart Legs to Cart Bottom Shelf S162G04082 Hex Head Screw 1/4"x1/2" Install Cross Braces S162G04082 Hex Head Screw 1/4"x1/2"...
- Page 6 Parts Diagram for Model BRG08A010...
- Page 7 Parts List for Model BRG08A010 PART DESCRIPTION PART # Vent Lid Handle P00210020C Vent Lid Air Shutter P069200014 Vent Lid Air Shutter Bracket P069210016 Vent Lid P069210026 Lid Assem bly P0015002R2 Temperature Gauge P00601391A Lid Handle Bracket P033280724 Heat Insulating Spacer P00209001A Lid Handle P00209002A...
- Page 8 Assembly Instructions CAUTION: While it is possible for one person to assemble this cooker, obtain assistance from another person when handling some of the larger, heavier pieces. Insert 4 Cart Legs into Cart Bottom Shelf Insert 4 Cart Legs into the Cart Bottom Shelf as shown. (NOTE: The Right Cart Legs go into the side of the cart with the rounded edge.
- Page 9 Install Cart Cross Brace and Casters onto Left Cart Legs Position the Cart Cross Brace so that the slightly rounded, arc surface is facing towards the outside as shown below. Install the Cart Cross Brace over the 2 Left Cart Legs. Align the 2 holes on the Cart Cross Brace with the 2 holes on the Right Cart Legs.
- Page 10 Place Globe Café onto the Cart. Secure the Charcoal Pail (not included in this unit) to the Cart Remove all components from the inside of the Globe Café. Lock the brakes on the 2.5" Casters. With the help of your assistant, lift and support the Globe Café from the base and place it into the cut out on the Cart as shown.
- Page 11 Option: Using the Globe Café without a Cart If you are using the Globe Café without a cart, make sure to select a clear area with a flat, even ground. If you want to place the Globe Café onto a wooden deck, use a flat stone slab to prevent damage to the wood.
- Page 12 Assembly and Use Instructions for Bowl Air Door Note: The Ash Protector prevents ashes from flying out of the open Air Door. Refer to the directions below for using the Air Door and removing ash from the cooker. Removing and Installing the Ash Protector for Cleaning 1.
- Page 13 USE AND CARE INSTRUCTIONS Cooking on the Globe Café STARTING A FIRE We recommend that you use lump charcoal and fire The Globe Café is an extremely versatile cooler. You can starters in your cooker for the best results. Never use roast, smoke, bake, or grill in it.
- Page 14 USE AND CARE INSTRUCTIONS Checking the Lid Hinges and Hardware: CLEANING AND MAINTENANCE Periodically check the Lid Hinge Assembly to make Proper care and maintenance will keep your cooker in top sure that the hinges are tight. Periodically check the Lid operating condition and prolong its life.
- Page 15 2 Year Limited Warranty for All Other Cooker Parts Grand Hall will require reasonable proof of your date of purchase. Therefore, you will need to send in the owner registration card or register online at www.grandhall.com. Save your receipt in case it is required for warranty processing.
