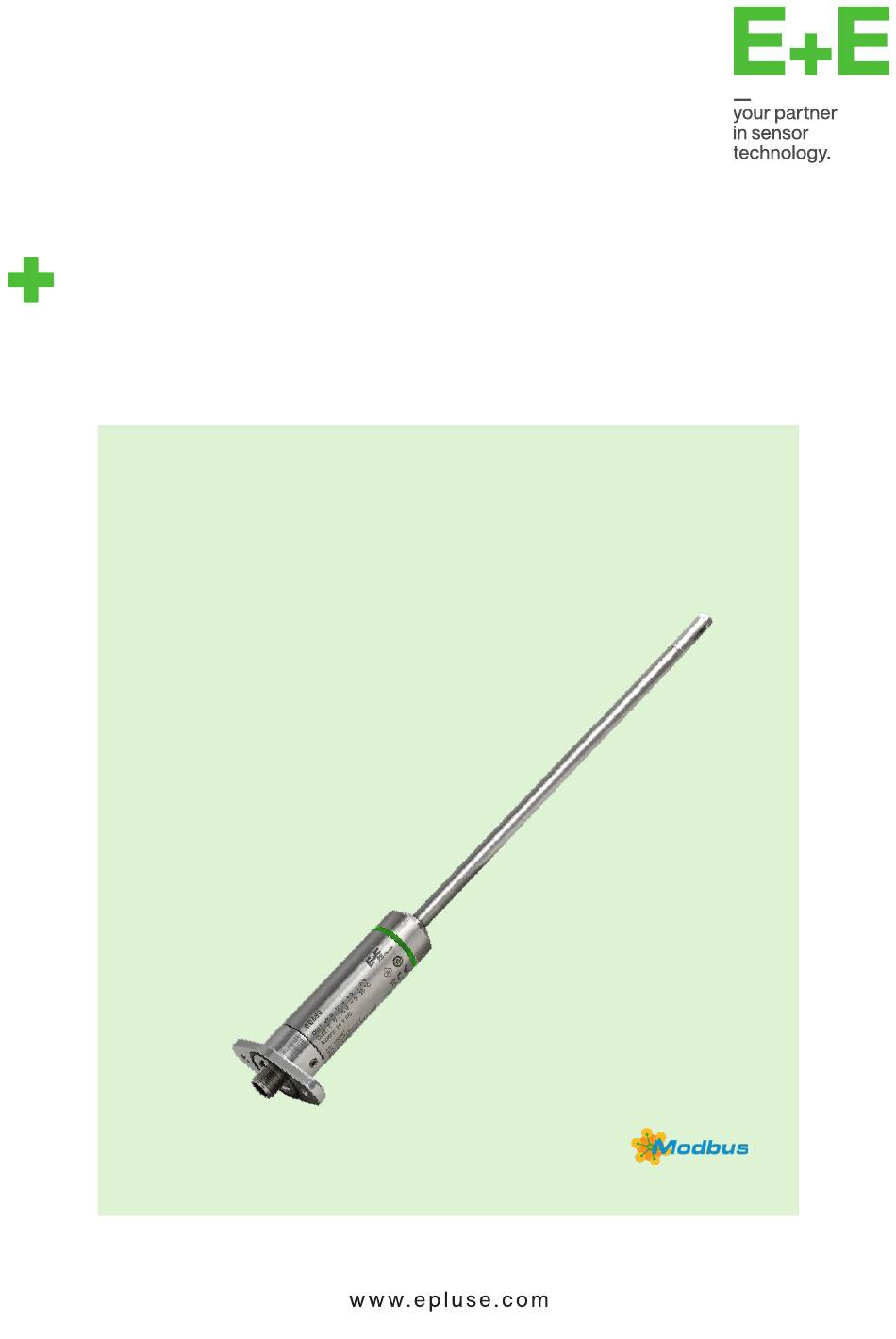

- Page 1 User Manual EE680 Air Velocity and Temperature Sensor for Laminar Flow...
-
Page 2: Table Of Contents
General Information on 1-Point vn/T Adjustment ..................... 17 7.1.2. General Information on 2-Point vn/T Adjustment ..................... 18 Adjustment with PCS10 ..........................18 Calibration and Adjustment at E+E Elektronik ...................18 Accessories ..............................18 Technical Data ..............................19 Conformity ................................20 10.1 Declarations of Conformity ........................20 10.2 Electromagnetic Compatibility ........................20... -
Page 3: General Information
All rights are reserved by E+E Elektronik Ges.m.b.H. No part of this document may be reproduced, published or publicly displayed in any form or by any means, nor may its contents be modified, translated, adapted, sold or disclosed to a third party without prior written permission of E+E Elektronik Ges.m.b.H. -
Page 4: Safety Instructions
The manufacturer is not liable for any damage caused by improper handling, installation and maintenance of the device. The use of the EE680 in any other way than described in this manual bears a safety risk for people and the entire measurement installation and is therefore not allowed. -
Page 5: Scope Of Supply
A faulty device may only be investigated and possibly repaired by qualified, trained and authorised staff. If the fault cannot be fixed, the device shall be removed from the process. 2 Scope of Supply ▪ EE680 – Air Velocity and Temperature Sensor for Laminar Flow (with protection cap) ▪ EE680 stainless steel mounting flange ▪... -
Page 6: Product Description
The probe reliably measures air velocity down to 0.1 m/s (20 ft/min). The EE680 is available in straight and angled versions, with various lengths. All variants provide an optical status indication - see chapter 6.3. - Page 7 User Manual EE680 M12x1 Ø25 (0.3) 9.7 (0.4) 300 (11.8) Fig. 2 EE680 angled probe Ø5.5 (0.22) Ø18...20 (0.71...0.79) drilling diameter 40 (1.6) 56 (2.2) Fig. 3 Mounting flange for EE680 Air Velocity and Temperature Sensor for Laminar Flow | 7...
-
Page 8: Electrical Connection
Pin 5 GND (=LOW) Analogue Analogue 1) For configuration purposes, during the first 10 seconds after power on, the EE680 awaits connection with the PCS10 Product Configuration Software. Tab. 2 Function of the configuration pin (pin 5 of M12 connector) The “default output”... -
Page 9: Probe Mounting
User Manual EE680 4 Probe Mounting The EE680 can be mounted on walls, ceilings or inside safety workbenches. Fig. 4 and Fig. 5 show the principal probe mounting alternatives, depending on the probe type. Fig. 4 EE680 mounting on a wall Fig. - Page 10 Remove the sensor protection cap before commissioning. PLEASE NOTE For best measuring accuracy, the sensing element of the EE680 must be aligned exactly in the direction of the laminar flow in which factory adjustment took place. The factory adjustment direction is indicated by an arrow symbol on the sensor tip. The arrow on the sensor probe shall be pointing exactly in the direction of the laminar air flow.
-
Page 11: Setup And Configuration
User Manual EE680 5 Setup and Configuration The EE680 is ready to use and does not require any configuration by the user. The EE680 factory setup corresponds to the specified order code. Please refer to the data sheet at www.epluse.com/ee680. If needed, the factory setup can be changed. -
Page 12: Digital Interface Rs485 With Modbus Rtu Protocol
1) Register number starts from 1. 2) Protocol address starts from 0. 3) Number of registers 4) For Modbus address and protocol settings see Application Note Modbus AN0103 (available at www.epluse.com/ee680). Tab. 4 EE680 registers for device setup Air Velocity and Temperature Sensor for Laminar Flow | 12... -
Page 13: Modbus Register Map
EE680 FLOAT32 and INT16 measured data registers Device Status Indication The EE680 features a status register that contains all status and error information. The status information can be read from Modbus register 602 (0x259). Errors are displayed in bit-coded form. If an event is present, the corresponding bit is set to 1. -
Page 14: Modbus Rtu Example
▪ MODBUS APPLICATION PROTOCOL SPECIFICATION V1.1b3, chapter 6: www.modbus.org/docs/Modbus_Application_Protocol_V1_1b3.pdf ▪ E+E Application Note Modbus AN0103 (available at www.epluse.com/ee680) Read the standardised air velocity (FLOAT32) vn = 0.4581840038299560546875 m/s from register address 1045 (0x414) with function code 0x03: Master (e.g. PLC) -
Page 15: Maintenance And Service
7. Cleaning The EE680’s materials (probe and sensor head made of stainless steel 1.4404) has been optimised to provide the best possible resistance to H sterilisation processes and corrosive cleaning agents. -
Page 16: Optical Status Indication With Led Ring
Red flashing Failure, return sensor to E+E for investigation Tab. 10 Meaning of LED ring indication On delivery, the EE680 monitors the flow using the factory preset values according to Tab. 11. Low threshold High threshold Standardised air velocity vn... -
Page 17: Error Indication On The Analogue Output (Namur)
7 vn / T Calibration and Adjustment The EE680 can be calibrated / adjusted with the help of the PCS10. For this purpose, the probe needs to be connected to a PC via a Modbus configuration adapter. Definitions ▪... -
Page 18: General Information On 2-Point Vn/T Adjustment
Please follow the instructions from the PCS10 Product Configuration Software. Calibration and Adjustment at E+E Elektronik Calibration and/or adjustment can be performed in the E+E Elektronik calibration laboratory. For information on the E+E capabilities in ISO 17025 or accredited calibration please see www.eplusecal.com. -
Page 19: Technical Data
0 - 5 V / 0 - 10 V -1 mA < I < 1 mA 0 - 20 mA (3-wire) / 4 - 20 mA (3-wire) Load resistance ≤ 350 Ω Digital Digital interface RS485 (EE680 = 1/10 unit load) Protocol Modbus RTU Factory settings 9 600 Baud, 8 data bits, parity even, 1 stop bit, Modbus address 68 Supported Baud rates 9 600, 19 200, 38 400, 57 600, 76 800 and 115 200 Measured data types... -
Page 20: Conformity
User Manual EE680 10 Conformity 10.1 Declarations of Conformity E+E Elektronik Ges.m.b.H. hereby declares that the product complies with the respective regulations listed below: European directives and standards. UK statutory instruments and designated standards. Please refer to the product page at www.epluse.com/ee680... - Page 21 Tab. 14 Recycling of EE680 probe PLEASE NOTE Fig. 10 shows the stainless steel mounting flange which is not an integral part of the EE680 probe. Please refer to the section below for recycling instruction. Flange Stainless Steel Mounting Flange Text Fig.
- Page 22 T +39 02 2707 86 36 info.it@epluse.com E+E Elektronik Korea Ltd. T +82 31 732 6050 info.kr@epluse.com E+E Elektronik Corporation T +1 847 490 0520 info.us@epluse.com BA_EE680 | Version v1.2 | 06-2025 © Copyright E+E Elektronik Ges.m.b.H. | All rights reserved.
