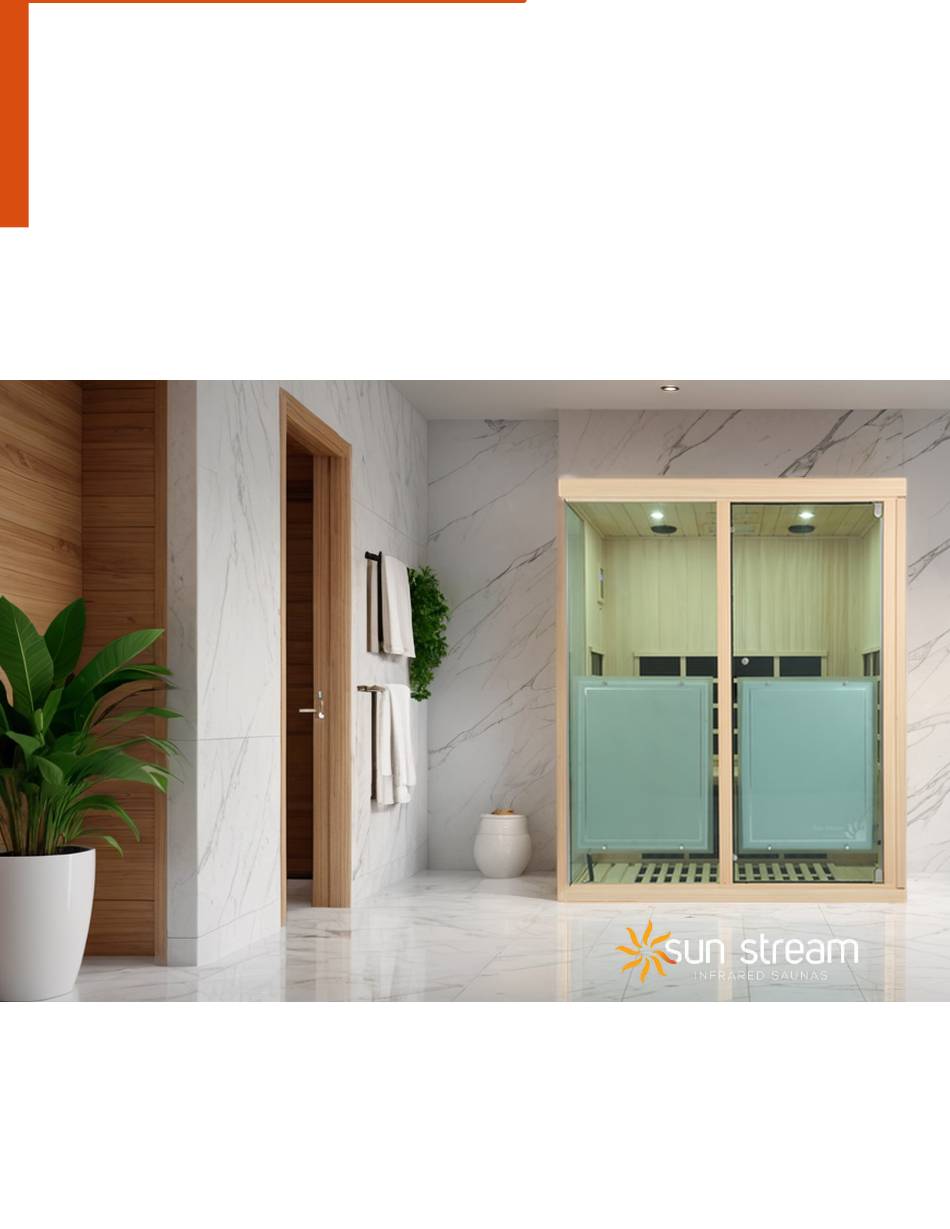

- Page 1 ASSEMBLY MANUAL Evolve 30 EHS Far Infrared Sauna...
- Page 2 Pre-Assembly Checklist Selecting a suitable location Place your sauna on a flat level surface. The sauna can be placed on carpet, tiles, timber flooring, concrete or any other hard, level surface. A 200mm void above the sauna is required to allow access into the roof, should a lighting or audio part need replacing at some point in the future.
- Page 3 Prepare & Position the Sauna Floor The sauna needs to be level to ensure the glass door closes flush and tight. Many floors may look level but are actually not. To ensure the sauna will be level once built, before starting any assembly, first place the floor base in its intended final location and check it is level using a spiritual level.
- Page 4 Position the Back Wall Lift the back wall into position carefully lowering the bottom of the wall into the channel on the floor base. Position Right Side Wall Lift the Right side wall into position wedging the bottom of the wall into the channel in the floor base.
- Page 5 Back Right Corner Wall Cinch the Right Side wall and the Back wall together by applying pressure on the outside of the Side wall. Slide the Right Side wall upward approx. 1/2” while holding the back wall down NOTE: It is NOT necessary to lift the entire Side Wall.
- Page 6 There are two sets of fasteners to join the saunas' corners together. After lowering the Side Wall, check to ensure that both sets of fasteners have connected by looking at the corner inside of the sauna. It is possible to connect one set of fasteners and miss the other. If there is an obvious gap in the corner between the two walls at least one fastener has not connected and the raising and lowering procedure will need to be repeated.
- Page 7 NOTE: After installing the Back and 2 Side Walls, you may want to slide the sauna back into its final position before proceeding with Front Wall and Roof. It may be helpful to insert the main power cord through the hole in Back Wall before sliding the sauna back against your homes wall.
- Page 8 Connect door heater electrical lead to the floor base. NOTE: Be sure that the wire's connector is fully inserted into the floor base connector and that the threaded cuff is fully screwed on to the floor base connector. Secure the Right Wall Side Wall Use the supplied wood screw and the pre-drilled hole to secure the Right Side Wall to the Front...
- Page 9 Prepare to install the sauna roof Pull the single plastic connector down and out of the roof before lifting the roof into place. If you are unable to grab hold of the connector through the small opening in the ceiling, it may be necessary to remove the first T&G board on the top left side of the roof and feed the connector down through the opening.
- Page 10 Side Wall Glass Install Side Wall glass panel. Glass etching is intended to face inward. IMPORTANT For temporary purposes, insert a foot or two of the flexible plastic strip on the inside of the Side Wall glass panel. This will hold the glass panel in place and assist in the following assembly steps.
- Page 11 Install Front Wall Glass Panel Carefully insert the bottom edge of the Front Wall glass panel into the slot in the Floor base. The Front Wall glass panel must be positioned so that the heater panel is fitting inside of the Side Wall glass panel.
- Page 12 Lower the Roof so that the Front Wall glass panel fits into the Roof slot. Install Corner Seal Firmly press the corner seal on to the Remove the temporary plastic glazing strip edge of the Front Wall glass panel from the inside of Side Wall glass panel UK &...
- Page 13 Firmly press flexible glazing strip into wood channels along the outside of the Side and Front Wall glass panels. It may not be necessary to use the flexible glazing for the full height of the glass panels. Use the glazing strip where it fits into the channels. Small wooden block (included) can be used to fully press the glazing strip into channel...
- Page 14 Under-Bench Electrical NOTE: Do not connect main power cord to your wall outlet yet at this time. Connect the circular connector to power supply box. Align the groove in connector to properly insert. Thread the cuff of the connector on fully. Attach the 'D-Sub' computer style connector as shown Plug in all heater leads to...
- Page 15 Feed the main power supply cord in through the hole in Back Wall and insert in power supply box. Do NOT plug power cord into your wall outlet until all electrical connections are finished inside of the sauna. Connect circular connectors for the 2 Front Wall heaters. Thread the cuff of connectors on fully.
- Page 16 Remove Side Wall Heater Guards The wooden lattice work in front of the heaters is referred to as the heater guard. These are held on with strong magnets. It is necessary to remove the heater guards from the two side walls in order to install the leg heater and the sauna bench.
- Page 17 Connecting the ground wire Install Bench Angle the Bench into place to clear the Side Wall window frames. The Bench installs foil side down. Connect the grounding wire from bottom side of Lower the Bench into Position Bench as shown UK &...
- Page 18 Install Bench The bench in your new sauna is reversible. Choose whichever side appeals to you to face upward. Reinstall the side wall heater guards Install the door handle UK & Europe - +44 (0) 800 86 11 841...
- Page 19 Heater Guards The heater guards in your new sauna are held in place to the wall with strong magnets. This allows easy removal for cleaning of the heater panels behind. It is not necessary, and it is NOT recommended, however if you prefer, the heater guards can be screwed directly to the wall for a more permanent attachment.
- Page 20 Optional only Drill a pilot hole into the wall through the holes in the heater guards. Do not drill deeper than necessary for the length of the screw. NOTE: The pilot holes are important to ensure that the tongue and groove wall boards do not split when installing screws.
- Page 21 Option-L Movable Bench Assembly Connect bench legs to the inside Ensure that the legs' ends are flush corners of the frames using supplied with the bottom edge of the frames wood screws. Attach the leg assembly to the bottom of the bench surface.Choose which surface of the bench you prefer to be the top and bottom.
- Page 22 Accessories Backrests Your new Sun Stream Sauna comes equipped with backrests constructed from Western Red Cedar. Position the backrest as pictured to provide lower back support and to position yourself a comfortable distance from the Infrared heater panels. Cupholder Many of our customers simply set the cup holder on the bench of the sauna.
