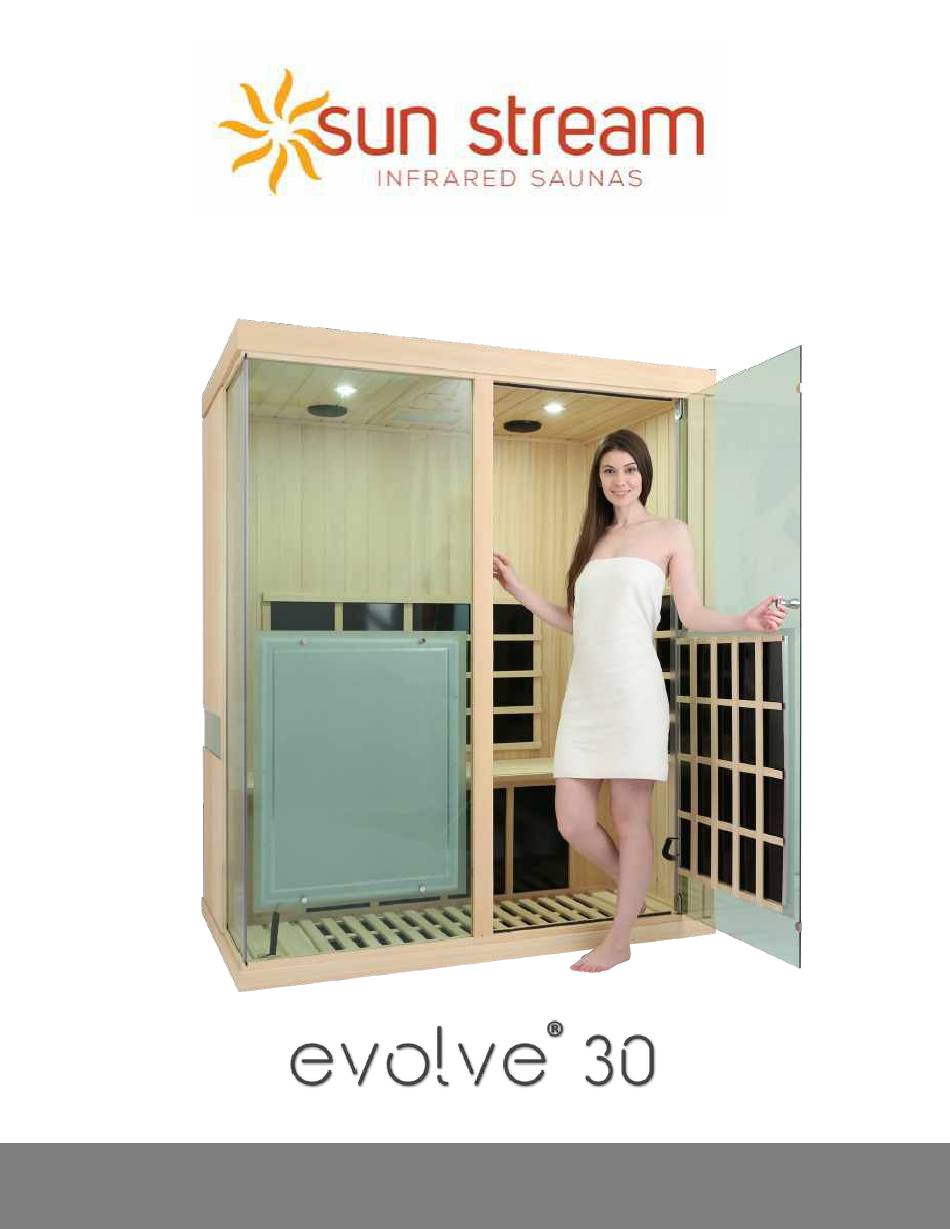

  • Page 1 Assembly Manual Australia - 1800 316 962 | New Zealand 0800 21 8020...
  • Page 2 Prepare & Position the Sauna Floor If you are assembling your sauna on a hard surface floor it is recommended that you apply the included adhesive felt to the bottom of the sauna floor. Place the sauna floor in the desired location. It is necessary to position the floor out from your walls for assembly and move the sauna following assembly.
  • Page 3 Position the Back Wall Lift the back wall into position carefully lowering the bottom of the wall into the channel on the floor base. Position Right Side Wall Lift the Right side wall into position wedging the bottom of the wall into the channel in the floor base.
  • Page 4 Back Right Corner Wall Cinch the Right Side wall and the Back wall together by applying pressure on the outside of the Side wall. Slide the Right Side wall upward approx. 1/2” while holding the back wall down NOTE: It is NOT necessary to lift the entire Side Wall.
  • Page 5 There are two sets of fasteners to join the saunas' corners together. After lowering the Side Wall, check to ensure that both sets of fasteners have connected by looking at the corner inside of the sauna. It is possible to connect one set of fasteners and miss the other.
  • Page 6 NOTE: After installing the Back and 2 Side Walls, you may want to slide the sauna back into its final position before proceeding with Front Wall and Roof. It may be helpful to insert the main power cord through the hole in Back Wall before sliding the sauna back against your homes wall.
  • Page 7 Connect door heater electrical lead to the floor base. NOTE: Be sure that the wire's connector is fully inserted into the floor base connector and that the threaded cuff is fully screwed on to the floor base connector. Secure the Right Wall Side Wall Use the supplied wood screw and the pre-drilled hole to secure the Right Side Wall to the Front...
  • Page 8 Prepare to install the sauna roof Pull the single plastic connector down and out of the roof before lifting the roof into place. If you are unable to grab hold of the connector through the small opening in the ceiling, it may be necessary to remove the first T&G board on the top left side of the roof and feed the connector down through the opening.
  • Page 9 Side Wall Glass Install Side Wall glass panel. Glass etching is intended to face inward. IMPORTANT For temporary purposes, insert a foot or two of the flexible plastic strip on the inside of the Side Wall glass panel. This will hold the glass panel in place and assist in the following assembly steps.
  • Page 10 Install Front Wall Glass Panel Carefully insert the bottom edge of the Front Wall glass panel into the slot in the Floor base. The Front Wall glass panel must be positioned so that the heater panel is fitting inside of the Side Wall glass panel. Carefully tilt the front edge of the Roof upward, about 1/2", just enough to tilt the Front Wall Glass in to position...
  • Page 11 Lower the Roof so that the Front Wall glass panel fits into the Roof slot. Install Corner Seal Firmly press the corner seal on to the Remove the temporary plastic glazing strip edge of the Front Wall glass panel from the inside of Side Wall glass panel Australia - 1800 316 962 | New Zealand 0800 21 8020...
  • Page 12 Firmly press flexible glazing strip into wood channels along the outside of the Side and Front Wall glass panels. It may not be necessary to use the flexible glazing for the full height of the glass panels. Use the glazing strip where it fits into the channels. Small wooden block (included) can be used to fully press the glazing strip into channel...
  • Page 13 Under-Bench Electrical NOTE: Do not connect main power cord to your wall outlet yet at this time. Connect the circular connector to power supply box. Align the groove in connector to properly insert. Thread the cuff of the connector on fully. Attach the 'D-Sub' computer style connector as shown Plug in all heater leads to...
  • Page 14 Feed the main power supply cord in through the hole in Back Wall and insert in power supply box. Do NOT plug power cord into your wall outlet until all electrical connections are finished inside of the sauna. Connect circular connectors for the 2 Front Wall heaters. Thread the cuff of connectors on fully.
  • Page 15 Remove Side Wall Heater Guards The wooden lattice work in front of the heaters is referred to as the heater guard. These are held on with strong magnets. It is necessary to remove the heater guards from the two side walls in order to install the leg heater and the sauna bench.
  • Page 16 Install Bench The bench in your new sauna is reversible. Choose whichever side appeals to you to face upward. Reinstall the side wall heater guards Install the door handle Australia - 1800 316 962 | New Zealand 0800 21 8020...
  • Page 17 Heater Guards The heater guards in your new Sun Stream Infrared Sauna are held to the wall with strong earth magnets. If preferred, the heater guards can be screwed directly to the wall for a more permanent and secure attachment. The heater guards are pre-drilled for the attachment screws.
  • Page 18 Drill a pilot hole into the wall through the holes in the heater guards.Do not drill deeper than necessary for the length of the screw. NOTE: The pilot holes are important to ensure that the tongue and groove wall boards do not split when installing screws.
  • Page 19 Option-L Movable Bench Assembly Connect bench legs to the inside corners of the frames using supplied Ensure that the legs' ends are flush wood screws. with the bottom edge of the frames Attach the leg assembly to the bottom of the bench surface.Choose which surface of the bench you prefer to be the top and bottom.

  • Page 20: Audio System

    Audio System Music can be piped to the speakers in the sauna two different ways, either wireless via the Bluetooth receiver or by directly connecting your device (smart phone, tablet, laptop etc.) with a 3.5mm male to male audio cord. 1.
  • Page 21 2. Direct Connect Mode (NO Bluetooth) First, remove the access panels from the roof by unscrewing wood screws. Connect your device to the sauna's audio system by inserting a 3.5 mm male to male audio cord into the BT circuit board as shown (Audio cords not included).
  • Page 22 Reinstall the roof panels and feed your audio cord through the hole in roof. Enjoy your favorite audio while relaxing in your new sauna! Australia - 1800 316 962 | New Zealand 0800 21 8020...

  • Page 23: Control Panel

    Control Panel Australia - 1800 316 962 | New Zealand 0800 21 8020...
  • Page 24 Interior Control Panel Temperature Sensor FRAGILE DO NOT TOUCH Australia - 1800 316 962 | New Zealand 0800 21 8020...
  • Page 25 Connecting the sauna to your house power supply When the sauna is plugged into you wall outlet the red Power Indicator light on the control panel will be on. The Bluetooth audio receiver on the roof will make a beeping noise its indicator light will turn ON/OFF for Heaters Push the POWER button to turn the sauna heaters ON.
  • Page 26 Thermometer /Thermostat Display When the POWER button is turned ON the digital display will show the Thermometer reading. Anytime the + and - buttons are pushed the Thermostat setting display will show. After setting the thermostat the display will return to displaying Thermometer reading. Temperature Control When the interior air temperature is below the Thermostat set temperature, the heaters will remain ON.
  • Page 27 Floor Heater and General Maintenance Sweat Always sit on a towel on the sauna bench and wipe yourself down with a small towel to contain your sweat. This will minimize staining of the wood surfaces in the sauna. It is inevitable that you will drip some sweat down through the floor grate and on to the floor heater panel.
  • Page 28 CAUTION: DO NOT use LARGE towels on the floor heater that cover any more than 30% of the floor heater. SMALL towel only. Floor Heater Cleaning Simply tilt the floor grate up to access the floor heater. Gently wipe the heater with a damp cloth to clean.

  • Page 29: Cup Holder

    Accessories Backrests Your new Sun Stream Sauna comes equipped with backrests constructed from Western Red Cedar. Position the backrest as pictured to provide lower back support and to position yourself a comfortable distance from the Infrared heater panels. Cupholder Many of our customers simply set the cup holder on the bench of the sauna.
  • Page 30 Enjoy your new Sun Stream 'Evolve 30' Infrared Sauna! Australia - 1800 316 962 | New Zealand 0800 21 8020...
