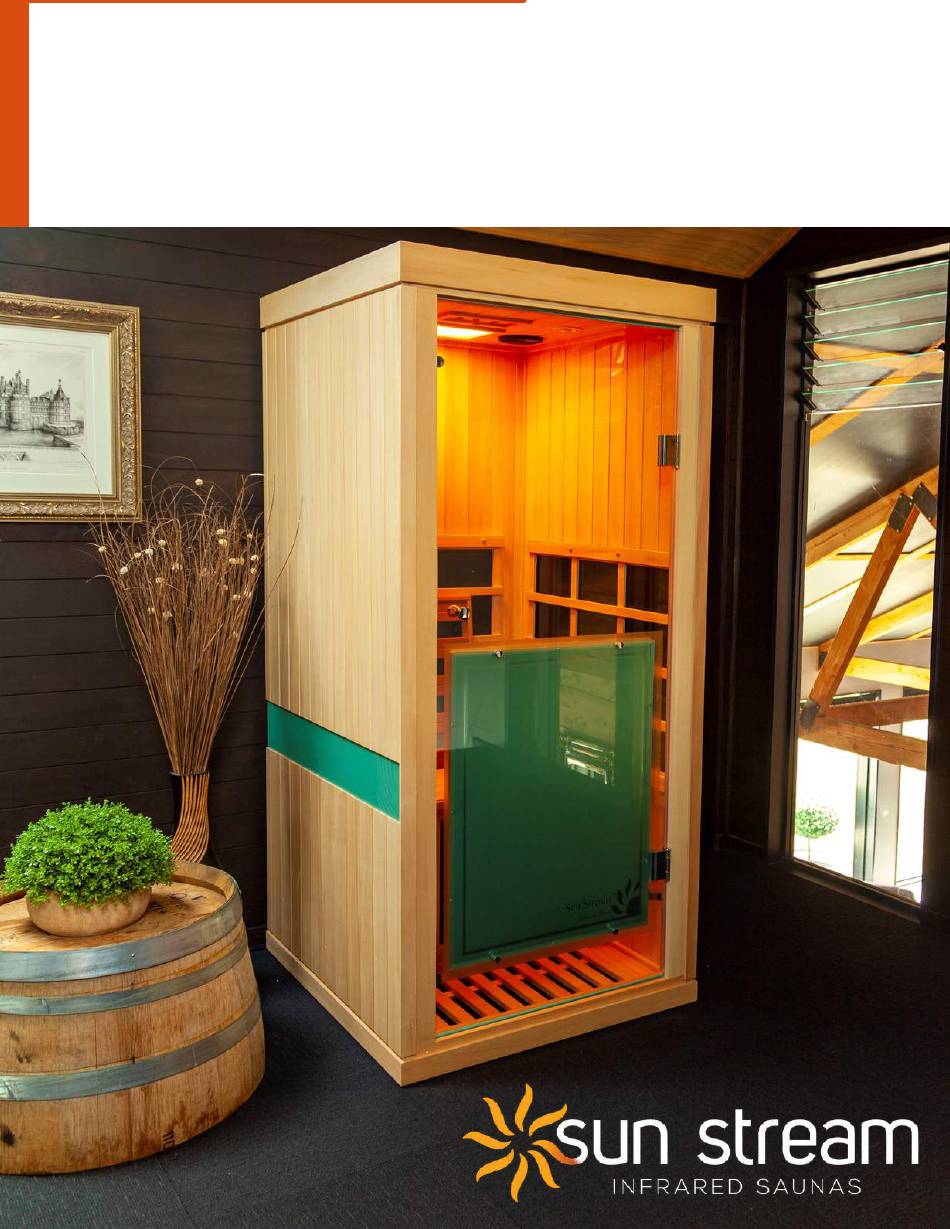

- Page 1 ASSEMBLY MANUAL Evolve 10 EHS Far Infrared Sauna...
-
Page 2: Pre-Assembly Checklist
Pre-Assembly Checklist Selecting a suitable location For best results, please place your sauna on a flat level surface. Suitable locations could include the garage, bedroom, sunroom. The sauna can be placed on carpet, tiles, timber flooring or concrete. For outdoor placement please note that the sauna must go in a covered area to provide protection from direct rainfall, additionally the sauna must be protected by one of our Australian made covers to protect the warranty. - Page 3 Prepare & Position the Sauna Floor If you are assembling your sauna on a hard surface floor it is recommended that you apply the included adhesive felt to the bottom of the sauna floor. Place the sauna floor in the desired location. It is necessary to position the floor out from your walls for assembly and slide the sauna into final position following assembly.
- Page 4 Before installing the Front Wall, ensure that the door heater electrical is protruding from bottom of Front Wall frame A bit of plastic wrap can serve to hold the connector out slightly. Position the Front Wall Lift the front wall into position carefully lowering the bottom of the wall into the channel on the floor base.
- Page 5 Connect door heater electrical lead to the floor base. Ensure hat the threaded cuff is fully screwed onto the floor base connector. NOTE: Be sure that the wire's connector is fully inserted into the floor base connector and that the threaded cuff is fully screwed onto the floor base connector.
- Page 6 Connect Side & Front Wall Cinch the two walls together by applying pressure on the outside of the side wall with your knee Slide the side wall upward approx. 3/4” while holding the front wall down It is helpful if a second person applies pressure against the opposite edge of the front wall.
- Page 7 Check to ensure that both sets of fasteners have connected by looking at the corner inside of the sauna. It is possible to connect one set of fasteners and miss the other. If there is an obvious gap in the corner between the two walls the fasteners have not connected and the raising and lowering procedure will need to be repeated.
- Page 8 Position Left Side Wall Lift the Left Side Wall into position, wedging the bottom of the wall into the channel in the floor base. Repeat the raising up and sliding down procedure again to connect the Left Side wall to Back Wall and the the Left Side Wall to the Front Wall.
- Page 9 Prepare to install the sauna roof Pull the single plastic connector down and out of the roof before lifting the roof into place. If you are unable to grab hold of the connector through the small opening in the ceiling, it may be necessary to remove the first T&G board on the top left side of the roof and feed the connector down through the opening.
- Page 10 This wire brings power to the roof for the stereo and lighting components Connect Roof Wires Before lowering the roof, connect the 12 V power supply wires. This is easiest accomplished with one person holding the weight of the roof while the other snaps together connectors and then feeds the connector up into roof.
- Page 11 Plug in all heater leads to receptacles in the power supply box. Feed the main power supply cord in through the hole in back wall and insert in power supply box. DO NOT plug power cord into your wall outlet until all electrical connections are complete inside of the sauna.
- Page 12 Power Supply Cord Feed the main power supply cord in through the hole in back wall and insert in to the power supply box. Connect main power cord to your wall outlet when all electrical connections inside of the sauna and the roof are complete. Chromatherapy The Chromatherapy LED panel is controlled by the...
- Page 13 Remove Side Wall Heater Guards The wooden lattice work in front of the heaters is referred to as the heater guard. These are held on with strong magnets. It is necessary to remove the heater guards from the two side walls in order to install the leg heater and the sauna bench.
-
Page 14: Connecting The Ground Wire
Connecting the ground wire Install Bench Angle the Bench into place to clear the Side Wall window frames. The Bench installs foil side down. Connect the grounding wire from bottom side of Lower the Bench into Position Bench as shown Australia - 1800 316 962 | New Zealand 0800 21 8020... - Page 15 Install Bench The bench in your new sauna is reversible. Choose whichever side appeals to you to face upward. Reinstall the side wall heater guards Install the door handle Australia - 1800 316 962 | New Zealand 0800 21 8020...
- Page 16 Heater Guards The heater guards in your new Sun Stream Infrared Sauna are held to the wall with strong earth magnets. If preferred, the heater guards can be screwed directly to the wall for a more permanent and secure attachment. The heater guards are pre-drilled for the attachment screws.
- Page 17 Drill a pilot hole into the wall through the holes in the heater guards.Do not drill deeper than necessary for the length of the screw. NOTE: The pilot holes are important to ensure that the tongue and groove wall boards do not split when installing screws.
- Page 18 Option-L Movable Bench Assembly Connect bench legs to the inside corners of the frames using supplied Ensure that the legs' ends are flush wood screws. with the bottom edge of the frames Attach the leg assembly to the bottom of the bench surface.Choose which surface of the bench you prefer to be the top and bottom.
-
Page 19: Cup Holder
Accessories Backrests Your new Sun Stream Sauna comes equipped with backrests constructed from Western Red Cedar. Position the backrest as pictured to provide lower back support and to position yourself a comfortable distance from the Infrared heater panels. Cupholder Many of our customers simply set the cup holder on the bench of the sauna.
