Summary of Contents for Sun-Stream Evolve 20

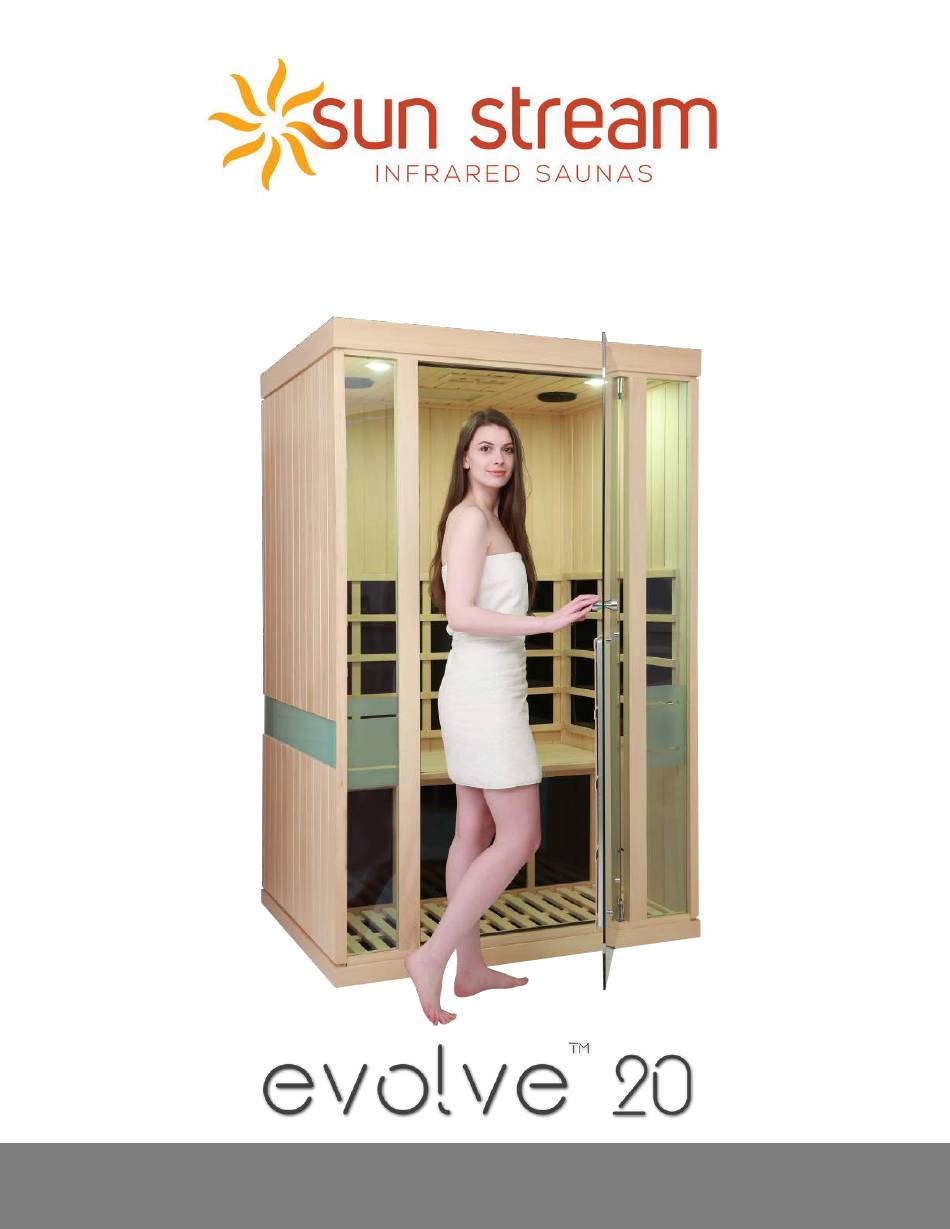

- Page 1 Assembly Manual Australia - 1800 316 962 | New Zealand 0800 21 8020...
- Page 2 Prepare the Sauna Floor If you are assembling your sauna on a hard surface floor it is recommended that you apply the included adhesive felt to the bottom of the sauna floor. Australia - 1800 316 962 | New Zealand 0800 21 8020...
- Page 3 Place the sauna Floor Base in the desired location. It is necessary to position the floor out from your walls for assembly and move the sauna following assembly. PLEASE NOTE: It is important that the sauna floor is level. Checking with a large level is recommended.
- Page 4 Front Wall Installation Ensure that the door heater electrical is protruding from bottom of front wall frame Position the Front Wall Lift the front wall into position carefully lowering the bottom of the wall into the channel on the floor base. Prop up one end of the front wall to enable connection of the door heater electrical lead.
- Page 5 Connect door heater electrical lead to the floor base. Ensure that the threaded cuff is fully screwed onto the floor base connector. NOTE: Be sure that the wire's connector is fully inserted into the floor base connector and that the threaded cuff is fully screwed onto the floor base connector.
- Page 6 Protect Floor Base As a precaution to protect the floor base, place a business card or similar on the floor base before installing glass panel Install Right Side Front Wall Glass Panel Australia - 1800 316 962 | New Zealand 0800 21 8020...
- Page 7 Connect Side Wall to Front Wall Insert Side Wall into the channel of floor base while aligning the slot in Side Wall with edge of Front Wall glass panel. USE EXTRA CARE fitting the Side Wall to the glass panel Australia - 1800 316 962 | New Zealand 0800 21 8020...
- Page 8 Wood Screw SIDE Use the supplied wood screw and the WALL pre-drilled hole to secure the Side Wall to the Front Wall frame. Back Wall Insert back wall into channel of floor base Australia - 1800 316 962 | New Zealand 0800 21 8020...
- Page 9 Connect the Back Wall to Side Wall Cinch the two walls together by applying pressure on the outside of the Side Wall with the inside of your knee. It is helpful if a second person applies pressure against the opposite edge of the back wall. This will helps ensure that the two walls remain in contact and the fasteners will connect.
- Page 10 There are two sets of fasteners to join the saunas' back corners together. After lowering the Back Wall, check to ensure that both sets of fasteners have connected by looking at the corner inside of the sauna. It is possible to connect one set of fasteners and miss the other.
- Page 11 Insert the Left Side Wall into the channel of floor base while aligning the slot in Side Wall with edge of Front Wall glass panel. USE EXTRA CARE fitting the Side Wall to the glass panel Connect the second Side Wall to the Back and Front Wall Use supplied wood screw and pre- drilled hole to secure the top of the side...
- Page 12 Pull the single plastic connector down and out of the roof before lifting the roof into place. If you are unable to grab hold of the connector through the small opening in the ceiling, it may be necessary to remove the first T&G board on the top left side of the roof and feed the connector down through the opening.
- Page 13 Connect the 12 Volt power supply wire at the back left corner of the sauna. This wire brings power to the roof for the stereo and lighting components. Lower the roof on to the walls Under-Bench Electrical NOTE: Do not connect main power cord to your wall outlet yet at this time. Connect the circular connector to power supply box.
- Page 14 Power Supply Cord Feed the main power supply cord in through the hole in back wall and insert in to the power supply box. DO NOT plug power cord into your wall outlet until all electrical connections are complete inside of the sauna. Door Heater Electrical Connect the coiled wire from the door heater to the connector on the door frame.
- Page 15 Remove Side Wall Heater Guards The wooden lattice work in front of the heaters is referred to as the heater guards. These are held on with strong magnets. It is necessary to remove the heater guards from the two side walls in order to install the sauna bench.
- Page 16 Install Bench The bench in your new sauna is reversible. Choose whichever side appeals to you to face upward. Reinstall the Side Wall heater guards Install the Door Handle Australia - 1800 316 962 | New Zealand 0800 21 8020...
- Page 17 Glass Glazing Strips There are 4 strips of flexible glazing material included with your Evolve 20 sauna. These hold the glass panels snugly in the wooden frame. It may not be necessary to use the glazing strips, or not necessary to use the...
- Page 18 Heater Guards The heater guards in your new Sun Stream Infrared Sauna are held to the wall with strong earth magnets. If preferred, the heater guards can be screwed directly to the wall for a more permanent and secure attachment. The heater guards are pre-drilled for the attachment screws.
- Page 19 Drill a pilot hole into the wall through the holes in the heater guards.Do not drill deeper than necessary for the length of the screw. NOTE: The pilot holes are important to ensure that the tongue and groove wall boards do not split when installing screws.
- Page 20 Option-L Movable Bench Assembly Connect bench legs to the inside corners of the frames using supplied Ensure that the legs' ends are flush wood screws. with the bottom edge of the frames Attach the leg assembly to the bottom of the bench surface.Choose which surface of the bench you prefer to be the top and bottom.
- Page 21 Audio System Music can be piped to the speakers in the sauna two different ways, either wireless via the Bluetooth receiver or by directly connecting your device (smart phone, tablet, laptop etc.) with a 3.5mm male to male audio cord. 1.
- Page 22 2. Direct Connect Mode (NO Bluetooth) First, remove the access panels from the roof by unscrewing wood screws. Connect your device to the sauna's audio system by inserting a 3.5 mm male to male audio cord into the BT circuit board as shown (Audio cords not included).
- Page 23 Reinstall the roof panels and feed your audio cord through the hole in roof. Enjoy your favorite audio while relaxing in your new sauna! Australia - 1800 316 962 | New Zealand 0800 21 8020...
-
Page 24: Control Panel
Control Panel Australia - 1800 316 962 | New Zealand 0800 21 8020... - Page 25 Interior Control Panel Temperature Sensor FRAGILE DO NOT TOUCH Australia - 1800 316 962 | New Zealand 0800 21 8020...
- Page 26 Connecting the sauna to your house power supply When the sauna is plugged into you wall outlet the red Power Indicator light on the control panel will be on. The Bluetooth audio receiver on the roof will make a beeping noise its indicator light will turn ON/OFF for Heaters Push the POWER button to turn the sauna heaters ON.
- Page 27 Thermometer /Thermostat Display When the POWER button is turned ON the digital display will show the Thermometer reading. Anytime the + and - buttons are pushed the Thermostat setting display will show. After setting the thermostat the display will return to displaying Thermometer reading. Temperature Control When the interior air temperature is below the Thermostat set temperature, the heaters will remain ON.
- Page 28 Floor Heater and General Maintenance Sweat Always sit on a towel on the sauna bench and wipe yourself down with a small towel to contain your sweat. This will minimize staining of the wood surfaces in the sauna. It is inevitable that you will drip some sweat down through the floor grate and on to the floor heater panel.
- Page 29 CAUTION: DO NOT use LARGE towels on the floor heater that cover any more than 30% of the floor heater. SMALL towel only. Floor Heater Cleaning Simply tilt the floor grate up to access the floor heater. Gently wipe the heater with a damp cloth to clean.
- Page 30 Accessories Backrests Your new Sun Stream Sauna comes equipped with backrests constructed from Western Red Cedar. Position the backrest as pictured to provide lower back support and to position yourself a comfortable distance from the Infrared heater panels. Cupholder Many of our customers simply set the cup holder on the bench of the sauna.
- Page 31 Enjoy your new Sun Stream 'Evolve' Infrared Sauna Australia - 1800 316 962 | New Zealand 0800 21 8020...
