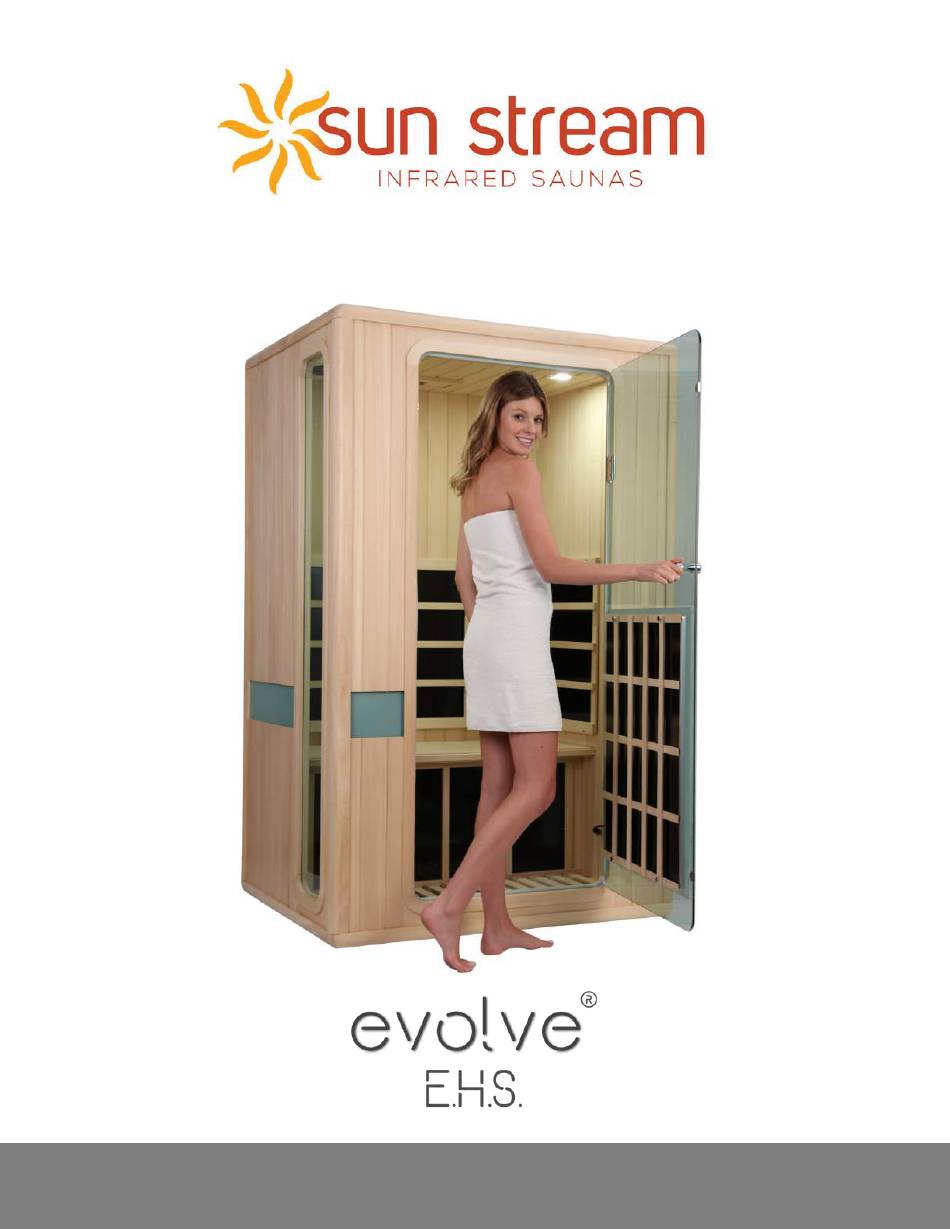

- Page 1 Assembly Manual Australia - 1800 316 962 | New Zealand 0800 21 8020...
- Page 2 Prepare & Position the Sauna Floor If you are assembling your sauna on a hard surface floor, it is recommended that you apply the included adhesive felt to the bottom of the sauna floor. Place the sauna floor in the desired location. It is necessary to position the floor out from your walls for assembly and move the sauna following assembly.
- Page 3 Position the Back Wall It is easiest if the Back Wall is placed behind the sauna floor base. Simply lean the Back Wall against your room wall at this time. Front Wall Place the sauna front wall into the Floor Base channel.
- Page 4 Right Side Wall Place the Right Side Wall in the Floor Base channel Front Right Corner Connect the Right Side Wall to the Front Wall by raising the Side Wall approx 1/2" then sliding down to connect the 2 fasteners. Cinch the two walls together by applying pressure on the outside of the Side Wall with the inside of your knee.
- Page 5 Hold Front Wall DOWN while sliding Side Wall UP There are two sets of fasteners to join the saunas' corners together. After lowering the Side Wall, check to ensure that both sets of fasteners have connected by looking at the corner inside of the sauna. It is possible to connect one set of fasteners and miss the other.
- Page 6 Back Right Corner Position Back Wall Connect the Right Side Wall to the Back Wall by Place the Back Wall into the Floor Base channel. raising the Side Wall approx 1/2" then sliding down to connect fasteners Hold Back Wall DOWN while sliding Side Wall UP Back Wall NOTE: It is NOT necessary to lift the entire Side Wall.
- Page 7 Front Left Corner Position Left Side Wall Slide Left Side Wall up then down to connect Place the Left Side Wall into the Floor Base channel the Left Side Wall to Front Wall Hold Front Wall DOWN while sliding Left Side Wall UP Australia - 1800 316 962 | New Zealand 0800 21 8020...
- Page 8 Position Back Wall Place the Back Wall into the Floor Base channel Back Left Corner Slide Left Side Wall up then down to connect the Left Side Wall to Back Wall Hold the Back Wall DOWN while sliding the Left Side Wall UP Back Wall Australia - 1800 316 962 | New Zealand 0800 21 8020...
- Page 9 Under-Bench Electrical NOTE: Do not connect main power cord to your wall outlet at this time. Connect the circular connector to power supply Attach the 'D-Sub' computer box. Align the groove in connector to properly style connector as shown. insert. Thread the cuff of the connector on fully. Plug in all heater leads to the receptacles in the power supply box.
- Page 10 Feed the main Power Supply Cord in through the hole in the Back Wall and insert in Power Supply Box. Do NOT plug power cord into your wall outlet until all electrical connections are finished inside of the sauna and for the roof. Connect the 2 floor/front wall connectors and install wooden cover plate Australia - 1800 316 962 | New Zealand 0800 21 8020...
- Page 11 Remove Side Wall Heater Guards Install the Leg Heater The wooden lattice work in front of the Install the leg heater by lowering it into the heaters is referred to as the Heater Guard. brackets mounted on the Side Walls. These are held on with strong magnets.
- Page 12 Install Bench Angle the Bench into place to clear the Side Wall window frames. The Bench installs foil side down. Connect the grounding wire from bottom side of Bench as shown Lower the Bench into Position Install the Door Handle Australia - 1800 316 962 | New Zealand 0800 21 8020...
- Page 13 Ensure that 12V DC power line from the Roof (with white plastic connector) is accessible before installing the Roof. Lift the Roof above the sauna Walls. Lower the 2 corners of the Roof on the Right side while keeping Left side up. Australia - 1800 316 962 | New Zealand 0800 21 8020...
- Page 14 Connect the 12 V power line between the Side Wall and Roof. Tuck the white plastic connector inside of the Roof and lower the Roof into place. It may be necessary to gently push on the inside or outside of the walls to align tops of walls with the Roof channel.
- Page 15 Heater Guards The heater guards in your new Sun Stream Infrared Sauna are held to the wall with strong earth magnets. If preferred, the heater guards can be screwed directly to the wall for a more permanent and secure attachment. The heater guards are pre-drilled for the attachment screws.
- Page 16 Drill a pilot hole into the wall through the holes in the heater guards.Do not drill deeper than necessary for the length of the screw. NOTE: The pilot holes are important to ensure that the tongue and groove wall boards do not split when installing screws.
- Page 17 Option-L Movable Bench Assembly Connect bench legs to the inside corners of the frames using supplied Ensure that the legs' ends are flush wood screws. with the bottom edge of the frames Attach the leg assembly to the bottom of the bench surface.Choose which surface of the bench you prefer to be the top and bottom.
-
Page 18: Audio System
Audio System Music can be piped to the speakers in the sauna two different ways, either wireless via the Bluetooth receiver or by directly connecting your device (smart phone, tablet, laptop etc.) with a 3.5mm male to male audio cord. 1. - Page 19 2. Direct Connect Mode (NO Bluetooth) First, remove the access panels from the roof by unscrewing wood screws. Connect your device to the sauna's audio system by inserting a 3.5 mm male to male audio cord into the BT circuit board as shown (Audio cords not included).
- Page 20 Reinstall the roof panels and feed your audio cord through the hole in roof. Enjoy your favorite audio while relaxing in your new sauna! Australia - 1800 316 962 | New Zealand 0800 21 8020...
-
Page 21: Control Panel
Control Panel Australia - 1800 316 962 | New Zealand 0800 21 8020... - Page 22 Interior Control Panel Temperature Sensor FRAGILE DO NOT TOUCH Australia - 1800 316 962 | New Zealand 0800 21 8020...
- Page 23 The maximum setting is 60 minutes. The minimum setting is 5 minutes. Pre Heat Sun Stream Infrared Saunas are typically used by preheating the sauna for 20-30 minutes. Thermostat Adjustment Press + or - to change the Thermostat setting. Increase Thermostat Setting: Press the + button to increase the temperature by 1 degree C increments.
- Page 24 Thermometer /Thermostat Display When the POWER button is turned ON the digital display will show the Thermometer reading. Anytime the + and - buttons are pushed the Thermostat setting display will show. After setting the thermostat the display will return to displaying Thermometer reading. Temperature Control When the interior air temperature is below the Thermostat set temperature, the heaters will remain ON.
- Page 25 Floor Heater and General Maintenance Sweat Always sit on a towel on the sauna bench and wipe yourself down with a small towel to contain your sweat. This will minimize staining of the wood surfaces in the sauna. It is inevitable that you will drip some sweat down through the floor grate and on to the floor heater panel.
- Page 26 CAUTION: DO NOT use LARGE towels on the floor heater that cover any more than 30% of the floor heater. SMALL towel only. Floor Heater Cleaning Simply tilt the floor grate up to access the floor heater. Gently wipe the heater with a damp cloth to clean.
-
Page 27: Cup Holder
Accessories Backrests Your new Sun Stream Sauna comes equipped with backrests constructed from Western Red Cedar. Position the backrest as pictured to provide lower back support and to position yourself a comfortable distance from the Infrared heater panels. Cupholder Many of our customers simply set the cup holder on the bench of the sauna. - Page 28 Enjoy your new Infrared Sauna! Australia - 1800 316 962 | New Zealand 0800 21 8020...
