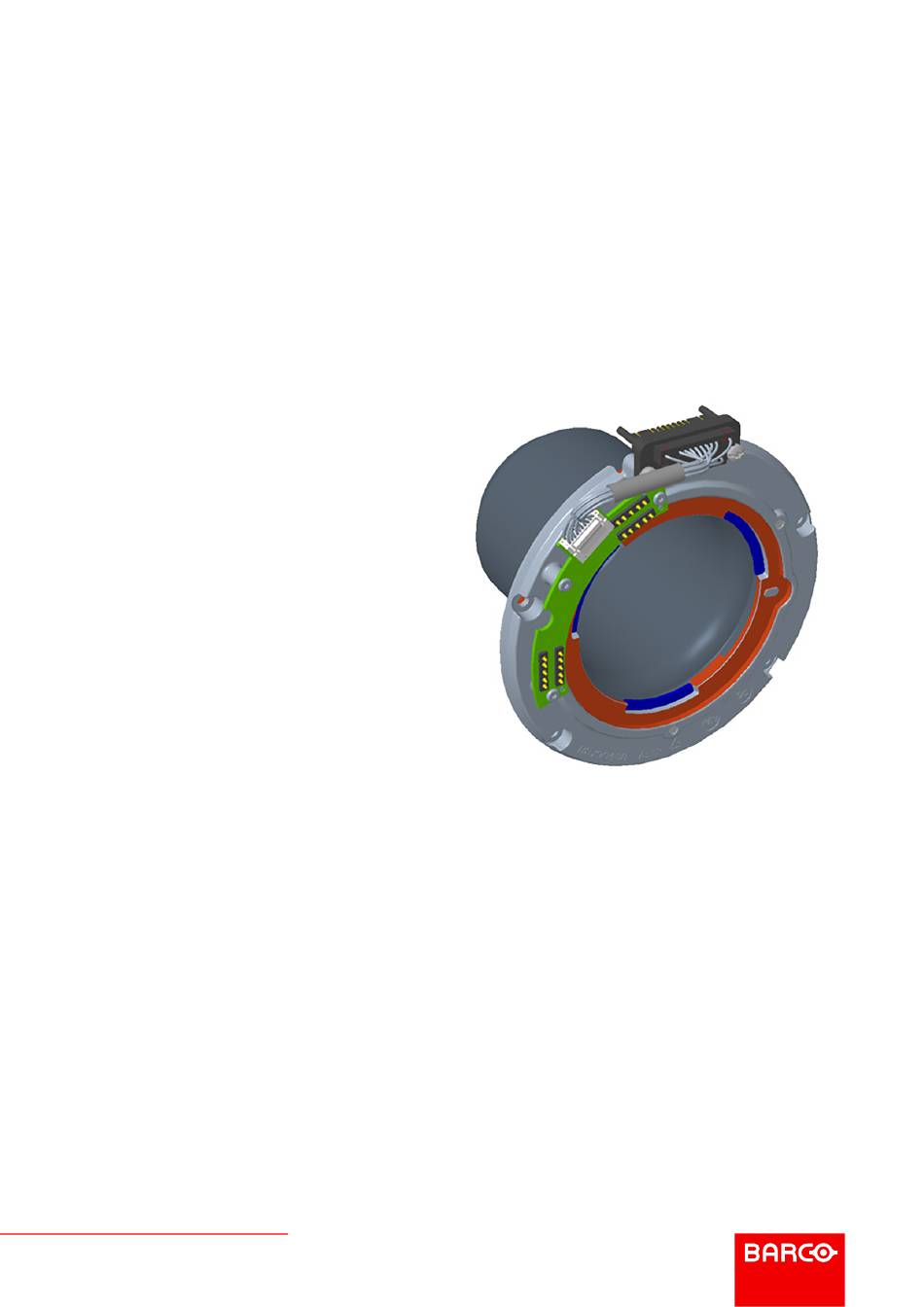

- Page 1 F400 Lens adapter For use with FLDX/FLD+ lenses Installation manual ENABLING BRIGHT OUTCOMES...
- Page 3 Lens adapter installation About the lens adapter ........................4 Preparing the adapter ........................5 Install the adapter ...........................6 R5917178 /01 F400 Lens adapter...

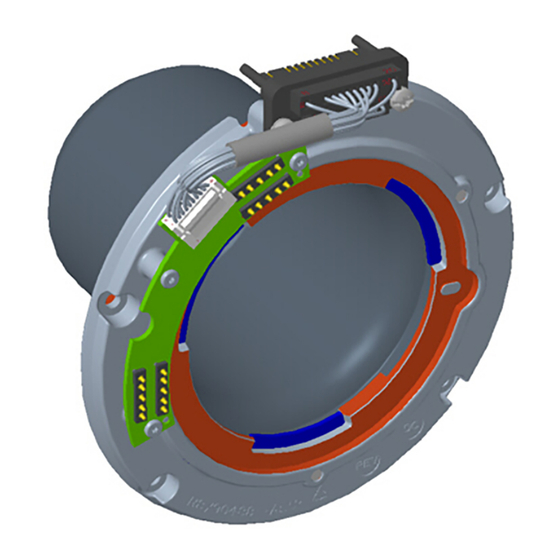

- Page 4 1.1 About the lens adapter About the Lens adapter The lens adapter R9802623 is designed for using with FLDX/FLD+ lenses on F400 projector. The lens adapter is assembled as a complete unit, and must be prepared before installing it on the lens.
- Page 5 Lens adapter installation 1.2 Preparing the adapter Required tools Screwdriver Tx20 How to prepare the Lens adapter Open the box, and take out the lens adapter. Release and remove the three screws (Reference 1) holding the lens adapter locking plate to the lens adapter.
- Page 6 Lens adapter installation 1.3 Install the adapter Required tools Screwdriver Tx20 How to install the lens adapter on the lens Install the lens adapter over the rear end of the lens. Image 1–4 Image 1–5 Note: Note that the pin (reference 2) in the adapter must align with the notch (reference 3) in the lens.
- Page 7 Lens adapter installation When the adapter has it’s correct position, turn the lock ring clockwise, to the locked position. Image 1–7 Note: It is not possible to turn the lock ring if the lens adapter is not in correct position. Reinstall the three screws securing the locking plate.
- Page 8 Lens adapter installation Tread the rubber cover downwards on the rear end of the lens. Image 1–9 Image 1–10 R5917178 /01 F400 Lens adapter...
- Page 9 Index About Lens adapter 4 Install Lens adapter 6 Lens adapter 3 About 4 Install 6 Preparing 5 Preparing Lens adapter 5 R5917178 /01 F400 Lens adapter...
