Summary of Contents for Samuel Heath V741

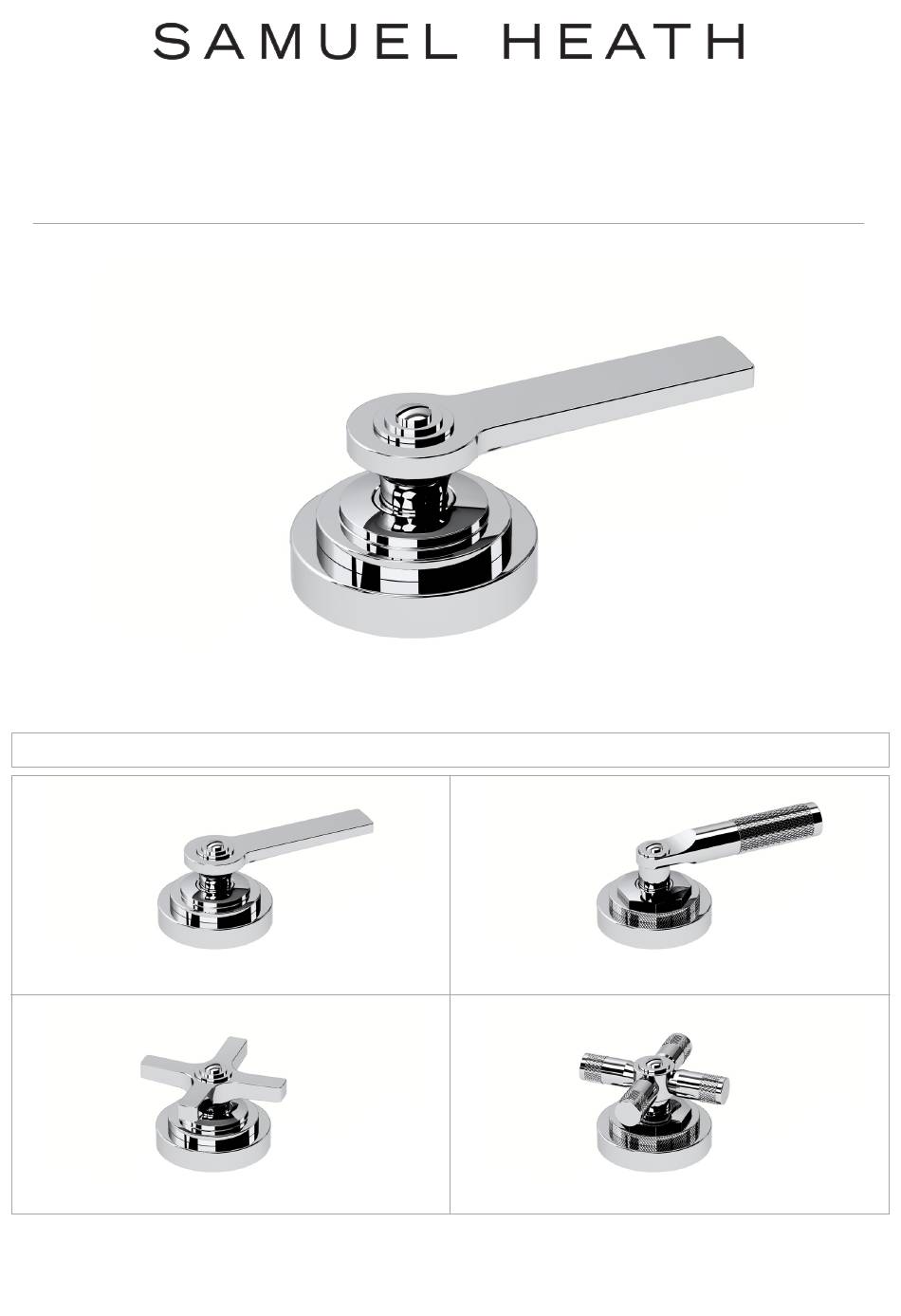

- Page 1 Product Data Sheet V741 / V741-A Deck Mounted Diverter - Available Control Options - V7K41-LF V7K41-LK V7K41-XF V7K41-XK...
- Page 3 Dimension Key V7K41LF V7K41LK...
- Page 4 Dimension Key V7K41XF V7K41XK...
- Page 5 Dimension Key V7KA41LF V7KA41LK...
- Page 6 Dimension Key V7KA41XF V7KA41XK...
-
Page 7: Flow Rates
Flow Rates The flow rate data provided in this document is indicative of each product and is given in an open outlet condition. Installation design, external connections and fittings not supplied may affect the data provided. - Page 8 Spares Information Item Part No. Description Screw Washer Spindle Escutcheon Lock Nut VS50022 Diverter Cartridge Deck Nut O-Ring Rubber Washer Stainless Steel Washer Lock Nut Diverter Body...
-
Page 9: Installation
Installation 1. Secure valve body (A) to deck by screwing locking nut (B) into side valve body (A), ensuring locking nut (B) is above deck as shown. 2. Screw escutcheon (C) into valve body (A). 3. To secure assembly in place, screw back nut (D) & washers (E) up to the deck, as shown, as far as they will engage. - Page 10 Installation 4. Attach control (F) onto spindle (G) and secure to assembly using screw (H) and anti-rotational washer (I). 5. Push indice cap (J) into control (F) to conceal screw. Note: DO NOT discard of anti-rotational washer (I), it is imperative that this remains part of the product assembly.
- Page 11 Installation 6. To operate the product, from the “off position” rotate the control (F) 90° anti-clockwise to divert to one outlet, or 90° clockwise to divert to the other outlet.
-
Page 12: Inlets And Outlets
Inlets and Outlets... - Page 13 Accessing / Servicing The Cartridge 1. Remove indice cap (J). 2. Unscrew screw (H), remove anti-rotational washer (I) then pull off control (F). 3. Pull out spindle (G) and unscrew escutcheon (C). 4. Unscrew locking nut (K) to reveal cartridge (L).
-
Page 16: Important Notes
5. Ceramic cartridges in hard water areas. To prolong the lifespan and reduce servicing periods of your Samuel Heath tap we recommend that a suitable water softener be fitted. Consult your installer/designer for details.
