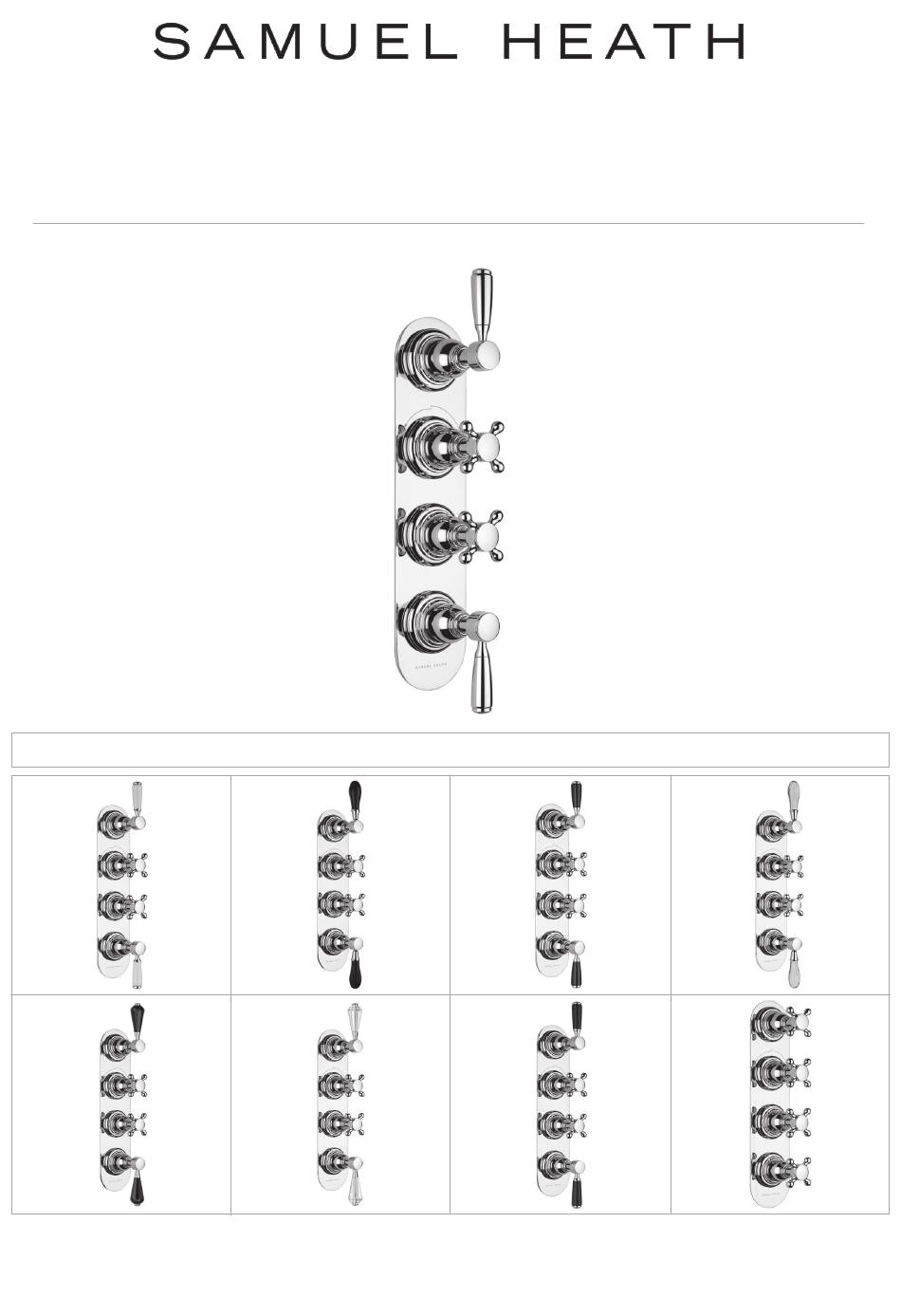

- Page 1 Product Data Sheet V206-T2 Trim To Suit V606-IS / V606-AIS V206-TM - Available Control Options - V206-TC V206-TGB V206-TGBC V206-TGC V206-TSB V206-TSC V206-TW V206-TX...
- Page 2 Dimension Key V206-TM / V206-TC / V206-TGBC / V206-TW...
- Page 3 Dimension Key V206-TGB / V206-TGC...
- Page 4 Dimension Key V206-TSB / V206-TSC...
- Page 5 Dimension Key V206-TX...
-
Page 6: Spares Information
Spares Information Item Part No. Description Indice O-Ring Screw Washer Cross Top Volume Spindle O-Ring Volume Body O-Ring Threaded Collar VS56043 CD Valve Trim Plate Temperature Body Temperature Spindle Temperature Collar VS56063 Thermostatic Cartridge O-Ring Locking Ring... -
Page 7: Installation
Installation 1. Install the finished surface, ensuring the finished surface is in accordance with the minimum and maximum installation depths shown on the drawings in the front of this booklet. - Page 8 Set Up 2. Ensure that the black line on the temperature spline (D) is in line with the step on the cartridge. 3. Push temperature ring (C) onto temperature cartridge (D). 4. Attach spindle assembly (E) onto the temperature cartridge (D) ensuring that the step on the temperature ring (C) lines up with the gap on the spindle assembly (E).
- Page 9 Set Up 7. Apply a bead of silicon sealant to the wall where the trim plate assembly (G) will sit. 8. Push trim plate assembly (G) onto the installed shower. 9. Clamp the trim plate assembly in place by screwing the volume bodies (H) onto volume collars (A).
- Page 10 Temperature Override Mechanism • This product has a pre-set maximum temperature of 41°C - 43°C (106°F - 109°F) • An additional temperature increase is available by pressing in the sprung loaded cross top as shown at the maximum setting. • The unit automatically clicks back into pre-override when rotated back towards cold.
-
Page 11: Adjusting The Temperature
Adjusting The Temperature 1. Remove thermo body (L). 2. Remove spindle assembly (E) by accessing the concealed screw using Allen key (F). Note: To remove the spindle assembly (E), the gap in the spindle assembly (E) must be in line with the step on the temperature collar (C). 3. -
Page 12: Important Notes
5. Ceramic cartridges in hard water areas. To prolong the lifespan and reduce servicing periods of your Samuel Heath tap we recommend that a suitable water softener be fitted. Consult your installer/designer for details.
