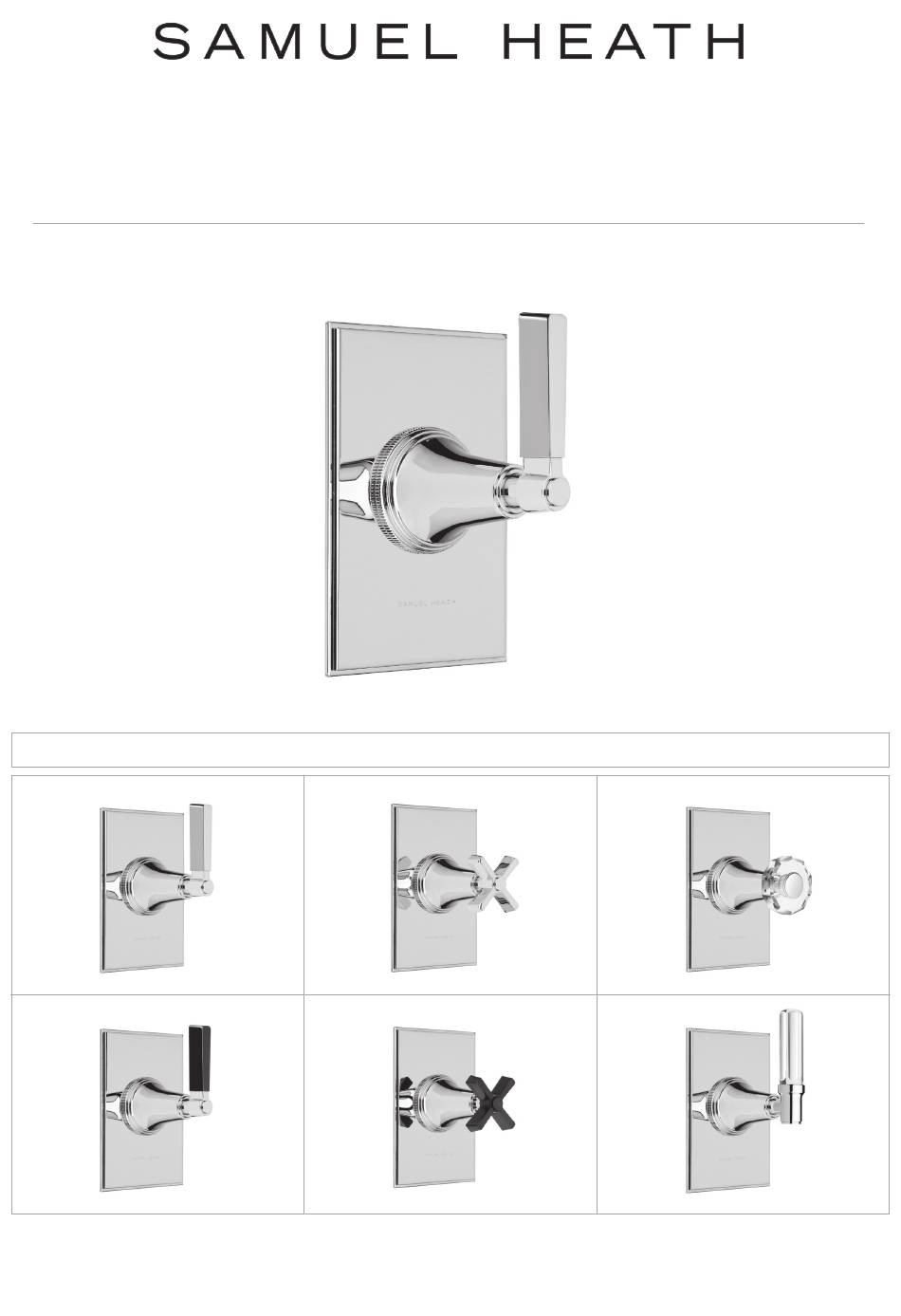

- Page 1 Product Data Sheet V600-T2 Trim To Suit V133-IS / V133-AIS - Available Control Options - V600-T2D V600-T2M V600-T2X V600-T2MB V600-T2XB V600-T2L...
- Page 3 Dimension Key V600-T2M / V600-T2MB...
- Page 4 Dimension Key V600-T2X / V600-T2XB...
- Page 5 Dimension Key V600-T2D...
- Page 6 Dimension Key V600-T2L...
- Page 7 Spares Information Item Part No. Description Cheese Head Screw Washer Thermo Body Threaded Collar Grub Screw Locking Nut Concealed Thermo Locking Nut Thermo Spindle VS56064 Thermostatic Cartridge Shower Plate...
-
Page 8: Installation
Installation 1. Install the finished surface, ensuring the finished surface is in accordance with the minimum and maximum installation depths shown on the drawings in the front of this booklet. - Page 9 Set Up 2. Ensure that the black line on the temperature spline (B) is in line with the groove. 3. Push temperature ring (A) onto temperature cartridge (B) - ensure that the step on the temperature ring (A) is in line with the gap on the cartridge (B). 4.
- Page 10 Set Up 6. Assemble threaded collar (G) by pushing over locking nut (K) and secure with grub screws (J) 7. Apply a bead of silicon sealant to the wall where the trim plate assembly (E) will sit. 8. Push trim plate assembly (E) onto the installed shower. 9.
- Page 11 Temperature Override Mechanism • This product has a pre-set maximum temperature of 41°C - 43°C (106°F - 109°F) • An additional temperature increase is available by pressing in the sprung loaded cross top as shown at the maximum setting. • The unit automatically clicks back into pre-override when rotated back towards cold.
- Page 12 Adjusting The Temperature 1. Remove thermo body (F). 2. Remove spindle assembly (C) by accessing the concealed screw using Allen key (D). Note: To remove the spindle assembly (C), the gap in the spindle assembly (C) must be in line with the step on the temperature collar (A). 3.
- Page 13 Control Assembly Instructions 1. Remove screw (A) and washer (B) from spindle 2. Position cross top (C) to tap body and assemble anti-rotational washer (B) followed by screw (A). Note: It is imperative that the anti-rotational washer is installed 3. Levers are also available (Assembly method is identical). Position lever at the preferred angle.
- Page 14 Luxe Lever Assembly Instructions Place adapter (A) onto the side valve spindle. 2. Align the adapter (A) using assembly guide screw (B) to mimic the desired position of the Luxe Lever. 3. Carefully remove screw (B) and secure adapter using screw (C) and washer (D).
-
Page 16: Important Notes
5. Ceramic cartridges in hard water areas. To prolong the lifespan and reduce servicing periods of your Samuel Heath tap we recommend that a suitable water softener be fitted. Consult your installer/designer for details.
