Product Data Sheet
V602-T / V602-H-T
Trim Set To Suit V135-IS / V135-AIS
V602-T
V602-H-T
- Available Control Options -
V602-TM
V602-TMB
V602-TX
V602-TXB
V602-TL

Advertisement

loading
Need help?

Need help?

Do you have a question about the V602-T and is the answer not in the manual?

Questions and answers

Related Manuals for Samuel Heath V602-T

Summary of Contents for Samuel Heath V602-T

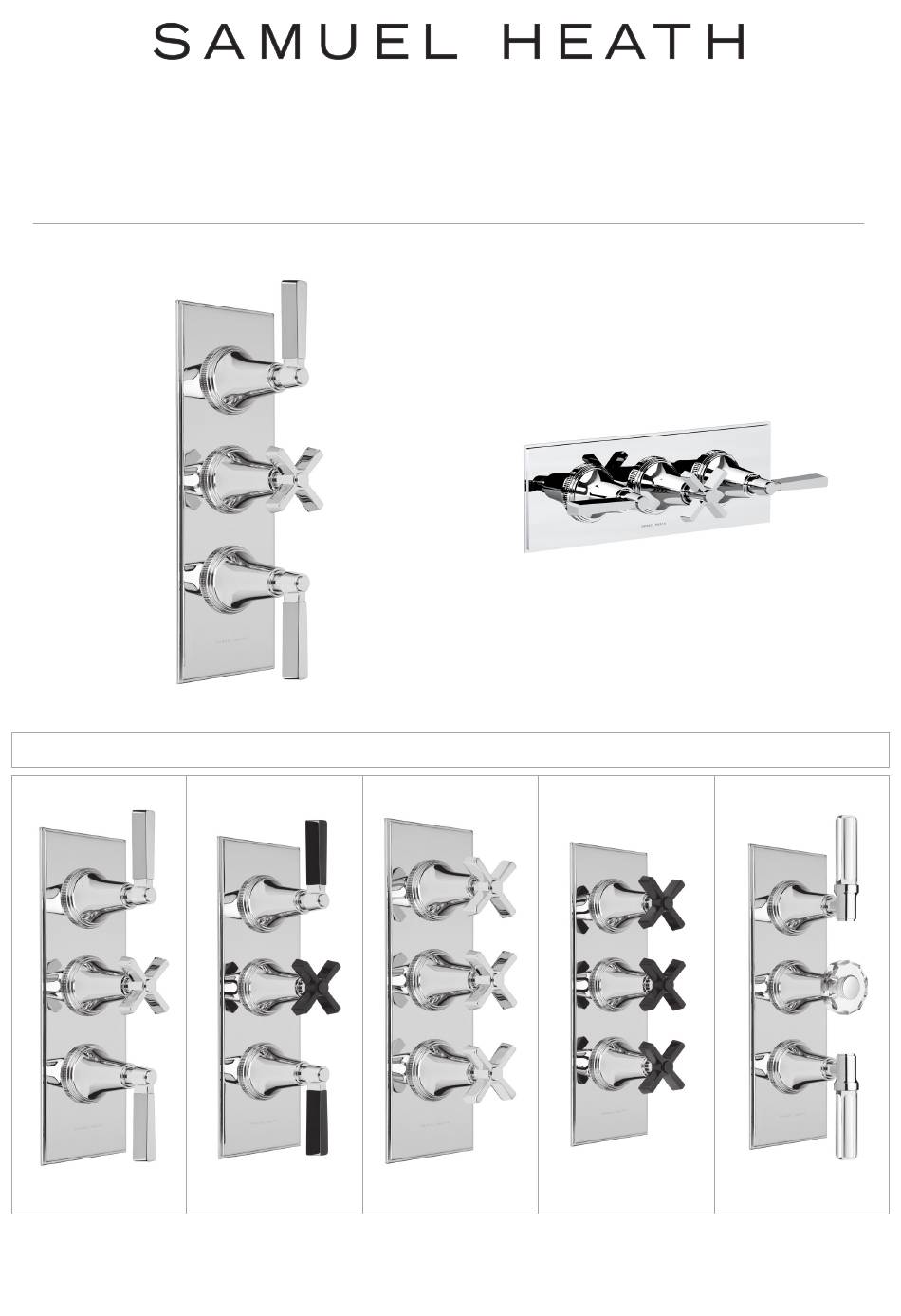

  • Page 1 Product Data Sheet V602-T / V602-H-T Trim Set To Suit V135-IS / V135-AIS V602-T V602-H-T - Available Control Options - V602-TM V602-TMB V602-TX V602-TXB V602-TL...
  • Page 2 Dimension Key V602-TM / V602-TMB...
  • Page 3 Dimension Key V602-TX / V602-TXB...
  • Page 4 Dimension Key V602-TL...
  • Page 5 Dimension Key V602-H-TM / V602-H-TMB V602-H-TX / V602-H-TXB...
  • Page 6 Dimension Key V602-H-TL...

  • Page 7: Spares Information

    Spares Information Item Part No. Description Cheese Head Screw Washer Volume Spindle Thermo Spindle Volume Body Thermo Lock Nut CD Valve (Anti-Clockwise Closing) VS56046 CD Valve (Clockwise Closing) VS56047 Thermostatic Cartridge VS56065 Threaded Shank Shower Plate Cheese Head Screw Washer Thermo Body Thermo Collar...

  • Page 8: Installation

    Installation 1. Install the finished surface, ensuring the finished surface is in accordance with the minimum and maximum installation depths shown on the drawings in the front of this booklet.
  • Page 9 Set Up 2. Ensure that the black line on the temperature spline (D) is in line with the step on the cartridge 3. Push temperature ring (C) onto temperature cartridge (D) 4. Attach spindle assembly (E) onto the temperature cartridge (D) ensuring that the step on the temperature ring (C) lines up with the gap on the spindle assembly (E).
  • Page 10 Set Up 7. Apply a bead of silicon sealant to the wall where the trim plate assembly (G) will sit. 8. Push trim plate assembly (G) onto the installed shower. 9. Clamp the trim plate assembly in place by screwing the volume bodies (H) onto volume collars (A).
  • Page 11 Temperature Override Mechanism • This product has a pre-set maximum temperature of 41°C - 43°C (106°F - 109°F) • An additional temperature increase is available by pressing in the sprung loaded cross top as shown at the maximum setting. • The unit automatically clicks back into pre-override when rotated back towards cold.

  • Page 12: Adjusting The Temperature

    Adjusting The Temperature 1. Remove thermo body (L). 2. Remove spindle assembly (E) by accessing the concealed screw using Allen key (F). Note: To remove the spindle assembly (E), the gap in the spindle assembly (E) must be in line with the step on the temperature collar (C). 3.
  • Page 13 Handle Alignment 1. Remove screw (A) and washer (B) from spindle 2. Position cross top (C) to tap body and assemble anti-rotational washer (B) followed by screw (A). Note: It is imperative that the anti-rotational washer is installed 3. Levers are also available (Assembly method is identical). Position lever is at preferred angle.
  • Page 16 5. Ceramic cartridges in hard water areas. To prolong the lifespan and reduce servicing periods of your Samuel Heath tap we recommend that a suitable water softener be fitted. Consult your installer/designer for details.

This manual is also suitable for:

V602-h-tV602-tmV602-tmbV602-txV602-txbV602-tl
