733961024
Owner's Manual & Assembly Guide
Model No. YS410-A / YS410EU-A / YS410ANCL / YS410ACC
Wood Platform
Building surface MUST be fl at or predrilled hole will not align for ideal assembly.
Good - Directly on ground, level crushed stone, or concrete paver pad.
Better - Pressure Treated Lumber must NOT be used where it will make contact with your storage building. The properties of
Pressure Treated Lumber will cause accelerated corrosion. If Pressure Treated Lumber comes in contact with your
storage building your warranty will be voided. A barrier can be used over pressure treated lumber.
Best - Concrete Slab, 4" thickness minimum.
4x10 Steel Shed
4x10 Steel Shed
116"
Base recommended before building
Tools Required
YardSaver
49"
82"
60 1/4"
38 1/2"
R
Concrete Slab
EN-01PJ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YardSaver YS410-A and is the answer not in the manual?

Questions and answers

Summary of Contents for Arrow YardSaver YS410-A

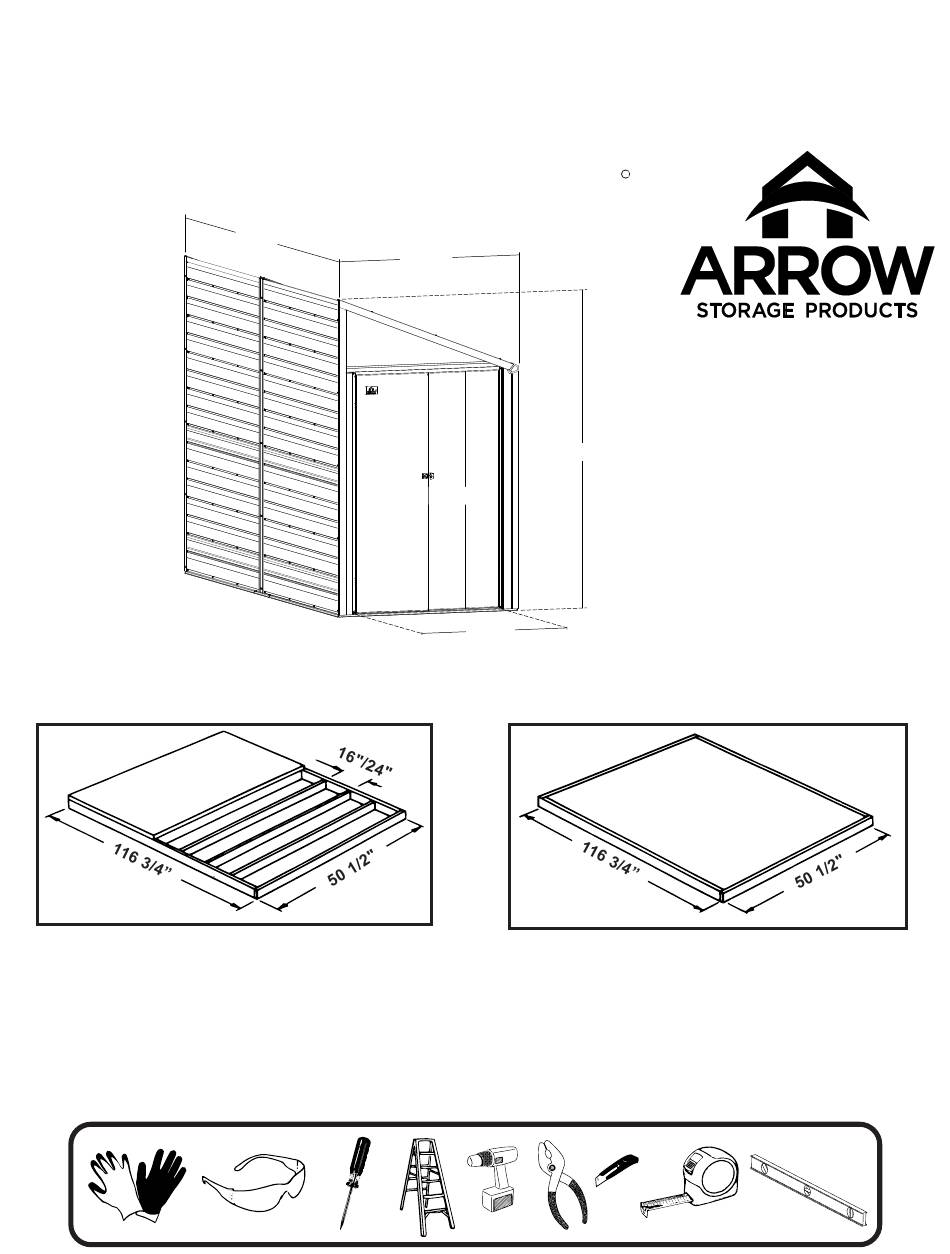

  • Page 1 733961024 EN-01PJ Owner’s Manual & Assembly Guide Model No. YS410-A / YS410EU-A / YS410ANCL / YS410ACC 4x10 Steel Shed 4x10 Steel Shed YardSaver 116” 49” 82” 60 1/4” 38 1/2” Base recommended before building Wood Platform Concrete Slab Building surface MUST be fl at or predrilled hole will not align for ideal assembly. Good - Directly on ground, level crushed stone, or concrete paver pad.
