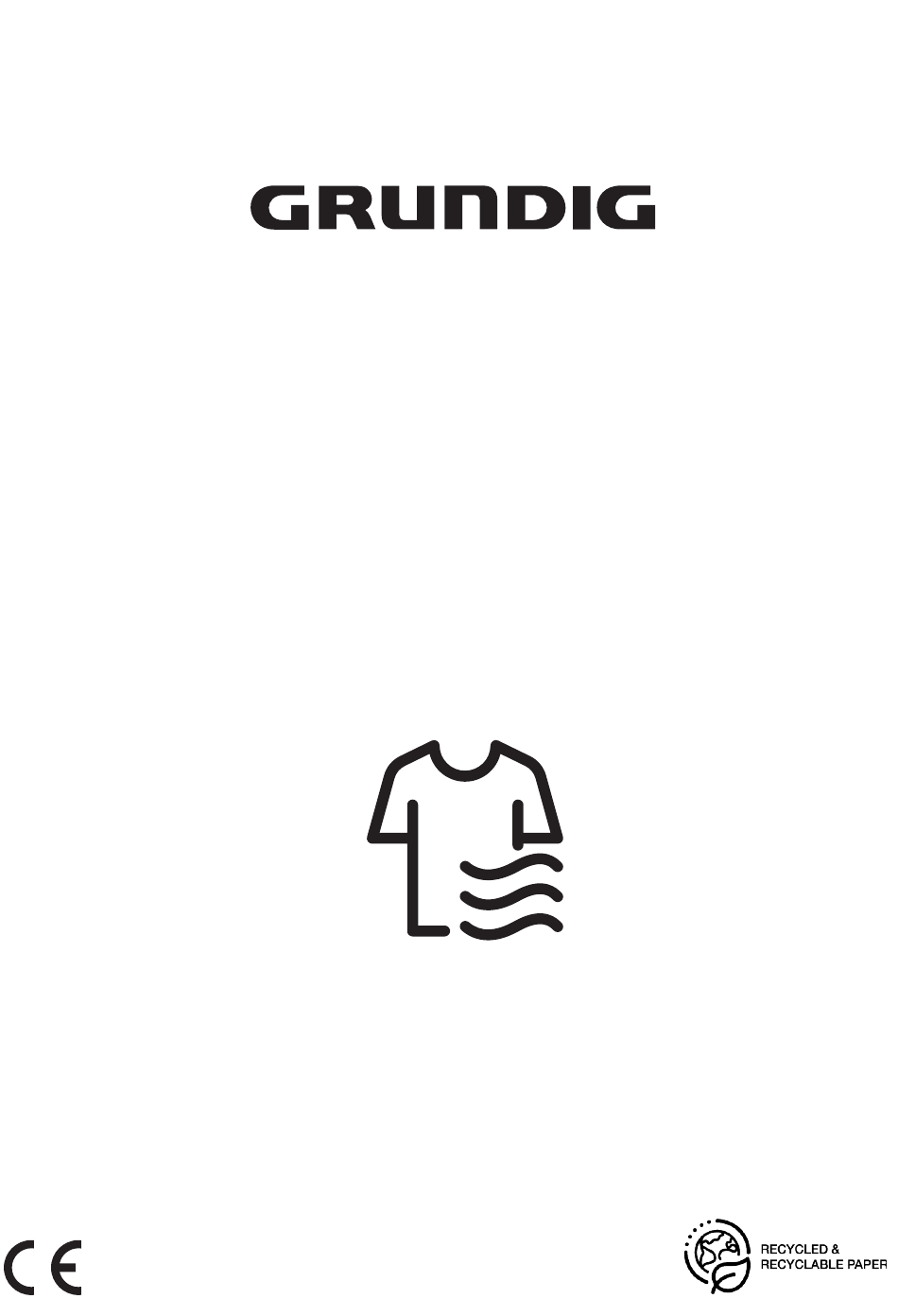

- Page 1 Dryer User Manual GT78923W 2960314208_EN/ 25-09-24.(12:15)
- Page 2 Dear Customer, Please read this guide prior to use this product! Thank you for choosing Grundig product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of the art technology.
-
Page 3: Table Of Contents
Table Of Contents 1 Safety Instructions ................5 1.1 Intended use .....................5 1.2 Safety of children, vulnerable persons and pets ..........5 1.3 Electrical Safety ....................6 1.4 Transporting safety ....................7 1.5 Installing safety ....................7 1.6 Usage safety .....................9 1.7 Maintenance and cleaning safety ..............11 1.8 Lighting safety ....................11 2 Environmental instructions.............. - Page 4 6 Running the product ................19 6.1 Control Panel ....................19 6.2 Symbols ......................19 6.3 Preparation of drying machine .................20 6.4 Program selection and consumption chart ............21 6.5 Auxiliary functions ....................24 6.6 Warning indicators ...................24 6.7 Starting the program ..................25 6.8 Child Lock .......................25 6.9 Changing the program after it is started ............25 6.10 Cancelling the program ..................26 6.11 End of program .....................26...
-
Page 5: Safety Instructions
1 Safety Instructions This section includes the safety instructions necessary to prevent the risk of personal injury or material damage. • Our company shall not be held responsible for damages that may occur if these instructions are not observed. • Installation and repair operations shall always be performed by Authorized Service. -
Page 6: Electrical Safety
• Electrical products are dangerous for children and pets. Children and pets shall not play with the product, climb on or get inside the product. • Keep the product door closed even when not operated. Children or pets could be locked inside the product and suffocate. •... -
Page 7: Transporting Safety
1.4 Transporting safety • Unplug the product prior to transport, empty the water tank and if any, remove the water drain connections. • This product is heavy, do not handle it by yourself. • Take required precautions for the product against falling and tipping. Do not crash or drop the product when transporting. - Page 8 • The product shall not be installed against a door, sliding door where the product loading door cannot be completely opened, or behind a hinged door where the product hinge is faced against the door’s hinges. • Install the product where periodic maintenance and cleaning can be done with ease.
-
Page 9: Usage Safety
• Washing machine cannot be placed on top of the drying machine. Installation Table for Washing Machine and Tumble Dryer Stacking Kit Type Depth Size (TD=Tumble Dryer, WM: Washing Machine) Plastic - 54/60cm w or w/o belt 60cm TD --> WM≥50cm / 54cm TD --> WM>45cm Plastic - 46cm w or w/o belt 46cm TD -->... - Page 10 • Do not use the drying machine without the fibre filter. • Do not allow fibre accumulation around the drying machine. • To prevent back draft of gas in the room from the devices that consume other fuels, including open fire, appropriate ventilation shall be provided (for models with flue).
-
Page 11: Maintenance And Cleaning Safety
1.7 Maintenance and cleaning safety • Do not wash the product by spraying or pouring water on it. Do not use a pressure cleaner, steam cleaner, hose or pressurised gun to clean the product. • Do not use sharp or abrasive tools to clean the product. •... -
Page 12: Environmental Instructions
: < 100mW Conformity declaration for CE Arcelik A.S. hereby declares that this appliance complies with Directive 2014/53/EU. The complete text of the EU declaration of conformity is available in the following internet address: – Products, from :support.grundig.com Dryer / User manual... -
Page 13: Your Drying Machine
3 Your drying machine 3.1 Technical specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,8 cm Depth 60,7 cm Capacity (max.) 9 kg** Net weight (± %10) 44 kg Voltage Rated power input See type label*** Model code * Min. -
Page 14: General Appearance
3.2 General appearance 3.3 Scope of delivery 1. Water 6. Water discharge filling cap* hose* 2. Filter drawer 7. Pure spare Water* sponge* 8. Odour 3. User Capsule Manual Group* 4. Drying 9. Brush* basket* 5. Drying 10. Filter 1. Top panel basket user cloth* manual*... -
Page 15: Installation
4 Installation • Once the drying machine is installed, the connections must stay stable. After Read the “Safety Instructions” first! placing the drying machine, ensure that the back wall does not come in contact Before consulting the nearest Authorized with any extrusion (a water tap, electrical Service for installing the drying machine, see outlet etc.). -
Page 16: Connection Of Water Drain Hose On Products With Vapour Feature
4.3 Connection of water drain hose 4.4 Adjusting the stands on products with vapour feature You can directly drain accumulated water Until the drying through the water drain hose supplied with machine stands level the product instead of periodically draining the and sturdy, adjust water collected in the water tank the stands by turning... -
Page 17: Preparation
5.3 Preparing the laundry to be dried 5 Preparation Items such as coins, metal parts, needles, nails, screws, stones etc. may damage the drum group of the product or may cause functional Read the “Safety Instructions” first! operation issues. Therefore check all laundry that will be loaded to the product. -
Page 18: Correct Load Capacity
• If you are using environment friendly filter, you are not required to clean the filter after every cycle. When the environment friendly icon is lit on the screen, change the filter cloth. 5.5 Correct load capacity NOTICE If the laundry in the product exceed maximum load capacity, it may not... -
Page 19: Running The Product
6 Running the product 6.1 Control Panel 1. Program selection button 7. Timer program and child lock selection button 2. On / Off button 8. Steam program selection button 3. Start / Pause button. 9. Low temperature selection button 4. End time selection button. 10. -
Page 20: Preparation Of Drying Machine
6.3 Preparation of drying machine • Plug the drying machine. • Open the loading door. • Place the laundry to the drying machine without jamming them. • Push and close the loading door. NOTICE Ensure that no laundry is jammed to the loading door. -
Page 21: Program Selection And Consumption Chart
6.4 Program selection and consumption chart Table of steam functioned cycles Programmes Programme Description Is a cycle aimed to reduce the wrinkle 1,5 (6 pieces) level on shirts and t-shirts using a steam function. This cycle usually eliminates the need for ironing for casual shirts after 1 (3 pieces) Shirts* drying. - Page 22 Table of non-steam functioned cycles You may dry your cotton laundry to be ironed Cottons Iron dry 1000 in this program to have them slightly damp for ease of ironing. (Shirt, T-shirt, tablecloth, etc.) It is the programme that you can dry your washed products you want to Hygienic Drying provide with extra hygiene (baby clothes,...
- Page 23 Energy consumption values Capacity (kg) Programmes Cottons Eco** 1000 1,61 Cottons Iron dry 1000 1,35 Synthetics cupboard dry 0,80 "Cottons Eco programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet Cottons laundry and that it is the most efficient programme in terms of energy consumption for Cottons.
-
Page 24: Auxiliary Functions
6.5 Auxiliary functions You can add or remove laundry Dryness level within end time. Displayed time is Dryness level button is used for adjusting to the sum of normal drying time and desired dryness. Program time may change end time. End Time LED turns off at depending on the selection. -
Page 25: Starting The Program
Cleaning of filter drawer/ 6.9 Changing the program after it is started heat exchanger You can change the program you selected to Warning symbol flashes periodically to remind dry your laundry with a different program after that filter drawer must be cleaned. the drying machine starts running. -
Page 26: Cancelling The Program
6.13 General Description Do not touch the inner surface of of Steam Programs the drum while adding or removing clothes during a continuing Steam cycles program. The drum surface is hot. You may use the steam function in cycles that 6.10 Cancelling the program are marked with a blue/red line in your machine panel. -
Page 27: Homewhiz Function
Cotton, and Synthetic cycles. When you tap The product screen is closed after the installation is completed and in the application, this button, steam function will be activated, the it is asked to select the room where the product symbol shown below will be displayed and the will be added. - Page 28 • The remote control is cancelled when the door is opened. • The remote control is cancelled when the program button is turned • If the Wifi icon is illuminated continuously, it means that it is active and connected to network •...
-
Page 29: Maintenance And Cleaning
7 Maintenance and cleaning Ensure that hair, fibre and cotton balls do not fall into the slot where the filters are installed. Read the “Safety Instructions” first! • Open both of the lint filters (outer and inner) and remove the fibres with your hands or 7.1 Lint filters (internal and external with the brush on the air deflector. -
Page 30: Cleaning The Sensor
• Clean the inner surface of the loading door and the gasket with a soft damp cloth or the Due to fire and explosion hazard, do brush on the air deflector. not use solutions, cleaning materials or similar tools to clean sensors. 7.3 Emptying the water tank During drying, the moisture is removed from the laundry and condensed, then the water is... -
Page 31: Cleaning The Condenser
To drain the water tank: Pull the brush to the Pull the water tank out from its drawer carefully. left to remove it. You Drain the water in the tank. can use the cleaning Remove the water tank in the drawer or the brush to clean kickplate carefully. - Page 32 You can clean by hand, provided you wear protective gloves. Do not try to clean with bare hands. The condenser fins may damage your hands. Cleaning from left to right may damage the condenser fins. This may lead to drying issues. When the air deflector cover is removed, it is normal to have water at the plastic section in front of the...
-
Page 33: Troubleshooting
8 Troubleshooting The drying operation takes too long. Fibre filter (interior and exterior filters) pores may be clogged. >>> Wash the fibre filters with warm water and dry them The front side of the condenser may be clogged. >>> Clean the front side of the condenser. The ventilation grills in front of the machine may be closed. - Page 34 The fibre filter cleaning icon is lit. Fibre filters (interior and exterior filters) may be unclean. >>> Wash the filters with warm water and dry them. A layer may be formed in the fibre filter pores, leading to clogging. >>> Wash the filters with warm water and dry them.
- Page 35 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 GRUNDIG Supplier name or trademark GT78923W Model name 7188238640 Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser A+++ Energy efficiency class Annual Energy Consumption (kWh) 194,4 Automatic Type of Control...
