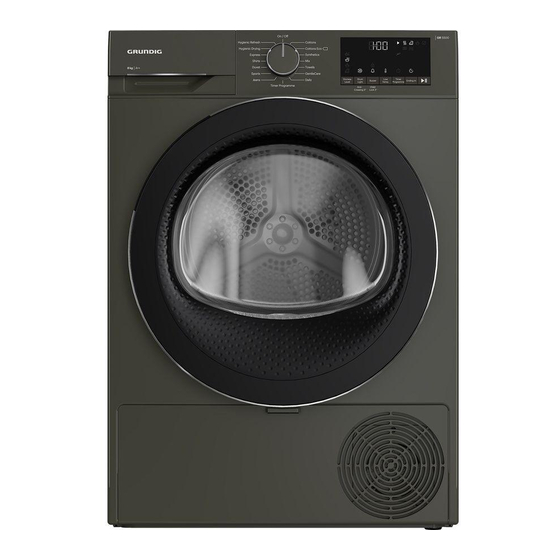

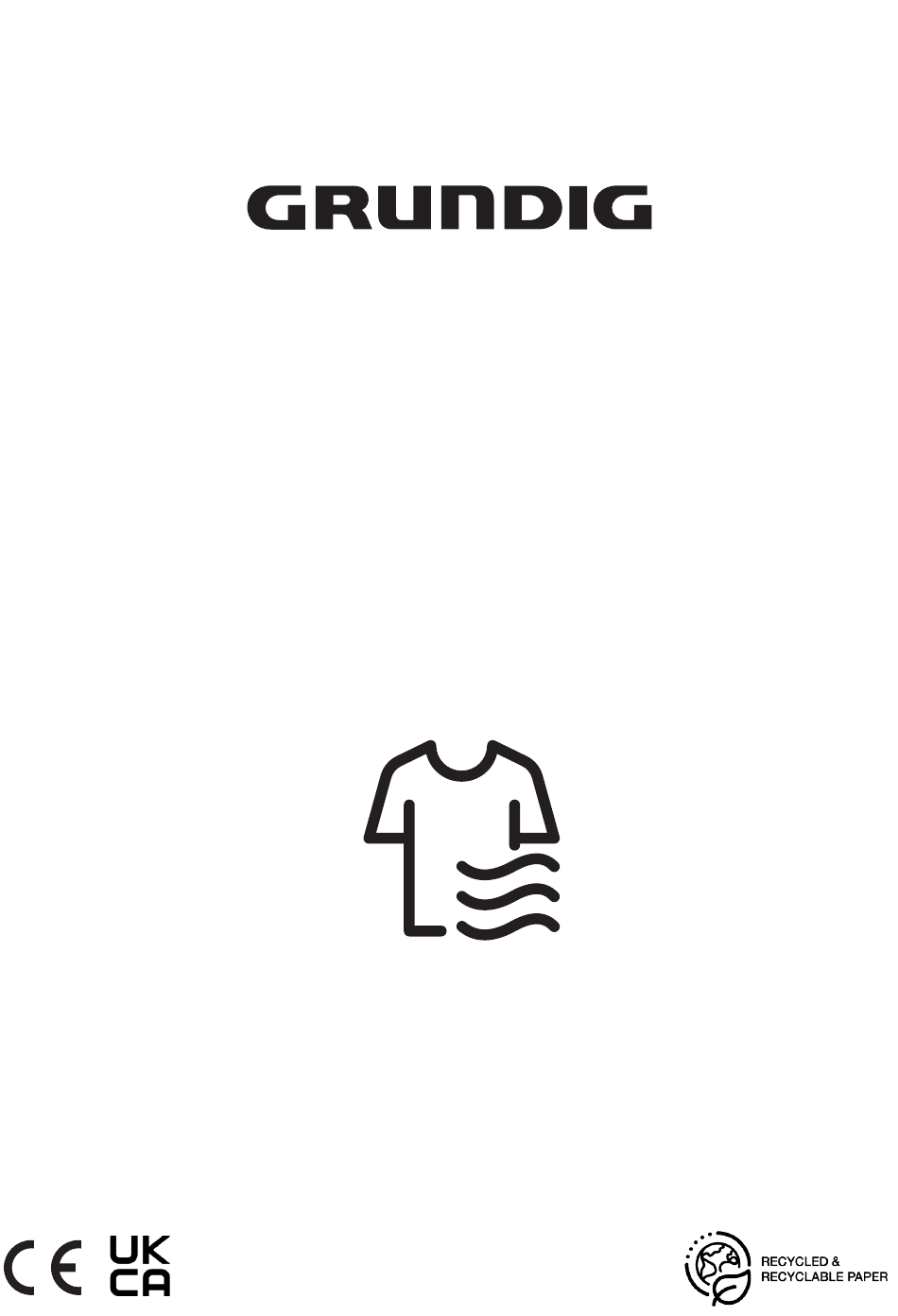

- Page 1 Dryer User Manual GT54823CW GT54823CG GT548231CW 2960312998_EN/ 27-02-23.(16:27)
- Page 2 If you have any questions or concerns, please call our contact centre or find help and information online at www.grundig.co.uk Explanation of symbols used throughout this User Manual The following symbols are used in the user guide: Danger that may cause death or injury Read the manual.
-
Page 3: Table Of Contents
Table Of Contents 1 Safety Instructions ................5 1.1 Intended use .....................5 1.2 Safety of children, vulnerable persons and pets ..........5 1.3 Electrical Safety ....................6 1.4 Transporting safety ....................7 1.5 Installing safety ....................7 1.6 Usage safety .....................9 1.7 Maintenance and cleaning safety ..............11 1.8 Lighting safety ....................11 2 Environmental instructions.............. - Page 4 6 Running the product ................19 6.1 Control Panel ....................19 6.2 Symbols ......................19 6.3. Preparation of drying machine ................19 6.4 Program selection and consumption chart ............20 6.5 Auxiliary functions ....................22 6.6 Warning indicators ...................22 6.7 Starting the program ..................23 6.8 Child Lock .......................23 6.9 Changing the program after it is started ............23 6.10 Cancelling the program ..................24 6.11 End of program .....................24...
-
Page 5: Safety Instructions
1 Safety Instructions This section includes the safety instructions necessary to prevent the risk of personal injury or material damage. • Our company shall not be held responsible for damages that may occur if these instructions are not observed. • Installation and repair operations shall always be performed by Authorized Service. -
Page 6: Electrical Safety
• Electrical products are dangerous for children and pets. Children and pets shall not play with the product, climb on or get inside the product. • Keep the product door closed even when not operated. Children or pets could be locked inside the product and suffocate. •... -
Page 7: Transporting Safety
1.4 Transporting safety • Unplug the product prior to transport, empty the water tank and if any, remove the water drain connections. • This product is heavy, do not handle it by yourself. • Take required precautions for the product against falling and tipping. Do not crash or drop the product when transporting. - Page 8 • The product shall not be installed against a door, sliding door where the product loading door cannot be completely opened, or behind a hinged door where the product hinge is faced against the door’s hinges. • Install the product where periodic maintenance and cleaning can be done with ease.
-
Page 9: Usage Safety
• Washing machine cannot be placed on top of the drying machine. Installation Table for Washing Machine and Tumble Dryer Stacking Kit Type Depth Size (TD=Tumble Dryer, WM: Washing Machine) Plastic - 54/60cm w or w/o belt 60cm TD --> WM≥50cm / 54cm TD --> WM≥45cm Plastic - 46cm w or w/o belt 46cm TD -->... - Page 10 • Laundry softeners or similar products shall be used in align with the laundry softener instructions. • Do not use the drying machine without the fibre filter. • Do not allow fibre accumulation around the drying machine. • To prevent back draft of gas in the room from the devices that consume other fuels, including open fire, appropriate ventilation shall be provided (for models with flue).
-
Page 11: Maintenance And Cleaning Safety
1.7 Maintenance and cleaning safety • Do not wash the product by spraying or pouring water on it. Do not use a pressure cleaner, steam cleaner, hose or pressurised gun to clean the product. • Do not use sharp or abrasive tools to clean the product. •... -
Page 12: Environmental Instructions
2 Environmental instructions 2.1 Compliance with the WEEE Regulations and Waste Disposal This product does not contain the dangerous and prohibited materials indicated in the “Regulation on The Control of Waste Electrical and Electronic Equipment” published by Ministry of Environment and Urbanisation of Republic of Turkey. Complies WEEE Regulations. -
Page 13: Your Drying Machine
3 Your drying machine 3.1 Technical specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,8 cm Depth 60,7 cm Capacity (max.) 8 kg** Net weight (± %10) 44 kg Voltage Rated power input See type label*** Model code * Min. -
Page 14: General Appearance
3.2 General appearance 3.3 Scope of delivery 1. Water 6. Water discharge filling cap* hose* 2. Filter drawer 7. Pure spare Water* sponge* 8. Odour 3. User Capsule Manual Group* 4. Drying 9. Brush* basket* 5. Drying 10. Filter 1. Top panel basket user cloth* manual*... -
Page 15: Installation
4 Installation • Once the drying machine is installed, the connections must stay stable. After Read the “Safety Instructions” first! placing the drying machine, ensure that the back wall does not come in contact Before consulting the nearest Authorized with any extrusion (a water tap, electrical Service for installing the drying machine, see outlet etc.). -
Page 16: Water Connection
4.3 Water connection 4.4 Adjusting the stands Instead of periodically draining the water accumulated in the water tank, you can Until the drying discharge via the water discharge hose machine stands level supplied with the drying machine. and sturdy, adjust Connecting the water the stands by turning them left and right. -
Page 17: Preparation
5.3 Preparing the 5 Preparation laundry to be dried Items such as coins, metal parts, needles, nails, screws, stones etc. may damage the drum group of the Read the “Safety Instructions” first! product or may cause functional operation issues. Therefore check all laundry that will be loaded to the 5.1 Laundry suitable for product. -
Page 18: Correct Load Capacity
• If you are using environment friendly filter, you are not required to clean the filter after every cycle. When the environment friendly icon is lit on the screen, change the filter cloth. 5.5 Correct load capacity NOTICE If the laundry in the product exceed maximum load capacity, it may not... -
Page 19: Running The Product
6 Running the product 6.1 Control Panel 1. On/Off/Program Selection button. 6. Audible warning and child lock selection button. 2. Start / Stand-by button. 7. Wrinkle prevention selection button/ Drum 3. End time selection button. light button. 4. Time program selection button. 8. -
Page 20: Program Selection And Consumption Chart
6.4 Program selection and consumption chart Programmes Programme Description You can dry your heat-resistant cotton textiles with this programme. A drying setting suitable for Cottons 1000 the thickness of the products to be dried and the desired level of dryness should be selected. It dries single layer, casual cotton textiles in the Cottons Eco 1000... - Page 21 You can dry your feather or fibre filled textile that bears can be dried in drier label as a single piece Duvet of laundry. You can dry double duvet, pillow or coats as single piece of laundry. Dry your cloths such as coats and jackets turned inside out.
-
Page 22: Auxiliary Functions
6.5 Auxiliary functions You can add or remove laundry Dryness level within end time. Displayed time is the sum of normal drying time and Dryness level button is used for adjusting to end time. End Time LED turns off at desired dryness. -
Page 23: Starting The Program
Cleaning of filter drawer/ 6.9 Changing the program after it is started heat exchanger You can change the program you selected to Warning symbol flashes periodically to remind dry your laundry with a different program after that filter drawer must be cleaned. the drying machine starts running. -
Page 24: Cancelling The Program
Do not touch the inner surface of the drum while adding or removing clothes during a continuing program. The drum surface is hot. 6.10 Cancelling the program If you want to cancel the program and terminate the drying operation for any reason after the drying machine starts running, Pause the program and turn the On/Off/Program Selection button;... -
Page 25: Maintenance And Cleaning
7 Maintenance and cleaning Ensure that hair, fibre and cotton balls do not fall into the slot where the filters are installed. Read the “Safety Instructions” first! • Open both of the lint filters (outer and inner) and remove the fibres with your hands or 7.1 Lint filters (internal and with the brush on the air deflector. -
Page 26: Cleaning The Sensor
7.2 Cleaning the sensor The drying machine has humidity sensors that detect whether the laundry is dry. To clean the sensors: Open the drying machine loading door. If the machine is hot due to drying operation, wait until it cools. Clean the metal surfaces of the sensor with a soft cloth dampened with vinegar and then dry. -
Page 27: Cleaning The Condenser
Condensed water is not potable Move the latches to water! open the air deflector Do not remove the water tank as a lid. program is running! If you do not empty the water tank, during the Pull the brush to the next drying sessions the machine will stop left to remove it. - Page 28 After the cleaning process is completed, Do not have weight place the air deflector on the toe board cover to its place, when it is open. move the latches to close it and close the toe board. Do not use abrasive materials or NOTICE steel wool to clean the drum.
-
Page 29: Troubleshooting
8 Troubleshooting The drying operation takes too long. Fibre filter (interior and exterior filters) pores may be clogged. >>> Wash the fibre filters with warm water and dry them The front side of the condenser may be clogged. >>> Clean the front side of the condenser. The ventilation grills in front of the machine may be closed. - Page 30 The fibre filter cleaning icon is lit. Fibre filters (interior and exterior filters) may be unclean. >>> Wash the filters with warm water and dry them. A layer may be formed in the fibre filter pores, leading to clogging. >>> Wash the filters with warm water and dry them. A layer may be formed in the fibre filter (internal and external filters) pores that leads to clogging.<<Wash the filters with warm water and dry>>...
-
Page 31: Electrical Connection
9. Electrical Connection In order to avoid hazards, damaged supply cord should be replaced by the manufacturer, its service agent or similarly Make sure that you have an earthed power qualified people. outlet socket rated at 13 amps (minimum). 9.1 Attention! Do not operate without the top cover fitted. - Page 32 Accidental damage, misuse or abuse of a product. An attempted repair of a product by anyone other than a Grundig Approved Engineer (the “Engineer”). Installation or use of a product where such installation or use fails to meet the requirements contained in this guarantee or the User Instructions Booklet.
- Page 33 11. Optional extras, where available (i.e. extendable feet) are supplied on a chargeable basis only. Does Grundig offer replacements? This is a repair-only guarantee. On occasion, the Manufacturer may at its sole discretion, replace your product with a new product instead of carrying out a repair.
- Page 34 60 months parts and labour guarantee by registering within 90 days of the original purchase date. To make a claim against your Grundig Eco Inverter Motor Guarantee (the “Guarantee”), all customer and product details must be registered with Beko plc using the procedure outlined below.
- Page 35 Please take a few moments to complete the details below, as you will need this information when you call us, or to use our online services. When you call us you may be required to input your serial number into your telephone keypad. For help please visit grundig.co.uk/support/model-finder •...
- Page 36 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 GRUNDIG Supplier name or trademark GT548231CW GT54823CW / 7188235940 Model name 7188237730 GT54823CG / 7188241380 Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class 236,0 Annual Energy Consumption (kWh)
