MT
TM
Installation Instructions
PK519207 - 02/2023
Original document
EN
RFID

Advertisement

loading
Need help?

Need help?

Do you have a question about the MT RFID and is the answer not in the manual?

Questions and answers

Related Manuals for Dormakaba MT RFID

Summary of Contents for Dormakaba MT RFID

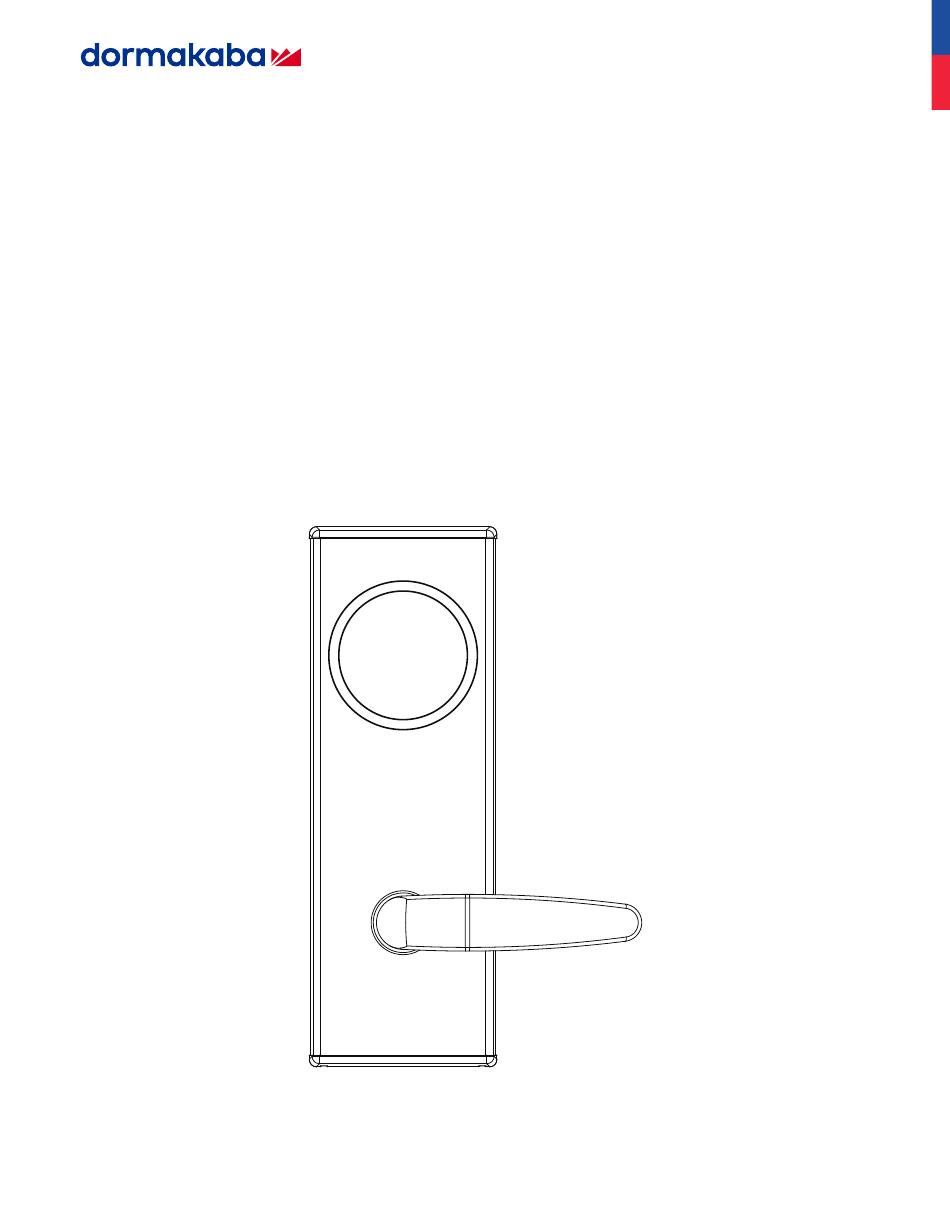

  • Page 1 RFID Installation Instructions PK519207 - 02/2023 Original document...

  • Page 2: Table Of Contents

    Any misuse of this confidential information contained herein may result in legal action by dormakaba USA Inc. and its parent company. Subject to change without notice. © 2023 dormakaba all rights reserved.

  • Page 3: Disclaimer

    RFID Disclaimer IMPORTANT Carefully inspect windows, doorframe, door, etc. to ensure that the recommended procedures will not cause damage. Kaba standard warranty does not cover damages caused by installation. WARNING Refer to drilling templates for the hole to drill in the doors.

  • Page 4: Inventory

    Inventory All parts needed to install the MT RFID lock are included. Please check to make sure all parts are accounted for before beginning installation. Do not substitute any of the parts. The use of substitute parts will result in poor performance of the lock.

  • Page 5: Preparing The Door And Door Frame

    Preparing the door and door frame Prepare the door using the MT RFID installation template or drill fixture. The door edge prep is a standard, full-mortise prep for a 1-1/4” x 8” front plate (1” x 8” and 1” x 7-3/4” custom front plates are optional). The door surface holes and mortise are customized for the MT trim.
  • Page 6 RFID Preparing the door and door frame (Continued) The mortise plate has an adjustable bevel. Align the mortise front plate with the bevel of the door edge and tighten the two bevel adjustment screws at the top and bottom of the mortise case. Position the mortise case in the door edge with the motor wire routed through the notch (see Fig.

  • Page 7: Installing The Lock Trim

    RFID Installing the lock trim Both the outside and inside trim assemblies have 1/4˝ alignment pins that fit into holes in the mortise case. These pins establish an accurate trim position with respect to the mortise case assembly, allowing the levers and bolt mechanism to operate freely without binding.
  • Page 8 RFID Installing the lock trim (Continued) Connect ribbon cable, motor wire, and reader power wire to the PCB. See Fig. 4. 10. Watch for the green LED on the card reader to flash four times while you connect the battery wire to the PCB. The green light indicates that the PCB has reset.
  • Page 9 RFID Installing the lock trim (Continued) 13. Secure the inside trim cover to the inside trim using two M4 x 16mm Torx screws (see Fig. 5). 14. Program the lock using the HH6 handheld programmer with USB probe (PN 71690).

  • Page 10: Testing Lock Functionality

    Testing Lock Functionality Pass a Construction key over the MT RFID reader. The green light will flash for five seconds. Be sure that the green light flashes for five seconds while the exterior lever remains operable. If the green light does not flash, refer to the table below.

  • Page 11: Dormakaba Door Unit Inspection Criteria

    RFID dormakaba Door Unit Inspection Criteria Appearance • Finish is free of blemishes or scratches that would distract from lock appearance • Lock body and under plate (if used) are mounted straight on the door • Door scalp is mounted straight and flush with the door edge •...

  • Page 12: Emergency Exit Device Certificate

    0432 EN 179:2008 Emergency exit device Type 376B1452AD dormakaba Canada Inc. 7301 Decarie, Montreal, QC, Canada H4P 2G7 0432-CPR-00072-04 Capacity to trigger: Responds ( = < 70 N without load) Durability of capacity to trigger: Responds ( 200,000 cycles / = <...

  • Page 13: 14846 Certificate

    RFID EN 14846 Certificate dormakaba Austria GmbH Ulrich-Bremi-Straße2 3130 Herzogenburg Österreich 0432-CPR-00072-03 EN 14846: 2008 3/5/5/D/0/G/3/0/3 ESM MORTISE DOP_0175 dormakaba Austria GmbH Ulrich-Bremi-Straße2 3130 Herzogenburg Österreich 0432-CPR-00072-03 EN 14846: 2008 3/5/5/D/0/G/3/0/3 ASM MORTISE DOP_0175 RFID Installation Instructions PK519207 02-23...
  • Page 14 Key Systems Systems Entrance Safe Systems Locks Service dormakaba USA Inc. 6161 E. 75th Street General information: dormakaba.us Indianapolis, IN 46250 Online consumable orders: dormakabalodgingstore.com To access all of our easy steps, please visit our support T: +1 800 999 6213 dormakaba.com...
