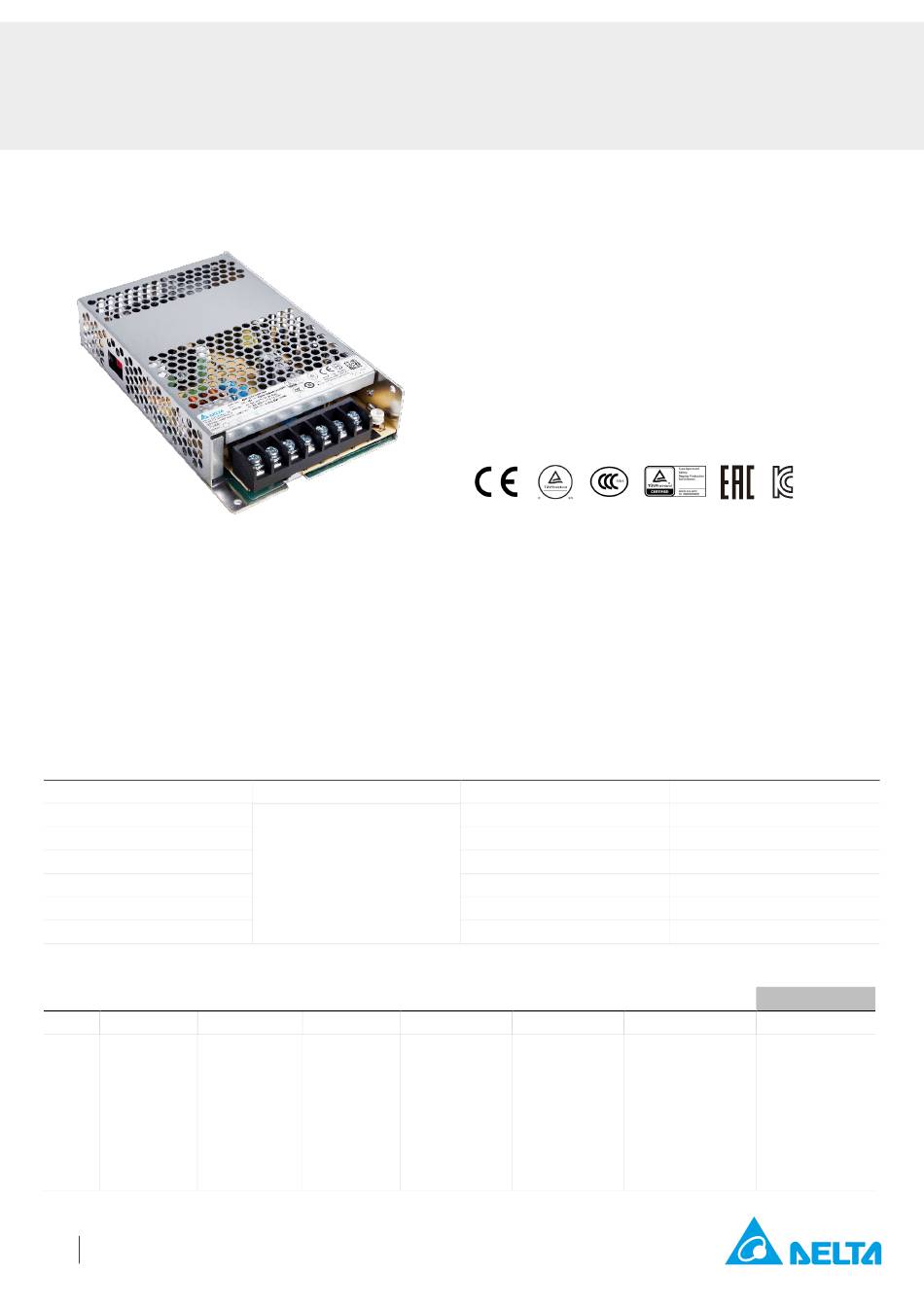

TECHNICAL DATASHEET
PMT2 Panel Mount Power Supply
PMT2 150W series / PMT-
General Description
PMT 2
nd
generation (PMT2) power supplies is designed in a low 30mm profile and accepts universal AC input. The highly efficient
convection cooling construction can operate from -30°C to 70°C. The single output model is competitively priced for general industrial
and ITE applications. It complies to major safety approvals such as IEC/EN 60335-1, IEC/EN 61558-2-16, IEC 60950-1 & IEC/EN/UL
62368-1.
Model Information
PMT2 Panel Mount Power Supply
Model Number
PMT-12V150W2B☐☐
PMT-15V150W2B☐☐
PMT-24V150W2B☐☐
PMT-30V150W2B☐☐
PMT-36V150W2B☐☐
PMT-48V150W2B☐☐
Model Numbering
PM
T –
□V
Panel
Product Type
Output Voltage
Mount
T – Enclosed
12 – 12V
15 – 15V
24 – 24V
30 – 30V
36 – 36V
48 – 48V
*1 : 12V/24V models only
All parameters are specified at 25°C ambient and nominal AC input unless otherwise indicated.
1
www.DeltaPSU.com (April 2020, Rev. 05)
V150W2B
□
Input Voltage Range
90-132Vac, 180-264Vac
(Selectable by Switch)
150W
2
Output Power Single Phase
with Low Profile
□□
PMT2
Highlights & Features
Household appliance approvals according to IEC/EN
•
60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
AC input voltage range selectable by switch (90-132Vac,
•
180-264Vac)
No load power consumption < 0.5W
•
•
Low profile design: 30mm height
OVC III, Pollution Degree 3
•
•
Wide operating temp -30°C ~70°C (Support -40°C cold start)
Conforms to harmonic current IEC/EN 61000-3-2, Class A
•
•
High MTBF > 700,000 hrs per Telcordia SR-332
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x H):
Rated Output Voltage
12Vdc
15Vdc
24Vdc
30Vdc
36Vdc
48Vdc
B
□
Family Code: B
Connector Type
With No PFC
A – Terminal Block
PMT-☐V150W2B☐☐
0.354 kg (0.78 lb)
159 x 97 x 30 mm
(6.26 x 3.82 x 1.18 inch)
Rated Output Current
12.5A
10.0A
6.25A
5.0A
4.3A
3.3A
CC code
□
Blank – Without
connector cover &
coating
B – With single
side coating*
C – With
connector cover +
single side
coating*
1
1
Advertisement
Table of Contents
Related Manuals for Delta PMT2 150W Series
Summary of Contents for Delta PMT2 150W Series
- Page 1 TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT- V150W2B □ □□ PMT2 Highlights & Features Household appliance approvals according to IEC/EN • 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16 AC input voltage range selectable by switch (90-132Vac, •...
-
Page 2: Specifications
TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT- V150W2B □ □□ Specifications PMT-12V150W2B PMT-15V150W2B PMT-24V150W2B PMT-30V150W2B PMT-36V150W2B PMT-48V150W2B Model Number ☐☐ ☐☐ ☐☐ ☐☐ ☐☐ ☐☐ Input Ratings / Characteristics Nominal Input Voltage 100-120Vac, 200-240Vac (Selectable by Switch) - Page 3 TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT- V150W2B □ □□ Mechanical Case Chassis Aluminum Case Cover SGCC Dimensions (L x W x H) 159 x 97 x 30 mm (6.26 x 3.82 x 1.18 inch) Unit Weight 0.354 kg (0.78 lb)
- Page 4 TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT- V150W2B □ □□ Reliability Data MTBF > 700,000 hrs as per Telcordia SR-332 I/P: 230Vac, O/P: 100% Load, Ta: 25°C) Expected Cap Life Time 10 years (230Vac, 50% load @ 40°C)
-
Page 5: Block Diagram
TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT- V150W2B □ □□ Block Diagram Device Descriptions Input & Output terminal block connector DC voltage adjustment potentiometer DC OK control LED (Green) All parameters are specified at 25°C ambient and nominal AC input unless otherwise indicated. - Page 6 TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT- V150W2B □ □□ Dimensions L x W x H: 159 x 97 x 30 mm (6.26 x 3.82 x 1.18 inch) Wire AWG Table Current rating for PVC Wire AWG 6AWG 52.5A...
-
Page 7: Engineering Data
TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT- V150W2B □ □□ Engineering Data Output Load De-rating VS Surrounding Air Temperature Note Power supply components may degrade, or be damaged, when the power supply is continuously used outside the shaded region, refer to the graph shown in Fig. -
Page 8: Assembly And Installation
TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT- V150W2B □ □□ Assembly & Installation Ⓐ Mounting holes for power supply assembly onto the mounting surface. The power supply shall be mounted on minimum 2 mounting holes using M3 screw minimum 5mm (0.20 inch) length. - Page 9 Fig. 4 Mounting Screw Safety Instructions If user’s mounting orientation is not according to the recommended mounting orientations, please consult Delta for further • information. To ensure sufficient convection cooling, always maintain a safety distance of ≥ 50mm (1.97 inch) from all ventilated surfaces while •...
- Page 10 TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT- V150W2B □ □□ Functions Start-up Time The time required for the output voltage to reach 90% of its final steady state set value, after the input voltage is applied.
- Page 11 Attention Delta provides all information in the datasheets on an “AS IS” basis and does not offer any kind of warranty through the information for using the product. In the event of any discrepancy between the information in the catalog and datasheets, the datasheets shall prevail (please refer to www.DeltaPSU.com for the latest datasheets information).
- Page 12 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Delta Electronics PMT-24V150W2BA...
