Delta PMT2 100 W Series Technical Data Sheet

TECHNICAL DATASHEET

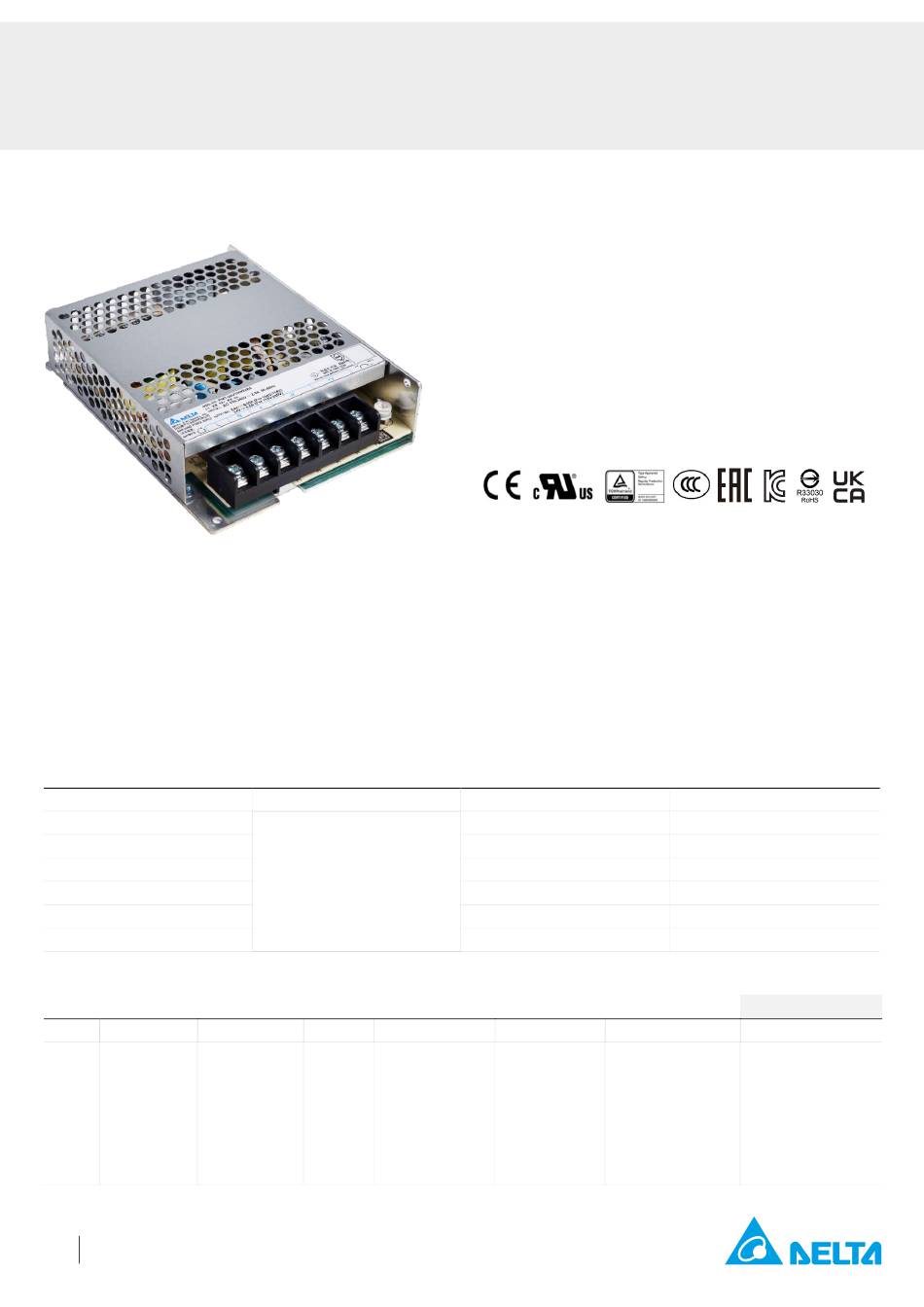

PMT2 Panel Mount Power Supply
PMT2 100 W series / PMT-
General Description
PMT 2 nd generation (PMT2) power supplies is designed in a low 30 mm profile and accepts universal AC input. The highly efficient
convection cooling construction can operate from -30°C to 70°C. The single output model is competitively priced for general industrial
and ITE applications. It complies to major safety approvals such as IEC/EN 60335-1, IEC/EN 61558-2-16, IEC 60950-1 & IEC/EN/UL
62368-1.
Model Information
PMT2 Panel Mount Power Supply
Model Number
PMT-12V100W2B☐☐
PMT-15V100W2B☐☐
PMT-24V100W2B☐☐
PMT-30V100W2B☐☐
PMT-36V100W2B☐☐
PMT-48V100W2B☐☐
Model Numbering
PM T –
□V
Panel Product Type Output Voltage
Mount
T – Enclosed 12 – 12 V
15 – 15 V
24 – 24 V
30 – 30 V
36 – 36 V
48 – 48 V
*1 : 12 V / 24 V models only
All parameters are specified at 25°C ambient and nominal AC input unless otherwise indicated.
1
www.DeltaPSU.com (July 2021, Rev. 08)
□
V100W2B
Input Voltage Range
90-264 Vac
100W 2
Output Single Phase
Power with Low Profile
□□
PMT2
Highlights & Features
Household appliance approvals according to IEC/EN 60335-1,
•
IEC/EN 61558-1 and IEC/EN 61558-2-16
Universal AC input voltage range
•
• No load power consumption < 0.3 W
Low profile design : 30 mm height
•
• OVC III, Pollution Degree 3
Wide operating temp -30°C ~70°C (Support -40°C cold start)
•
• Conforms to harmonic current IEC/EN 61000-3-2, Class A
High MTBF > 700,000 hrs per Telcordia SR-332
•
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x H):
Rated Output Voltage
12 Vdc
15 Vdc
24 Vdc
30 Vdc
36 Vdc
48 Vdc
B
□
Family Code: B Connector Type
With No PFC A – Terminal Block
PMT-☐V100W2B☐☐
0.285 kg (0.628 lb)
129 x 97 x 30 mm
(5.08 x 3.82 x 1.18 inch)
Rated Output Current
8.5 A
7.0 A
4.5 A
3.6 A
3.0 A
2.3 A
CC code
□
Blank – Without
connector cover &
coating
B – With single side
coating* 1
C – With connector
cover + single side
coating* 1
