INSTRUCTION MANUAL

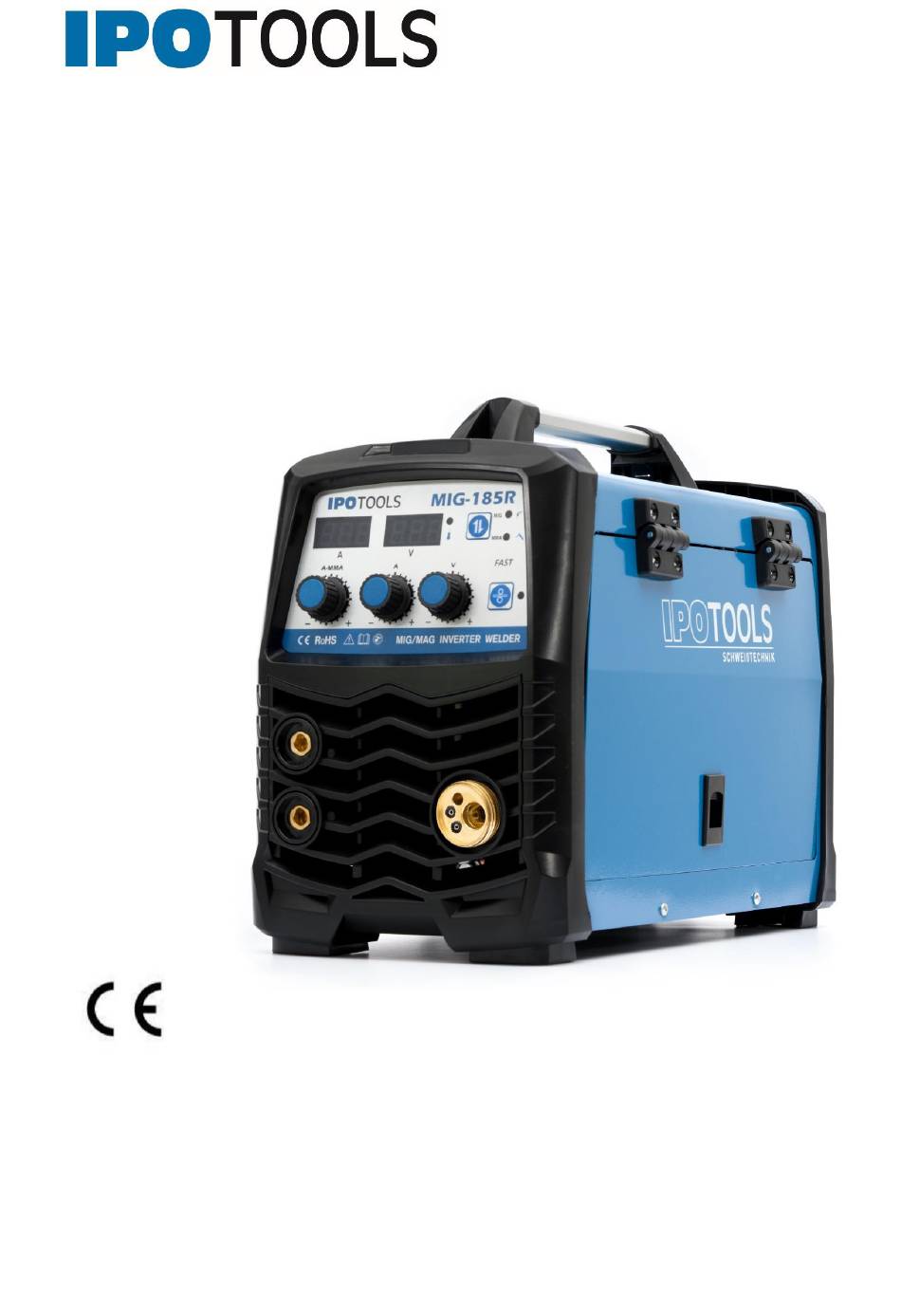

MIG-185R Welding machine
ORIGINAL INSTRUCTION MANUAL
Inverter welding machine
MIG-185R
IPO Technik-Handels GmbH
Otto-Lilienthal-Str. 4
88046 Friedrichshafen
Germany
W: www.ipotools.eu
E: info@ipotools.eu
Thank you for purchasing our welding machine. Before using the
product, please read and follow the instructions and safety
instructions carefully.
1
Advertisement
Related Manuals for IPOTOOLS MIG-185R
Summary of Contents for IPOTOOLS MIG-185R
- Page 1 INSTRUCTION MANUAL MIG-185R Welding machine ORIGINAL INSTRUCTION MANUAL Inverter welding machine MIG-185R IPO Technik-Handels GmbH Otto-Lilienthal-Str. 4 88046 Friedrichshafen Germany W: www.ipotools.eu E: info@ipotools.eu Thank you for purchasing our welding machine. Before using the product, please read and follow the instructions and safety...
- Page 2 INSTRUCTION MANUAL MIG-185R Welding machine TABLE OF CONTENT SAFETY MEASURES ....................... 3 TECHNICAL INFORMATION .................... 5 OPERATING CONDITIONS AND WORKING ENVIRONMENT ........6 BEFORE STARTING WORK .................... 6 CONTROL PANEL ......................7 WELDING METHODS ......................10 TROUBLESHOOTING .....................14...
- Page 3 INSTRUCTION MANUAL MIG-185R Welding machine Dear customer! Thank you for choosing to purchase our welding machine. Please read the instructions carefully for safe use and trouble-free operation of the device. Follow the instructions strictly for safe work! SAFETY MEASURES Caution: Improper use of any welding machine can result in injury or death.
- Page 4 INSTRUCTION MANUAL MIG-185R Welding machine • DO NOT SKIP THE MACHINE OPERATING CYCLE. The estimated cycle of the welding machine is a percentage of ten minutes, with this in mind the machine can operate safely in terms of output power.
- Page 5 In the event of an accident, immediately pull out the plug of the connecting cable! PURPOSE AND USE The IPOTOOLS MIG-185R is a welding machine with two welding functions. It can be used for MMA DC + and MIG / MAG DC + welding. Any other use may endanger the safety of the...
- Page 6 INSTRUCTION MANUAL MIG-185R Welding machine OPERATING CONDITIONS AND WORKING ENVIRONMENT 1. Operating conditions: • Voltage, voltage source: AC 220 V/230V/240V, • Frequency: 50/60Hz, • Reliable grounding. 2. Work environment • Relative humidity: not more than 90%, • Ambient temperature: -10 ℃ ~ 40 ℃, •...
- Page 7 INSTRUCTION MANUAL MIG-185R Welding machine CONTROL PANEL Description of the control panel and the front and back of the appliance: 1. Digital display: Amps 2. Digital display: Voltage 3. Display: Overload 4. Mode selection: MIG or MMA 5. Button: Fast wire movement 6.
- Page 8 INSTRUCTION MANUAL MIG-185R Welding machine 9. Control panel 10. Connection "-" 11. Connection "+" 12. EURO-central connector for MIG burners 13. Shielding gas supply 14. On / off switch 15. Connection cable 16. Fan...
- Page 9 INSTRUCTION MANUAL MIG-185R Welding machine 17. Tensioner leaver turn knob* 18. "-" Pol 19. "+" Pol 20. Welding wire reel holder 21. Drive wheel nut * Be careful not to overtighten the tensioner lever when mounting the wire!
- Page 10 INSTRUCTION MANUAL MIG-185R Welding machine WELDING METHODS MIG welding • Connect the MIG torch to the EURO central connector (12). • Connect the earth cable to the connection with negative polarity (10). • Connect a gas cylinder with a suitable gas hose to the gas connection (13) located on the back of the appliance via the pressure reducing valve.
- Page 11 INSTRUCTION MANUAL MIG-185R Welding machine MIG/MAG welding with/without gas: Settings a) Welding voltage regulator: Depending on the thickness of the material, set the wire feed to the appropriate level - control knob (6), the set value can be read from the digital display (2). Set it in half at first and after a few tries you will get a feel for the right settings, ideal values.
- Page 12 INSTRUCTION MANUAL MIG-185R Welding machine d) Recommended types of shielding gas: Steels: CO2, it is also possible to use mixtures e.g. 18% Argon and 82% CO2 Aluminum: Argon e) Guidelines for aluminum welding: Aluminum wire is softer and can be crushed or stuck on its way to the welding nozzle, so the following instructions must be observed: 1.
- Page 13 INSTRUCTION MANUAL MIG-185R Welding machine...
- Page 14 INSTRUCTION MANUAL MIG-185R Welding machine TROUBLESHOOTING Defect The cause The solution The power indicator light 1. No electricity 1.Check the input current is off 2. The connection to the 2. Replace the fuse welder does not establish Uneven wire drive 1.
- Page 15 INSTRUCTION MANUAL MIG-185R Welding machine With a normally operating 1. The mains contactor is 1. Check mains contactor faulty and replace if necessary drive, there is no welding current 2. The step switch is 2. Measure the operation of defective the stage switch 3.
