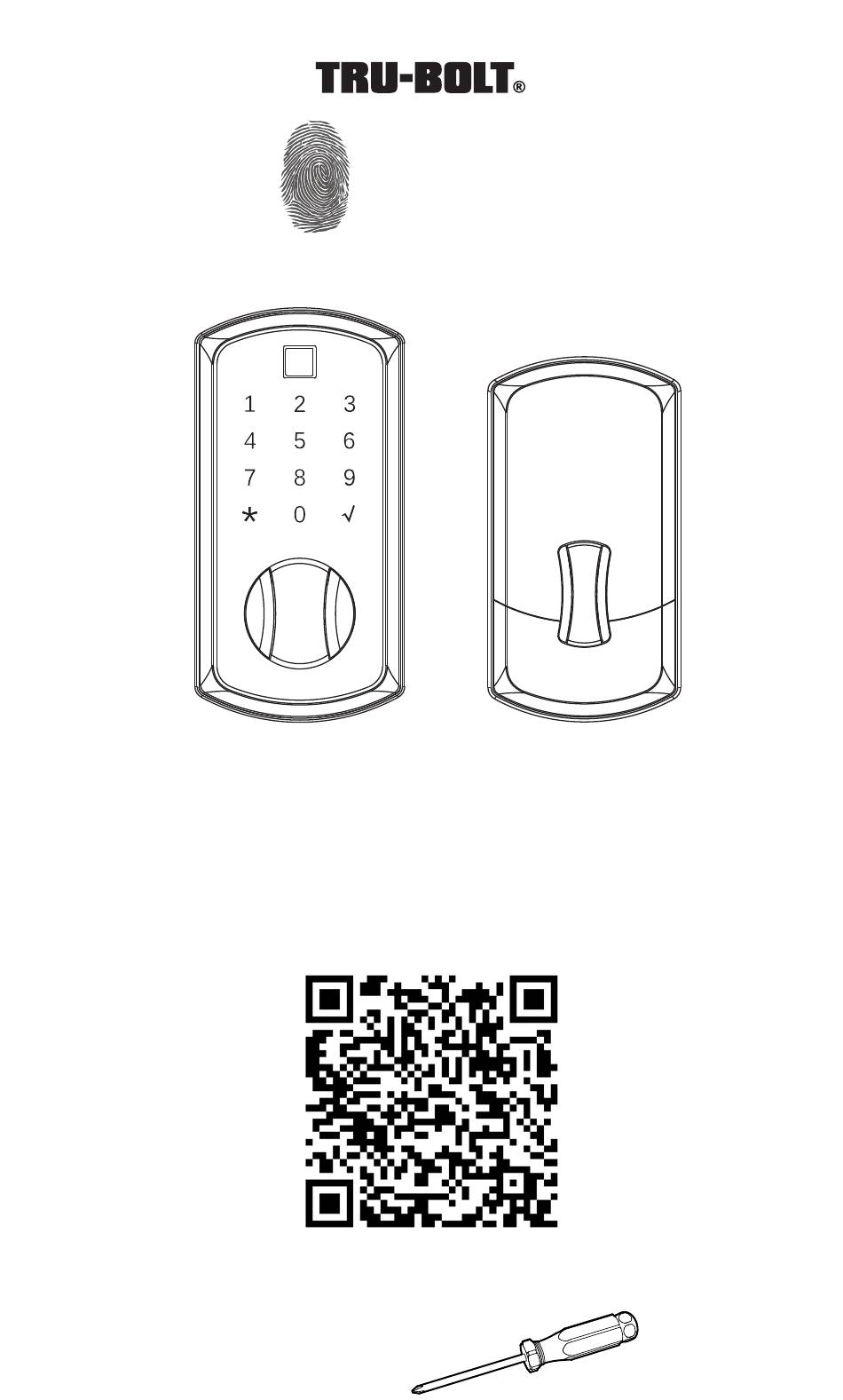

Biometric Enabled Deadbolt with Keypad
Read this manual carefully before
installing and operating!
Important
Use the QR code below for the most up to date instructions:
Tools Needed for Lock Installation:
• Phillips Screwdriver
Gemini
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gemini and is the answer not in the manual?

Questions and answers

Related Manuals for TRU-BOLT Gemini

Summary of Contents for TRU-BOLT Gemini

  • Page 1 ENGLISH Gemini Biometric Enabled Deadbolt with Keypad Read this manual carefully before installing and operating! Important Use the QR code below for the most up to date instructions: Tools Needed for Lock Installation: • Phillips Screwdriver...

  • Page 2: Installation Overview

    Installation Overview Control Wire Tailpiece Override Key Package Includes: 1 - Exterior Assembly 1 - Strike Plate 4 - 3/4” Screws 1 - Interior Assembly 1 - Mounting Plate 2 - Mounting Posts 1 - User Guide 1 - Adjustable Latch 2 - Keys 2 - 1 3/8”...
  • Page 3 Install Enclosed Latch and Strike Plate Do not over-tighten latch screws. NOTE: Do not extend Cylindrical Cover past 2-3/4” (70mm) 2-3/8” position 2-3/4” position TO CONVERT FROM 2-3/8” (60mm) BACKSET TO 2-3/4” (70mm) BACKSET 1. Hold latch with “UP” facing forward and thumb pressing on the bolt. 2.
  • Page 4 Install Exterior Assembly Make sure that the latch is EXTENDED. If it is retracted insert the screwdriver and rotate towards the door edge. Insert the Exterior Assembly onto the door with the Tailpiece going through the Latch in the HORIZONTAL POSITION. Carefully connect the control wires until they securely fit together.

  • Page 5: Install Interior Assembly

    Install Interior Assembly Work with the door open Be careful not to pinch wire when installing Make sure the thumb knob is in the vertical position. Remove battery cover Secure with included 1 3/8” screws...

  • Page 6: Test The Lock

    Test the Lock Lock and unlock using the turn knob to make sure the latch is opening and closing easily. If not, go back to step 4 and ensure you followed the steps. This Electronic lock requires (4) High Quality AA Alkaline batteries.

  • Page 7: Install Batteries

    Install Batteries Insert 4 High Quality Alkaline AA batteries. Replace battery cover Replace battery cover.
  • Page 8 Override Key Access (Optional) Insert override access key into slot on the bottom of the lock. Turn key to engage clutch. Rotate Knob to unlock. Congratulations, you have installed the Trubolt Gemini Biometric Deadbolt (1744010, 1744011) Turn Sheet over for Programing Instructions.
  • Page 9 Preparing Door Tools Needed for Door Preparation (if there is no knob hole): NOTE: Skip this step if your door comes with pre-drilled holes. 2 1/8” Hole Saw • Drill • 2 1/8” Hole Saw • 1” Hole Saw • 3/4” Chisel 1”...
  • Page 10 In order to program the lock, rst think of a new Administrator Code Before Use, Remove the Plastic Protective Film from the Touch Screen Con rm Go back to previous menu It is best to write down your new Administrator Code prior to step 2.
  • Page 11 Create A New Administrator Code NOTE: Do not press the buttons too quickly as the screen is sensitive To wake-up lock for Programming: 1. Press either Asterisk, or the Check Mark 2. Press the two illuminated Security Numbers, then proceed below: Input Admin code Press (default 123456)
  • Page 12 Set Up User Passcodes NOTE: Set yourself up as user code 01. Follow prompts to select your passcode. Follow prompts to add additional User Passcodes. Input your Admin code Press Press Press Input user I.D. (01-50) Press Input a 4-6 digit code Repeat the 4-6 digit code Press Press...
  • Page 13 Passcode Programming Functions NOTE: If the User ID Number is already used, there will be a related voice prompt. Each passcode/fingerprint needs its own ID Number. User Passcode Management: To Add or Remove User Passcodes 1. Input Administrator code 2. Press “ ” to confirm 3.
  • Page 14 Set Up User Fingerprint To wake-up lock for Programming: 1. Press either Asterisk, or the Check Mark 2. Press the two illuminated Security Numbers, then proceed below: Input your Admin code Press Input user I.D. (01-50) Press Press Press Record User Fingerprint Repeat User Fingerprint (x2)
  • Page 15 Fingerprint Programming Functions NOTE: When unlocking, if your fingerprint fails 3 times, you will be prompted to enter the two illuminated Security Numbers, then your User Passcode, then the Check Mark User Fingerprint Management: To add or remove User Fingerprints 1.

  • Page 16: Operating The Lock

    Operating the Lock NOTE: If your programmed fingerprint consistently fails to unlock the deadbolt, delete and re-add it per the instructions in Step 5 Locking: The deadbolt can be locked at any time 1. Turn the thumb knob to lock the deadbolt Unlocking: Fingerprints or User Passcodes can unlock the deadbolt Fingerprint...

  • Page 17: Additional Programming Functions

    Additional Programming Functions Voice Guide 1. On (Default setting) 1. Input Administrator Code 2. Press “4” 3. Press “1” 2. Off 1. Input Administrator Code 2. Press “4” 3. Press “2” Restore factory settings 1. Press any key to wake up the touchpad 2.
  • Page 18 User Passcode Record User Passcodes Must be 4-6 Digits Long ID Number 01 Should be Reserved for the Owner User Name User Passcode NOTE: Each Passcode and Fingerprint takes the space of one of the available 50 ID Numbers...

  • Page 19: Troubleshooting

    In no event shall Tru-Bolt® be liable for any special, incidental or consequential damages. If this product[s] is...
