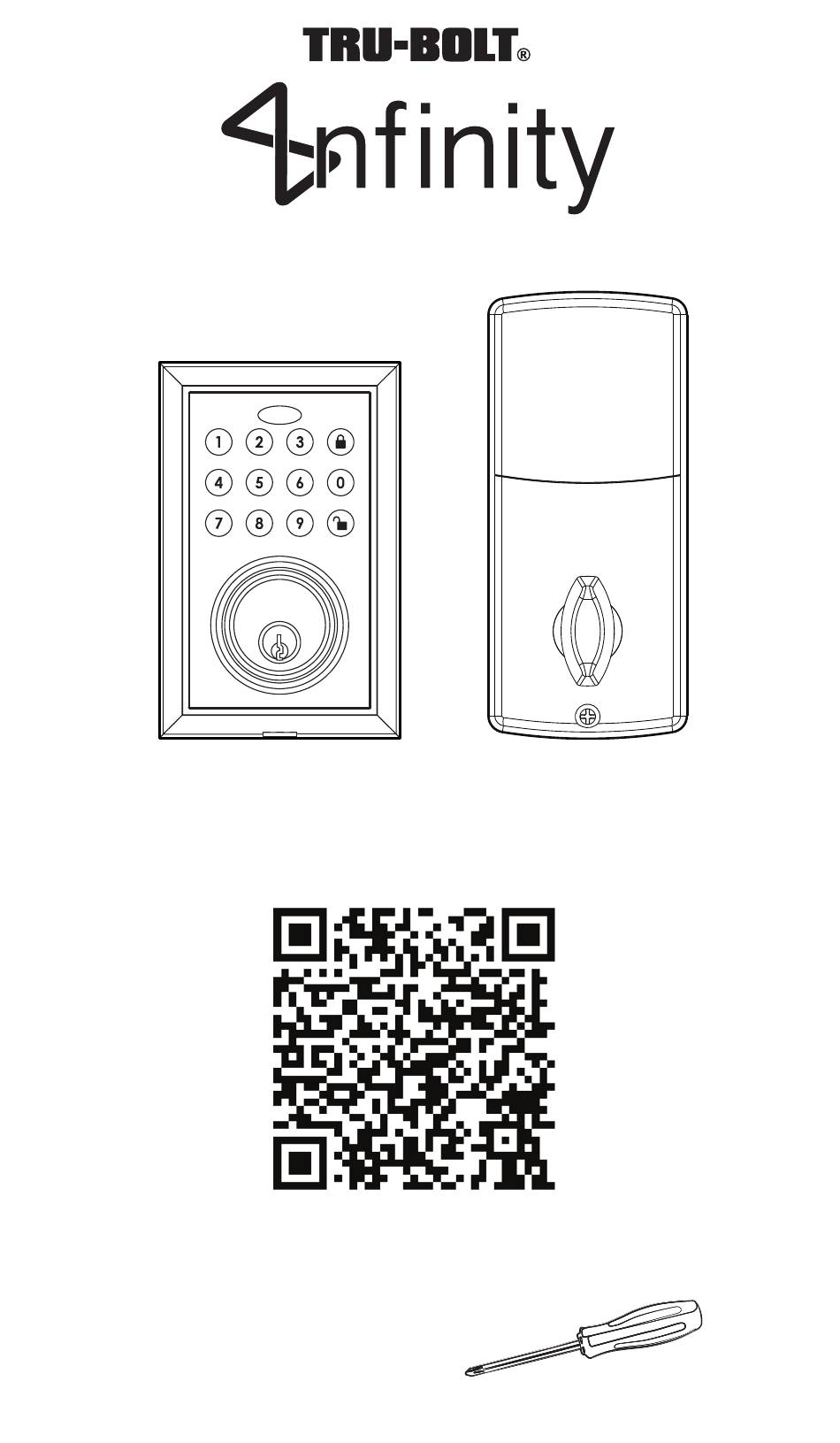

  • Page 1 ENGLISH Bluetooth Enabled Deadbolt with Keypad Important Use the QR code below for the most up to date instructions: Tools Needed for Lock Installation: • Phillips Screwdriver Read this manual carefully before installing and operating!

  • Page 2: Installation Overview

    Installation Overview Package Includes: 1 - Exterior Assembly 1 - Strike Plate 2 - 5/16” Screws 1 - Interior Assembly 1 - Mounting Plate 2 - 1” Screws 1 - User Guide 1 - Latch 4 - 3/4” Screws 2 - Keys 1 - 1 3/8”...
  • Page 3 Install Enclosed Latch and Strike Plate Do not over-tighten latch screws. NOTE: Do not extend Cylindrical Cover past 2-3/4” (70mm). 2-3/8” position 2-3/4” position TO CONVERT FROM 2-3/8” (60mm) BACKSET TO 2-3/4” (70mm) BACKSET: 1. Hold latch with numbers facing forward and thumb pressing on the bolt. 2.
  • Page 4 Install Exterior Assembly Check that the Rubber Gasket is secured on the Exterior Assembly (A). Insert the Exterior Assembly onto the door with the tailpiece going through the Deadbolt VERTICAL POSITION. Latch in the Route the Control Wire through the door UNDER the Deadbolt Latch. Make sure the door is shut, lock and unlock using the key, ensure that the latch is operating smoothly and is aligned properly without scraping the strike plate.

  • Page 5: Install Interior Assembly

    Install Interior Assembly Carefully insert control wire into the wire connector Work with the door open NOTE: Make sure the connector dots line up with the dots on the controle wire...

  • Page 6: Test The Lock

    Install Interior Assembly NOTE: Make sure the Turn Knob is in the vertical position. Be careful not to pinch the control wire when assembling. Turn Knob Test the lock Lock and unlock using the turn knob, make sure the latch is opening and closing easily.
  • Page 7 Install Batteries and Cover This Electronic lock requires (4) High Quality AA Alkaline batteries. When all 4 batteries are installed in the correct position, you should hear 2 beeps and the keypad will illuminate. The Lock motor will engage and do a series of locking and unlocking motions in order to automatically determine your door “Handing”...

  • Page 8: Testing Operation

    Testing Operation Test the lock button with door open Test unlocking Press 1-2-3-4-...
  • Page 9 Preparing Door Tools Needed for Door Preparation (if there is no knob hole): NOTE: Skip this step if your door comes with pre-drilled holes. 2 1/8” Hole Saw • Drill • 2 1/8” Hole Saw • 1” Hole Saw • 3/4” Chisel 1”...

  • Page 10: Programming Instructions

    Programming Instructions Download the My Key Mobile App from the APP store or Google Play...

  • Page 11: Register An Account

    Register an Account 1. Press “Register” on the login screen 2. Enter your phone number and prefered password 3. Press “Get Code” and enter the verifiation 4. Success! Use the selected phone # and code recieved via text msg in the required field password to log into your My Key Moblie App...
  • Page 12 Add a Lock Press Any Key on the Keypad to Wake up Lock. The Keypad Must be Lit in order to add the Lock 1. Press the “+” on the lock screen 2. Select Door Lock 3. Press the “+” next to the lock 4.
  • Page 13 Change Admin Passcode Passcode can be used to unlock from keypad 1. Press the settings “ ” in the 2. Select Basics from the setting list top right of the lock screen 3. Select “Admin Passcode” 4. Set your new 6-digit Admin Passcode...
  • Page 14 Locking and Unlocking via APP Tap the Lock Icon “ ” to unlock door Hold the Lock Icon “ ” to lock door...
  • Page 15 Creating and Sending eKeys 1. On the Lock Screen select the 2. Select SEND eKEYS eKey Icon 3. Select Validity Period 3. Enter the recipiants Phone # (Timed, Permanent, etc.) and Name. Hit send to confirm...
  • Page 16 Creating Custom Passcodes 1. On the Lock Screen select the 2. Select GENERATE PASSCODES Passcode Icon 3. Select “Custom” and select the duration 4. Enter the desired 4-9 digit passcode or toggle permanent. Press Set Passcode...

  • Page 17: Additional Programming Functions

    Additional Programming Functions You can also use the APP to make these changes TURN ON/OFF AUTO LOCK FUNCTION a. Input the Admin Passcode - Green light and beep c. 5 e. Input time (20 - 900 seconds, and 00 to turn off) - Green light and beep VACATION MODE DISABLE VACATION MODE...

  • Page 18: Troubleshooting

    Troubleshooting Issue Solution Lock will not function • Check that all batteries are fresh high quality Alkaline Batteries • Check for proper polarity (+ -) of all batteries electronically. • Check that the Control Wire is attached to the Interior Assembly Lock gives error signal •...
  • Page 19 In no event shall Tru-Bolt® be liable for any special, incidental or consequential damages. If this product[s] is...
