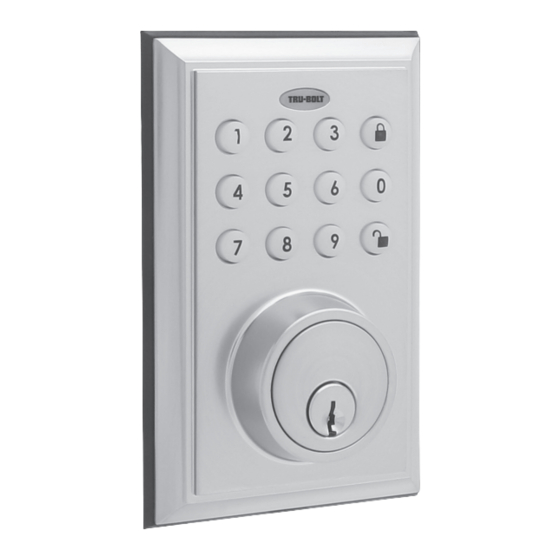

- Page 1 Bluetooth Square Electronic Deadbolt M1742002 1742006 V1...
-
Page 2: Table Of Contents
INDEX I. INSTALLATION INSTRUCTIONS Package Contents / Tools Required.............Page 1 Prepare Door and Jamb.................Page 2 Adjusting Deadbolt Latch Set...............Page 3 Installing Deadbolt Latch Set............... Page 4 Preparing Interior Assembly..............Page 5 Installing Exterior Assembly..............Page 6 Installing Interior Assembly..............Page 7-8 II. MOBILE APPLICATION INSTRUCTIONS My Key Mobile™... -
Page 3: Installation Instructions
I. INSTALLATION INSTRUCTIONS PACKAGE CONTENTS Deadbolt Latch Set (Adjustable) Entry keys (2 ea.) 2-3/8” (60mm) to 2-3/4” (70mm) Mounting Plate Deadbolt Strike Plate Interior Assembly Exterior Assembly 5/16” (8mm) Screws - 2 ea. 7/8” (22mm) Screws - 2 ea. 1” (25mm) Screw - 1 ea. 3/4”... -
Page 4: Prepare Door And Jamb
PREPARE DOOR AND JAMB NOTE: For installation on doors with pre-drilled holes skip to page 4. 1. TEMPLATE a. Cut out template printed on page 15 & 16 of this Manual (Figure 1a). b. Fold template and place on door 36” (915mm) from the ground as marked (Figure 1b). -
Page 5: Adjusting Deadbolt Latch Set
ADJUSTING DEADBOLT LATCH SET NOTE: Deadbolt Latch Set is shipped with the backset set at 2-3/8” (60mm) Measure the backset (backset is distance between edge of the door and the center of Lock). 1. TO CONVERT FROM 2-3/8” (60mm) BACKSET TO 2-3/4” (70mm) BACKSET a. -
Page 6: Installing Deadbolt Latch Set
INSTALLING DEADBOLT LATCH SET 3. INSTALLING THE DEADBOLT LATCH SET (need phillips head screwdriver) a. Insert Deadbolt Latch Set into door edge hole with the word “UP” and the arrow on the extension plate facing UP. Cross shaped spindle connector will be at the bottom of the Deadbolt Latch Set (Figure 3a). -
Page 7: Preparing Interior Assembly
PREPARING THE INTERIOR ASSEMBLY 5. UNPACK THE INTERIOR ASSEMBLY a. Remove the battery cover by sliding the cover upward. b. Locate the screws holding the Mounting Plate to the Interior Assembly. Remove the screws to release the Mounting Plate from the Interior Assembly. 6. -
Page 8: Installing Exterior Assembly
INSTALLING EXTERIOR ASSEMBLY 8. INSTALLING THE EXTERIOR ASSEMBLY Work with the Door Open for easy access. a. Unpack the Exterior Assembly. Use care to not scratch the green circuit board during handling and installation. b. Check that the Rubber Gasket is properly seated on the Exterior Assembly (Figure 8a). c. -
Page 9: Installing Interior Assembly
INSTALLING INTERIOR ASSEMBLY 11. ATTACH THE CONTROL WIRE TO THE INTERIOR ASSEMBLY a. Use care to attach the Control Wire male plug to the Interior Assembly female socket connector. b. Carefully insert the male plug, smooth side up, into the female socket on the interior assembly. - Page 10 Insert 4 AA high quality Alkaline batteries into the Battery Compartment in the direction noted +/- on the Compartment. The Lock will beep 2 times, the keypad will illuminate blue, and the Tru-Bolt button will flash green twice to signify that it has received power (Figure 13a).
-
Page 11: My Key Mobile™ Application Installation & Use / App Setup
II. MY KEY MOBILE™ APPLICATION INSTALLATION & USE PRIMARY APP ICONS VERY IMPORTANT After connecting to a new lock Unlock Messages Users User as an , the factory default Passcode will be deleted, and replaced with a new , which Menu Dropdown Save... -
Page 12: Add & Remove Locks / Using The App
ADD/REMOVE LOCKS AS A 1. Initially Connecting to a Lock You must wake up the lock a. Click the icon on the start screen by touching the physical b. Select which type of lock you would like to add keypad while connecting. c. -
Page 13: Lock Settings
USING THE APP 4. View Messages a. Open the App b. Select the icon at the top right of the Home screen c. Select the message you would like to read LOCK SETTINGS 1. Change Lock Name Lock Settings enable aspects a. -
Page 14: Ekey / Passcodes / Users / Records
EKEY 1. Sending Permanent eKeys as an eKeys allow registered a. Select the lock you want to send an eKey users to send/receive b. Select the in the bottom menu digital keys. c. Input the User account name to send the key to d. - Page 15 SEND PHYSICAL KEYPAD PASSCODES 3. Sending Cyclic (Recurring) Passcodes as an a. Select the lock you want to send a Passcode for b. Select the in the bottom menu VERY IMPORTANT c. Select “Cyclic” from the top tabs Passcodes can be sent to any SMS d.
- Page 16 USERS 3. Rename Users a. Select the lock with the eKey you want VERY IMPORTANT to rename b. Select the in the bottom menu Make sure the eKey tab is selected c. Select the top eKey tab at the top. This will clear all eKeys d.
- Page 17 USERS 8. Rename Passcodes a. Select the lock with the Passcode you want to VERY IMPORTANT rename/name b. Select the in the bottom menu Make sure the Passcodes tab is c. Select “Passcode” from the top tab selected from the top. d.
-
Page 18: Main Menu
MAIN MENU System Settings The Main Menu allows you • Go to the System Settings under the “My Key Mobile™” app. Select to adjust features, and view below settings as desired. information about the App. • Pattern Password - Create a pattern to unlock the App. -
Page 19: Exterior Assembly Overview
III. KEY PAD PROGRAMMING - OPTIONAL EXTERIOR ASSEMBLY OVERVIEW Green • Indicates successful programming step INDICATOR • Indicates unlocking is successful LIGHT • Indicates failed programming step • Indicates locking is successful LOCK BUTTON - Use to lock door Lock UNLOCK BUTTON - Used to unlock door Unlock... -
Page 20: Restore Factory Settings
PROGRAMMING PHYSICAL KEYPAD 1. Turn On/Off Auto Lock Function The Physical Keypad is used a. Input the to lock and unlock the door, and program functions - Green light and beep c. 5 VERY IMPORTANT e. Input time (20 - 900 seconds, and 00 to turn off) If you have connected the lock to the My Key Application, the default - Green light and beep... -
Page 21: Disable Vacation Mode
PROGRAMMING PHYSICAL KEYPAD 5. Add Administrator The lock must be new. To add the administrator you must use the App. Press any button on the keypad to wake up lock in order to connect. 6. Customize Passcodes Received from the App a. -
Page 22: Consumer Friendly Message Guide / Programming Records
CONSUMER FRIENDLY MESSAGE GUIDE Unlock / Valid programming: 1 long beep and LED illuminates green Lock: 2 short beeps and LED illuminates red Invalid Programming: 2 short beeps and LED flashes red twice Low Voltage: Beeps for 5 seconds - 10 times Super Low Voltage: 4 short beeps and LED flashes red four times 4 Incorrect code entry attempts:... -
Page 23: Installation Trouble Shooting
IV. ASSISTANCE - INSTALLATION TROUBLE SHOOTING Issue Solution Direction switch is set to incorrect setting. Latch Working • Remove the Interior Assembly and move the switch to the opposite Backwards- direction. Lock unlocks when lock • Check that your switch is set in the correct position Left or Right button is pushed or locks Handed door. - Page 24 Page Intentionally Left Blank Page 22...
- Page 25 Page 23...
-
Page 26: Template
BACK OF TEMPLATE Page 24... -
Page 27: Consumer Assistance
CONSUMER ASSISTANCE EMAIL: LHICustomerService@lewishymaninc.com WEBSITE: www.truboltlocks.info ADDRESS: Consumer Assistance Dept. Lewis Hyman, Inc. 860 East Sandhill Avenue Carson, CA 90746 USA TELEPHONE: US/Canada 800-860-1677 Ext. 1801 (Toll Free) CALL CENTER HOURS: US/Canada 7am – 5pm (Pacific**) Mon – Fri (Subject to change) CALL BACK HOURS: Other Countries 7am –... -
Page 28: Fcc Regulatory Compliance
Regulatory Compliance This product complies with standards established by following regulatory bodies: - Federal Communications Commission (FCC) This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation IMPORTANT! Changes or modifications not expressly approved by the manufacturer... -
Page 29: Limited Warranty
In no event shall Tru-Bolt® be liable for any special, incidental or consequential damages. If this product[s] is...
