- Page 1 ZigBee network control module Model: RX10RF Manual...
-
Page 2: Product Compliance

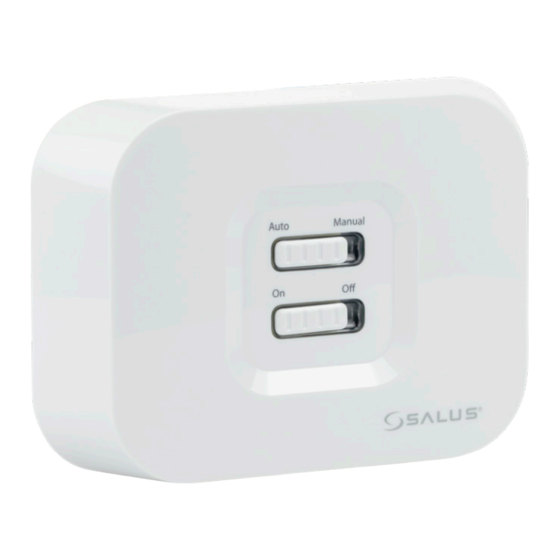

Introduction The RX10RF control module is an external element in the SALUS Smart Home system which turns ON when a heating signal is received from thermostats in the same network. It can replace a wired connection between the KL08RF wiring centre and the boiler. In a system with TRV heads it is a optional device that activates the heat source. -
Page 3: Terminals Description
Volt-free output, normally open contacts Installation The RX10RF receiver should be mounted in a place where 230 V power supply is available and wireless connectivity can not be disrupted. The receiver’ s power supply should be protected by a fuse (max 16 A). The receiver’... -
Page 4: Wiring Diagrams
Wiring diagrams Receiver configured in the RX1 mode (wireless boiler control module) 230 V AC BOILER TERMINALS TO CONNECT ON/OFF TYPE THERMOSTAT (ACCORDING TO BOILER INSTRUCTION) Receiver configured in the RX2 mode (individual control for separate heating zone) 230 V AC... - Page 5 ZigBee network (from many heating zones). Module configured in RX1 mode - will NOT turn ON the other RX10RF receiver (configured in mode RX2) in the same network. Receiver configured in the RX1 mode - as a remote boiler control module.
- Page 6 SALUS Smart Home series thermostat). Module configured in RX2 mode - will turn ON the other RX10RF receiver (configured in RX1 mode) in the same network. Receiver configured in the RX2 system - for individual control heating zone.
- Page 7 „refresh” module. When the pairing process of the receiver is successful, the light will stop flashing. RX10RF pairing with the ZigBee network is automatic, it is not necessary to press any additional buttons. To pair other SALUS Smart Home devices - read the appropriate model’s manual instructions.
- Page 8 „RESET” button in order to „refresh” module. Name this equipment Finish RX10RF When the pairing process of the receiver is successful, the RX10RF module will appear in the application and the light on the module will stop flashing.
- Page 9 Two modules in one ZigBee network Note: Two RX10RF modules (receivers) can be paired with one UGE600 gateway: • first in RX1 mode • second in RX2 mode START RX1 START RX2 Any of thermostat can turn ON Just one thermostat can turn ON...
-
Page 10: Reset Button
WARNING! ISOLATE MAINS SUPPLY PRIOR TO OPENING UNIT. Reset RESET button At the bottom of the RX10RF there is a RESET button. Use it to refresh the module. If for some reason the RX10RF module does not work properly, press the RESET button as shown on the picture below, then disconnect the module from power supply for few minutes. - Page 11 Whinby Road, Barnsley S75 3SP, United Kingdom www.salus-controls.eu SALUS Controls is a member of the Computime Group. Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specification, design and materials of products listed in this brochure without prior notice.
