Summary of Contents for Panduit MP100

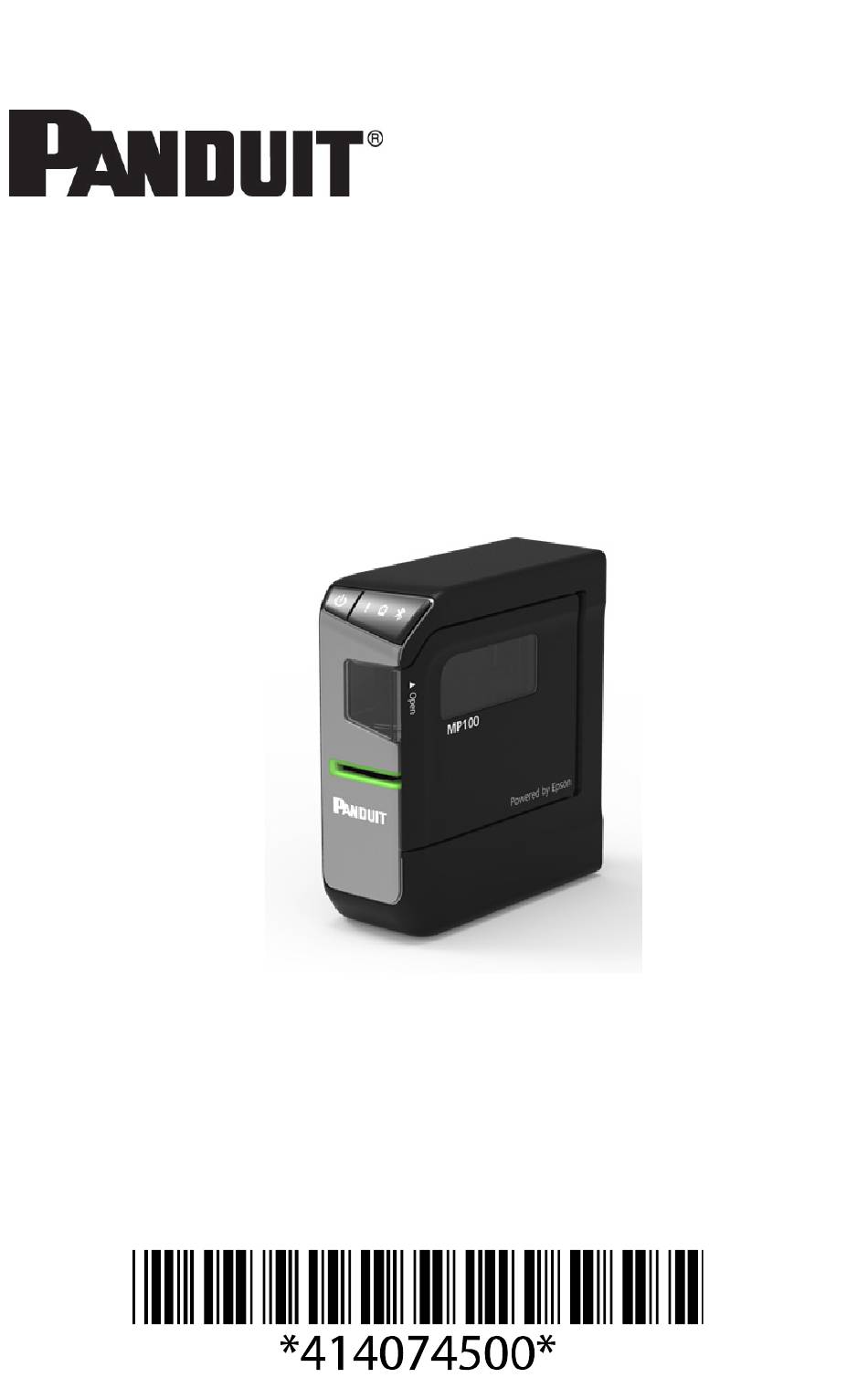

- Page 1 MP100 PRINTER Quick Reference Card Printer Tech Support 1-866-871-4571 GA-TECHSUPPORT@PANDUIT.COM Rev. 3.8 - 9/2/2020...
- Page 2 MP100 Printer and Accessories Part No. Description MP100 Includes MP100 printer with protective impact bumper, 1 cassette of T100X000VPM-BK, USB cable, and power adapter (MP100-AC). For use in North America MP100/E Includes MP100 printer, 1 cassette of T100X000VPM-BK, USB cable, power adapter (MP100-AC) and international power cord(s).
-
Page 3: Typical Application
Label Cassette Types Label Example Part Typical Material Application Self-Laminating S000X150VAM Wire/Cable Marking Vinyl Tape Heat Shrink H000X044H1M Wire/Cable Marking Tubing Nylon Cloth T100X000C1M-BK Wire/Cable Marking Tape Polyolefin Tape T038X000FJM-BK Terminal Block Labeling Colored Vinyl T100X000VPM-BK Safety/Facility and Tape General Identification Clear Polyester T100X000YKC-BK Safety/Facility and... -
Page 4: Getting Started
Getting Started • Included Items MP100 Printer Label Cassette USB Cable with impact bumper AC adapter Documents Compliance Markings... -
Page 5: Printer Setup
Printer Setup Using batteries: CAUTION Always use AA-size alkaline batteries. Remove the impact bumper. Open the battery cover at the bottom of the printer. Insert 6 AA alkaline batteries. Using the AC Adapter: CAUTION Always use the included AC adapter. Connect the included AC adapter to the printer and plug the power plug into a power outlet. - Page 6 • Insert a label cassette into the printer: Remove any slack in the tape inside the cassette (if needed) Use a pen or a pencil Open the cassette door/printer cover. Place the cassette into the printer as shown. Pass the end of the tape through the gap.
- Page 7 Printer Components and Functions: ■Rear ■Front Can be opened to insert a tape cartridge, Impact bumper Protects the printer. Printer cover or for print head cleaning. button Turns the printer power ON/OFF. Press this button and the button at 9. Bluetooth Indicates the printer's error status.
- Page 8 Connecting Printer to Mobile Device 1. Install the Panduit mobile applications such as "Panduit Easy- Mark iLabel" and "Panduit Easy-Mark Network". Bluetooth connection setup (pairing). CAUTION Place your mobile device no more than one meter away from the printer when making the settings.
- Page 9 Printing from Mobile Apps • Panduit Easy-Mark iLabel and Easy-Mark Network mobile printing apps are available for iOS and Android devices. Visit online app store or www.panduit.com • For iOS device, please set Auto-Lock to Never or longest time allowed.
- Page 10 Easy-Mark iLabel App • Text • Voice to Text • Barcodes • QR Codes • Date / Time Stamp • Save Labels • Share and Store Files Online • Many Font Sizes...
- Page 11 Easy-Mark Network App • Create cable markers • Create labels for patch panels, faceplates, and modules • Text • Voice to Text • Save Labels • ANSI/TIA-606 compliance • Connect to Fluke LinkWare™ Live...
-
Page 12: Connecting Printer To Computer
Connecting Printer to Computer CAUTION Do not connect the printer and computer before installing the software. Connect the printer as directed in the installation screen. MEMO The procedure given here is for Windows computers. For information on how to turn on the Bluetooth feature of the computer, consult the documentation for the computer. -
Page 13: Troubleshooting
For Bluetooth ® Turn on the printer. Select the checkbox as shown below. Bluetooth If the function of the printer is disabled, enable it. Bluetooth See "Enabling the Function". Bluetooth Turn on the feature of your computer. Select the printer as shown below. Troubleshooting Meanings of lamps The lamps indicate printer statuses. - Page 14 Printing from Easy-Mark Plus Software • Connect the MP100 printer to a computer with USB cable. • Print from Easy-Mark Plus Labeling Software. Easy- Mark Plus is sold separately and includes the MP100 driver. o Easy-Mark Plus on disc: EMPLUS-CD...
-
Page 15: Additional Support
• Product specification and safety information. Warranty Registration Path: Support / Product Registration Related Products • MP Label Cassettes • MP300 Printer • Easy-Mark Plus Labeling Software PANDUIT TECHNICAL SUPPORT 1-866-871-4571 GA-TECHSUPPORT@PANDUIT.COM Part Number: MP100-QRC-EN, Rev 3.8 DWG Number: 00210ECB...
