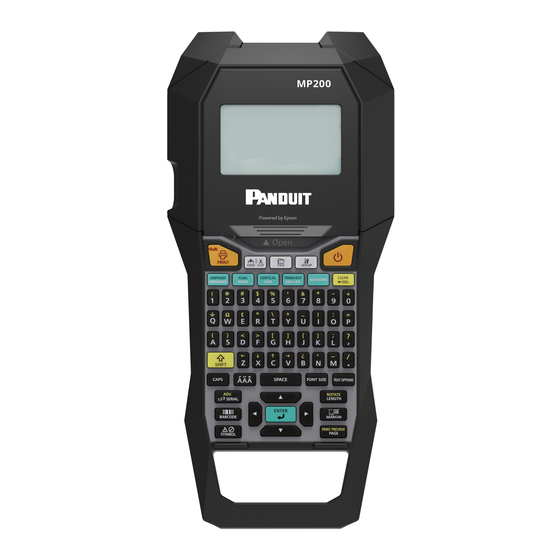

MP200 PRINTER
Operator's Manual
Read this document carefully to use this product safely and correctly. If your
product is faulty, please read the warranty card on the website. If you require
further assistance, contact Panduit customer service.
Please also visit us at www.panduit.com for additional support. You can also
download the latest version of this Operator's Manual from the website.
Panduit Technical Support
Global Customer Service
• CS@PANDUIT.COM
• GA-TECHSUPPORT@PANDUIT.COM
• U.S. and Canada: 800-777-3300
• U.S. and Canada: 1-866-871-4571
• Europe: 31.546.580.452
• Europe, Middle East, and Africa:
44.20.8601.7200
• Latin America: 52.33.3777.6000
• Latin America: 52.33.3777.6000
• Asia Pacific: 65.6379.6700
• Asia Pacific: 65.6305.7575
Content menu
Specifications ......................................................... 2
Troubleshooting ................................................... 4
Part Names and Functions ................................ 5
Start Here ................................................................ 7
Cleaning ................................................................... 14
Initializing the Settings ...................................... 15
Label Functions ..................................................... 16
Key Menu Index .................................................... 43
Frame and Table Lists .......................................... 61
Symbol List ............................................................. 63
Technical Support ................................................ 65
Notation used in this manual
Indicates information that, if ignored, could possibly result in serious
WARNING
personal injury or even death due to incorrect handling.
Indicates information that, if ignored, could possibly result in
CAUTION
personal injury, physical damage, or damage to equipment due to
incorrect handling.
Attention
Indicates important information about the printer.
Indicates additional information and points which may be useful to
MEMO
know regarding a topic.
Indicates a place with more detailed information.
Shows an image of the label to be used as an example.
,
,
Indicates the buttons on the printer.
Indicates the menu items, messages shown on the display, or the
"Name"
name of a manual. Example: "On", "Start print?"
©2021 Panduit Corp. ALL RIGHTS RESERVED.
M00140500EN
