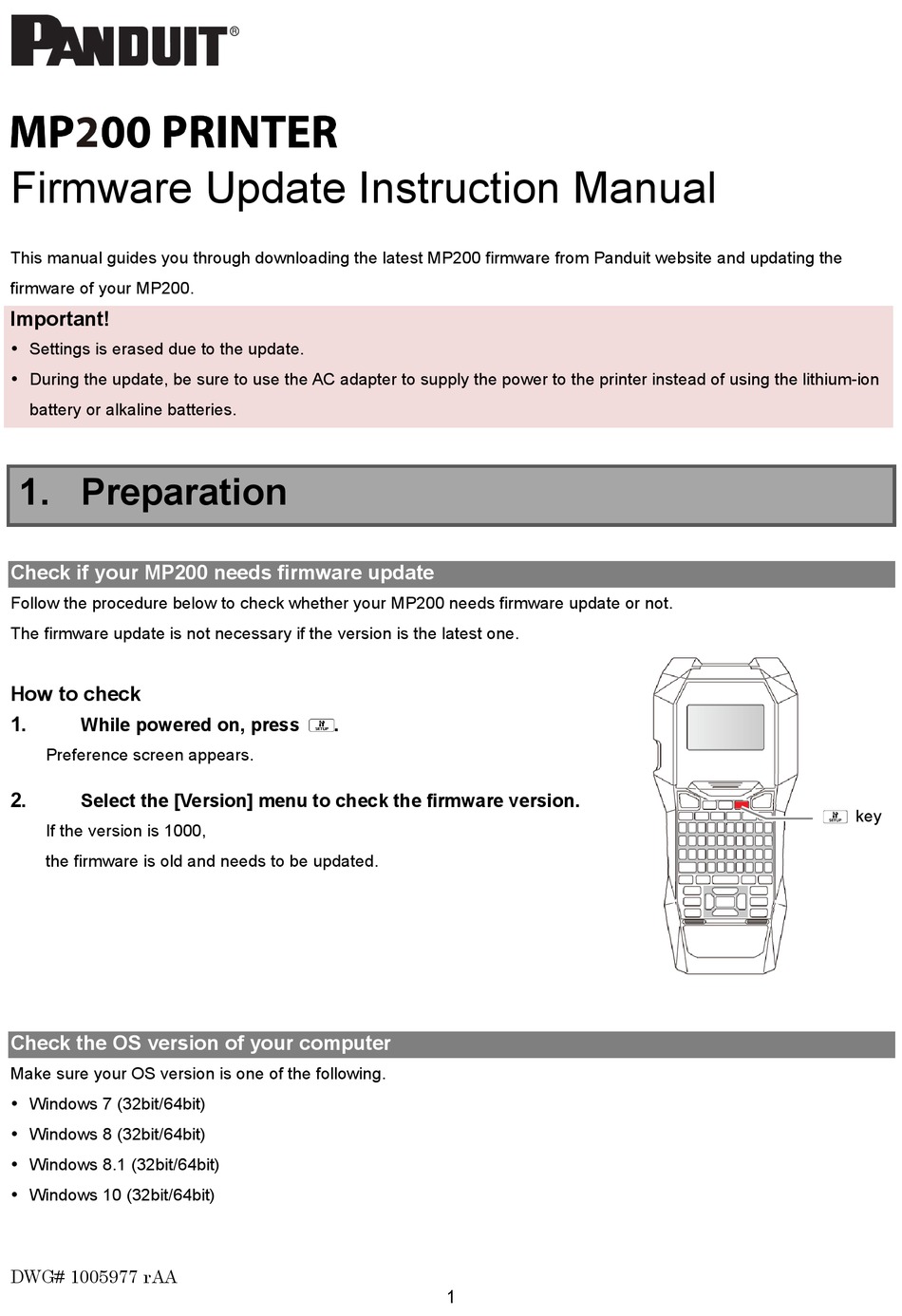

Firmware Update Instruction Manual
This manual guides you through downloading the latest MP200 firmware from Panduit website and updating the
firmware of your MP200.
Important!
Settings is erased due to the update.
During the update, be sure to use the AC adapter to supply the power to the printer instead of using the lithium-ion
battery or alkaline batteries.
1. Preparation
Check if your MP200 needs firmware update
Follow the procedure below to check whether your MP200 needs firmware update or not.
The firmware update is not necessary if the version is the latest one.
How to check
1.
While powered on, press
Preference screen appears.
2.
Select the [Version] menu to check the firmware version.
If the version is 1000,
the firmware is old and needs to be updated.
Check the OS version of your computer
Make sure your OS version is one of the following.
Windows 7 (32bit/64bit)
Windows 8 (32bit/64bit)
Windows 8.1 (32bit/64bit)
Windows 10 (32bit/64bit)
DWG# 1005977 rAA
.
1
key
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Panduit MP200
Summary of Contents for Panduit MP200
- Page 1 Firmware Update Instruction Manual This manual guides you through downloading the latest MP200 firmware from Panduit website and updating the firmware of your MP200. Important! Settings is erased due to the update. During the update, be sure to use the AC adapter to supply the power to the printer instead of using the lithium-ion battery or alkaline batteries.
- Page 2 Download “UpdaterMP200_V1100.exe” from Panduit website and save it to your desktop. https://www.panduit.com/en/support/download-center/identification-software-firmware-and-printers.html 2. Firmware Update Procedure Follow the procedure below to update the firmware of your MP200. 1. Put the MP200 into “update” mode While powered off, press and hold , then press to turn on the printer in the “update”...
- Page 3 2. Update the firmware CAUTION Only one printer can be updated at a time. Do not connect two or more printers to the computer via USB. During the update, do not turn the printer off or disconnect the USB cable. Connect the printer to the computer with a USB cable.
- Page 4 How to confirm if the update was completed successfully Disconnect the USB cable from the printer. Press Preference screen appears. Select [Version]. The firmware version is displayed. If the version is “1100”, the update has successfully completed. DWG# 1005977 rAA...
- Page 5 Check if the USB cable is firmly connected to the printer and the computer. Then retry the update. >> Update the firmware MP200 is not connected. Put your MP200 into “update” mode, and then connect it to the computer. DWG# 1005977 rAA...
- Page 6 Document Revision History Revision Description of Change Date Rev. By Approved by ECN# Initial Release MP200 Firmware 3-29-2022 JSUN ALP, JADE, 120035/00 Updater Manual BRJO DWG# 1005977 rAA...
