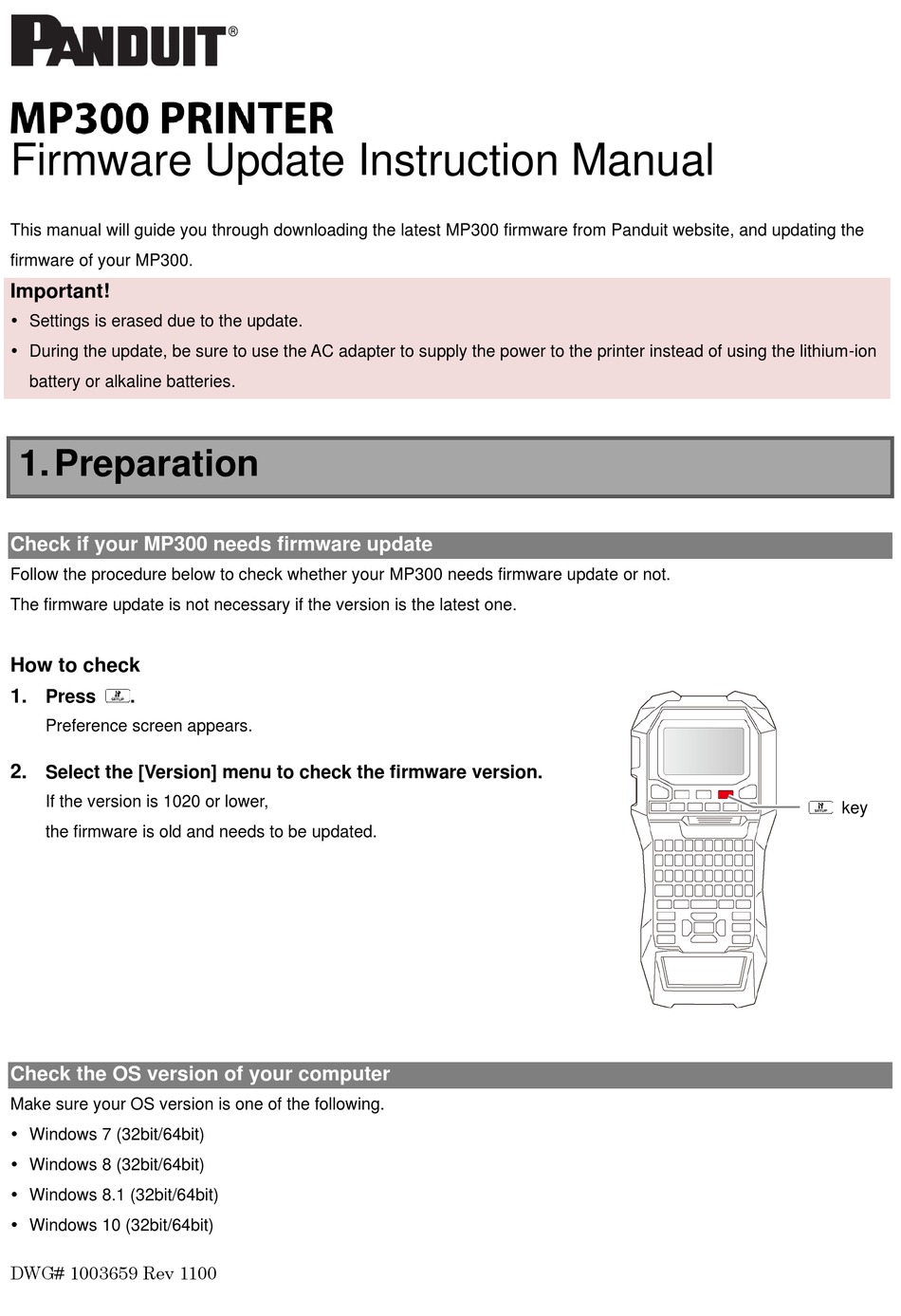

Firmware Update Instruction Manual
This manual will guide you through downloading the latest MP300 firmware from Panduit website, and updating the
firmware of your MP300.
Important!
 Settings is erased due to the update.
 During the update, be sure to use the AC adapter to supply the power to the printer instead of using the lithium-ion
battery or alkaline batteries.
1. Preparation
Check if your MP300 needs firmware update
Follow the procedure below to check whether your MP300 needs firmware update or not.
The firmware update is not necessary if the version is the latest one.
How to check
1.
Press
.
Preference screen appears.
2.
Select the [Version] menu to check the firmware version.
If the version is 1020 or lower,
the firmware is old and needs to be updated.
Check the OS version of your computer
Make sure your OS version is one of the following.
 Windows 7 (32bit/64bit)
 Windows 8 (32bit/64bit)
 Windows 8.1 (32bit/64bit)
 Windows 10 (32bit/64bit)
DWG# 1003659 Rev 1100
key

Advertisement

loading

Related Manuals for Panduit MP300

Summary of Contents for Panduit MP300

  • Page 1 Firmware Update Instruction Manual This manual will guide you through downloading the latest MP300 firmware from Panduit website, and updating the firmware of your MP300. Important!  Settings is erased due to the update.  During the update, be sure to use the AC adapter to supply the power to the printer instead of using the lithium-ion battery or alkaline batteries.

  • Page 2: Firmware Update Procedure

    Download “UpdaterMP300_V1100.exe” from Panduit website, and save it to your desktop. https://www.panduit.com/en/support/download-center/identification-software-firmware-and-printers.html 2. Firmware Update Procedure Follow the procedure below to update the firmware of your MP300. 1. Put the MP300 into “update” mode to turn on the printer in the “update” mode.
  • Page 3 2. Update the firmware CAUTION  Only one printer can be updated at a time. Do not connect two or more printers to the computer via USB.  During the update, do not turn the printer off or disconnect the USB cable. Connect the printer to the computer with a USB cable.
  • Page 4 How to confirm if the update was completed successfully Disconnect the USB cable from the printer. Press Preference screen appears. Select [Version]. The firmware version is displayed. If the version is “1100”, the update has successfully completed. DWG# 1003659 Rev 1100...
  • Page 5 Check if the USB cable is firmly connected to the printer and the computer. Then retry the update. >> Update the firmware MP300 is not connected. Put your MP300 into “update” mode, and then connect it to the computer. DWG# 1003659 Rev 1100...

  • Page 6: Document Revision History

    Document Revision History Revision Description of Change Date Rev. By Approved by ECN# Initial Release Firmware Updater 3-23-2020 JSUN RGB, 078211/00 Manual RCMC DWG# 1003659 Rev 1100...
