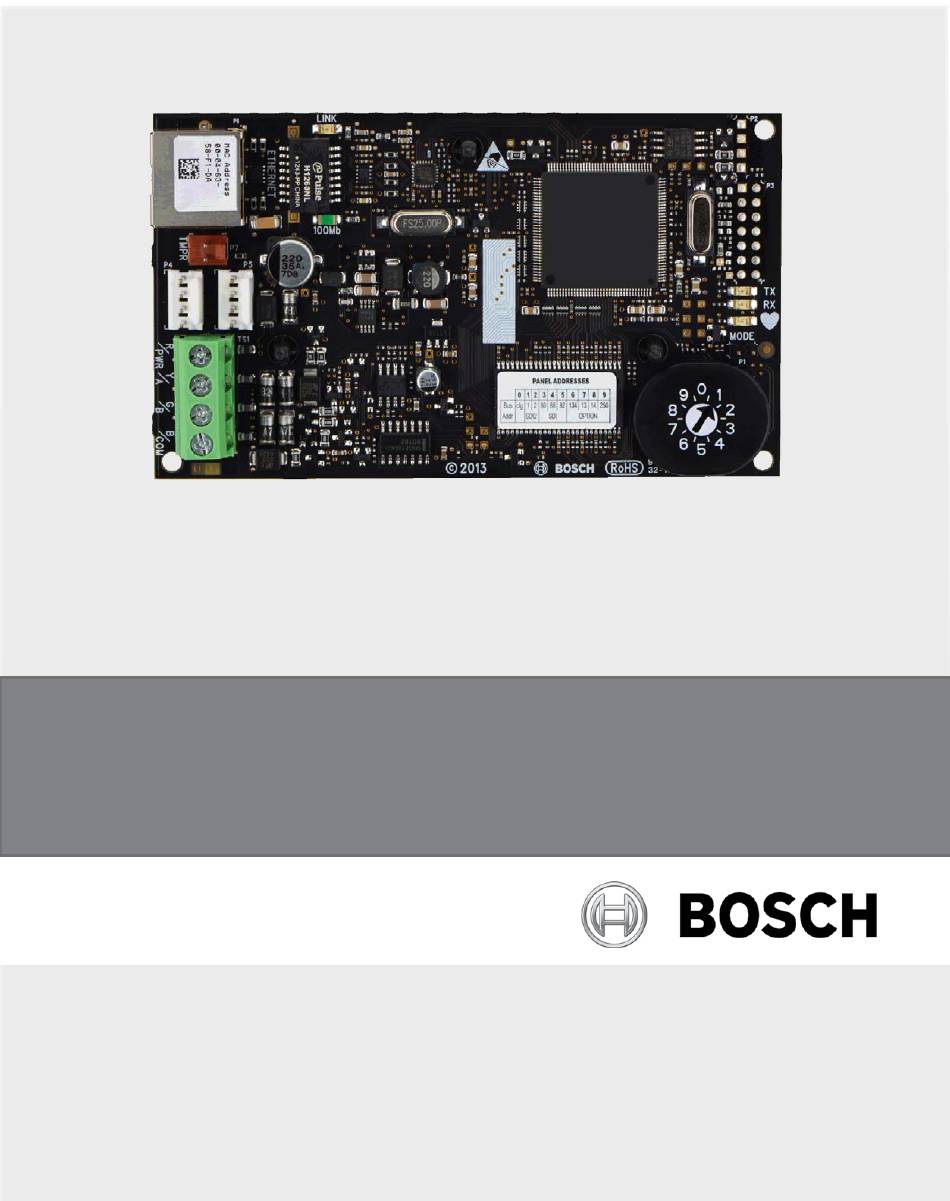

1 | Overview The Ethernet Communication Module (wired to a compatible control panel) is a four-wire powered SDI, SDI2, or option bus device that provides two-way communication with compatible control panels over IPv4 or IPv6 Ethernet networks. Figure 1.1: Board overview Callout ―...
Control Switch Control Bus type Function panels position panel address B9512G/ SDI2 Automation, B8512G, Remote B6512/B5512/ Programming, B4512/B3512, GV4, Solution Reporting 2000/3000 B9512G/ B8512G, GV4, Solution, 2000/3000 GV4,GV3, Automation GV2, D9412G/ Remote D7412G/ programming or D7212G v6.3 Reporting or higher GV4 and GV3 FPD-7024 Option...
F01U003734). 3.3 | Wire to the control panel When you wire a B426/B426-M to an SDI or SDI2 control panel, you can use either the module’s terminal strip labeled R, Y, G, B (PWR, A, B, COM) or the module’s interconnect wiring connectors (wire included).
Logging into web-based configuration (B426 Configuration Pages): Open an internet browser (Microsoft Internet Explorer or Mozilla Firefox) and type in the module’s IP address. The B426’s login page opens. Enter the password and click Login. The Device Information home page opens.
5 | LED descriptions The module includes the following on-board LEDs to assist with troubleshooting issues. Flash pattern Function Flashes once Normal state: Indicates normal operation state. every 1 sec 3 quick flashes Communication error state: Indicates a bus every 1 sec communication error.
Page 7
SP4. Refer to the control panel’s dcoumentation for timing parameter values. Copyright This document is the intellectual property of Bosch Security Systems B.V. and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly.
