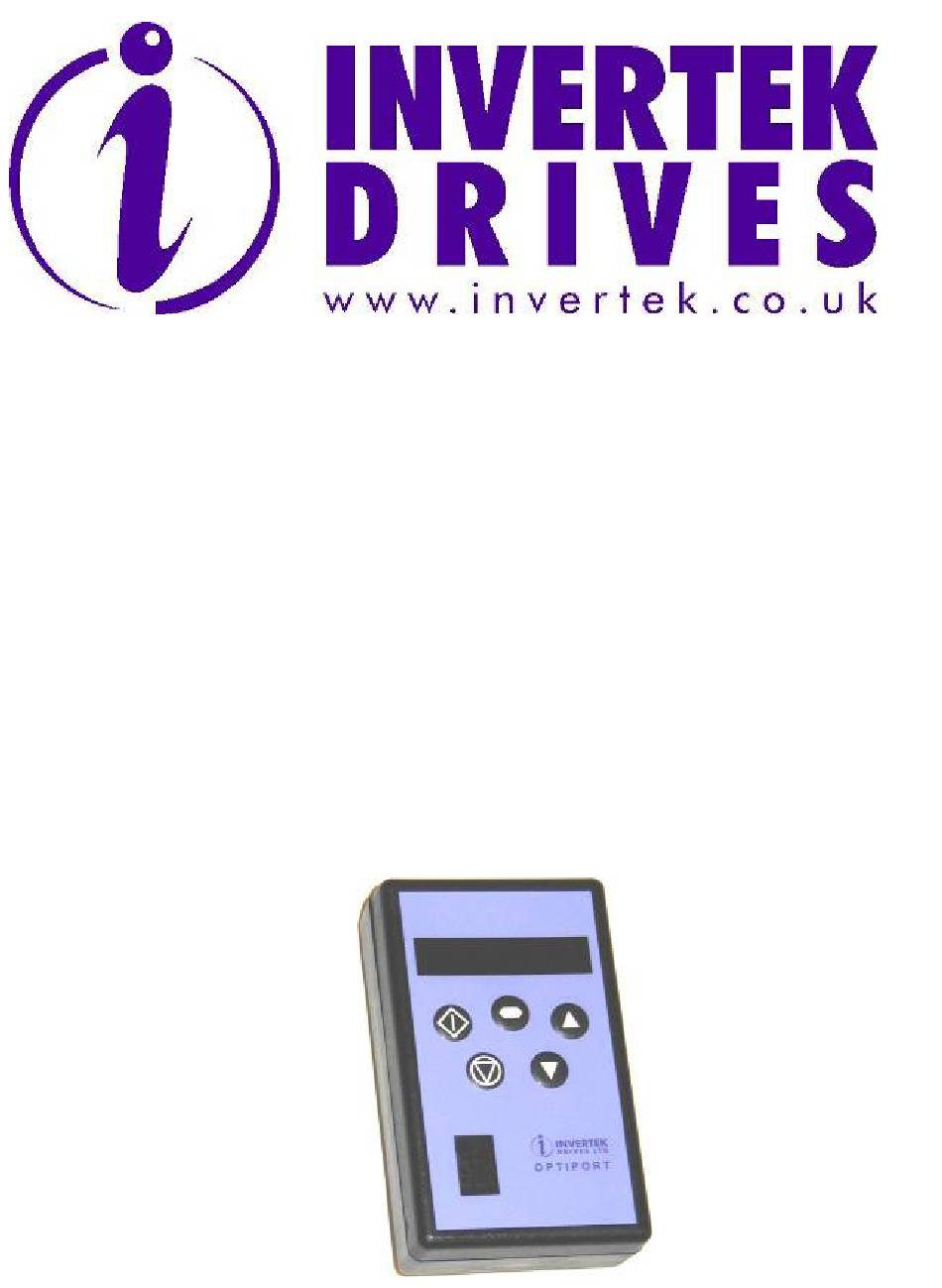

  • Page 1 OPTIDRIVE OPTIPORT USER GUIDE...
  • Page 2 User Guide without notice. SAFETY This option is specifically designed to be used with the Optidrive variable speed drive product and is intended for professional incorporation into complete equipment or systems. If installed incorrectly it may present a safety hazard.

  • Page 3: Safety Notices

    • Install the Option onto the It is the responsibility of the installer to Optidrive by inserting the row of ensure that the equipment or system 11 pins into the terminal connector into which the product is incorporated of the Optidrive, ensuring that the complies with the EMC legislation of terminals are tightened.
  • Page 4 THROUGH PANEL MOUNTING DETAILS Diagrams not to scale Panel cut-out details clearance MECHANICAL INSTALLATION – THROUGH PANEL MOUNT The panel on to which the Optiport is to be mounted should be cut out in accordance with the above diagram. After removing the Remove the four corner covers, remove the 4 screws holding the two halves of the OptiPort together.
  • Page 5 OptiPort display to match application requirements. • To scale the Optidrive speed, set P-42 = 0 and set P-41 to the scaling factor requried, where the displayed value is given by <Speed in Hz> x P-41 if P-10 = 0 <Speed in rpm>...

  • Page 6: Specification

    Optidrive will reduce the range. • When used as a remote keypad for the Optidrive, the OptiPort needs only to have its supply voltage (+24V) connecting between terminal P1 and P2 for complete functionality.

  • Page 7: Standards Conformity

    Panel mounted Panel OptiPort mounted OptiPort STANDARDS CONFORMITY An Optidrive fitted with this Option complies with the following standards: • CE-marked for Low Voltage Directive. • IEC 664-1 Insulation Coordination within Low Voltage Systems. • UL 840 Insulation Coordination for electrical equipment.
  • Page 8 FRONT PANEL MOUNTING DETAILS Diagrams not to scale Panel cut-out details M3 clearance 52.5 MECHANICAL INSTALLATION – FRONT PANEL MOUNT The panel on to which the Optiport is to be mounted should be cut out in accordance with the above diagram. The OptiPort should be secured in position on the panel using 2 M3 screws.

  • Page 9: Managing The Keypad

    MANAGING THE KEYPAD The OptiPort keypad is operated in an identical fashion to the keypad on the Optidrive. Set, press the Navigate key ⇔ for To access the Parameter >1 sec. • Scroll through P-01 to P-14 (and roll over to P-01) by pressing σ...
  • Page 10 To vary the speed in real time with P-12 set to 1: • Press the START key. The Optidrive will ramp up to the preset speed set in the digital potentiometer. • Press σ to increase speed.
  • Page 11 Parameter access lock 1: Parameter changes not saved on auto-save made but these will not be stored when the Optidrive powers down. When P-38 = 2, power down parameters are locked and cannot be changed thus preventing unauthorised access. 2: Read-only. No changes allowed.
  • Page 12 If P-47 = 3, the PI controller can be used to sum two analog values. To operate in this mode, set P-46 = 0 and ensure that P-44 = 0. P-43 can then be used as a scaling factor. When P-16 = -10..10 (bipolar input), the Optidrive analog input can be used as an +/- offset to the OptiPort analog input.
