www.somfy.com

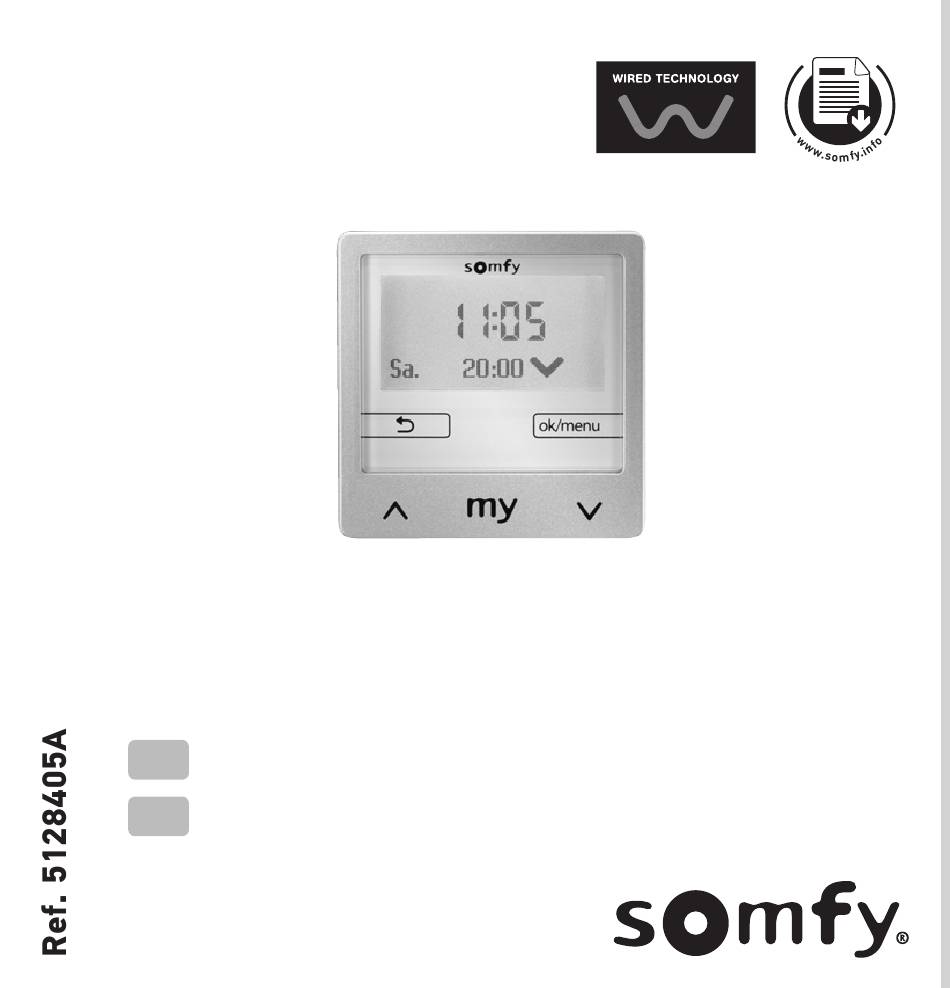

SOLIRIS
INSTALLATION GUIDE
EN
INSTALLATIEGIDS
NL
SMOOVE UNO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLIRIS SMOOVE UNO and is the answer not in the manual?

Questions and answers

Related Manuals for SOMFY SOLIRIS SMOOVE UNO

Summary of Contents for SOMFY SOLIRIS SMOOVE UNO

  • Page 1 SOLIRIS SMOOVE UNO INSTALLATION GUIDE INSTALLATIEGIDS...

  • Page 2: Safety Instructions

    The product 2. Product description parameters can be modified from the backlit screen. Soliris Smoove Uno is a timer that can automatically 11 mm 31 mm 3. Description of the control buttons...

  • Page 3: Installation

    min. 40 mm min. 50 mm 5. Installation 5. 1. Dimensions and parts (Figure C) Dimensions: see figure Electronic module Cover frame Power supply module 5. 2. Installation (Figure D) Connect up the connection cables and secure the power supply module in the flush mounted box. Position the electronic module with its cover frame in the power supply module.

  • Page 4: Quick Menu

    7. Quick menu (Figure F) On the main screen, briefly press the button Several operating modes will appear: Automatic mode: all the automatic functions are activated. Manual control is possible. Automatic mode stand-by: the automatic functions are deactivated for 6, 12 or 18  hours. The automatic functions then automatically re-activate.
  • Page 5 10. 3. Wired sensor (wind, rain, sunlight) rain and sunlight sensor Press the down button and select “Yes”. These sensors enable the wind, rain and sunlight functions to be used with the Soliris Smoove Uno (see the sensor Confirm by pressing button Optionele bedrade instructions).

  • Page 6: Safety And Liability

    Do not use abrasive products or solvents to clean it.  2. Product description Soliris Smoove Uno is a timer that can automatically and manually control a roller shutter, awning or external venetian blind type motor. Soliris Smoove Uno is pre-set to open at 7:30 am from Monday to Friday and at 8:30 am at the weekend, and to close at 8:00 pm.
  • Page 7 automatically in accordance with the brightness using an optional sunlight, wind or rain sensor. The product parameters can be modified from the backlit screen. 3. Description of the control buttons (Figure A) Arrow Manual raising and lowering control in normal operation. Navigation or changing the value in the settings menu.
  • Page 8 4. Connection (Figure B) The installation, testing and commissioning of the appliance must be carried out by qualified personnel. Switch off all the connecting cables. Ensure that they cannot be accidentally switched on.  Observe the wiring of Neutral and Live. Keep the “up”...
  • Page 9 5. Installation 5. 1. Dimensions and parts (Figure C) Dimensions: see figure Electronic module Cover frame Power supply module 5. 2. Installation (Figure D) Connect up the connection cables and secure the power supply module in the flush mounted box. Position the electronic module with its cover frame in the power supply module.
  • Page 10 When setting is complete, the appliance operates and the main screen is displayed (image (*1) The linear travel time is the time required for a roller shutter, an external venetian blind or an awning to move from the open position to the fully closed position.
  • Page 11 7. Quick menu (Figure F) On the main screen, briefly press the button Several operating modes will appear: Automatic mode: all the automatic functions are activated. Manual control is possible. Automatic mode stand-by: the automatic functions are deactivated for 6, 12 or 18  hours. The automatic functions then automatically re-activate.
  • Page 12 8. Saving and deleting the favourite position (Figure G) Prerequisite: the travel time should be accurately set (see the commissioning section). 8. 1. Saving the favourite position Position the product in the required position and stop it by briefly pressing the button Press button again for at least 5 sec.
  • Page 13 9. Restoring the original configuration (Figure H) Set the user profile in professional mode in “Configuration menu” / “Configuration” / “User mode set-up”. Confirm the “Professional” option by pressing button In the “Configuration” sub-menu chose the “Service” option. Confirm “Factory reset”. Press the down button and select “Yes”.
  • Page 14 This sensor enables the twilight and sunlight functions to be used. (See the Sunis Wirefree io™ instructions) 10. 3. Wired sensor (wind, rain, sunlight) These sensors enable the wind, rain and sunlight functions to be used with the Soliris Smoove Uno (see the sensor instructions).

  • Page 15: Technical Data

    11. Technical data Operating voltage: 230 V AC ~ 50/60 Hz Output voltage: 230 V AC ~ 50/60 Hz Maximum output current: 3 A/cos phi > 0.9 Motor travel time: Max. 6 min. Protection rating: IP 20 Protection class: Operating temperature: 0 °C to + 40 °C Do not dispose of this product with the household waste.
  • Page 16 EN Somfy hereby declares that the radio equipment covered by these instructions is in compliance with the requirements of Radio Directive 2014/53/EU and the other essential requirements of the applicable European Directives. The full text of the EU declaration of conformity is available at www.somfy.com/ce.
