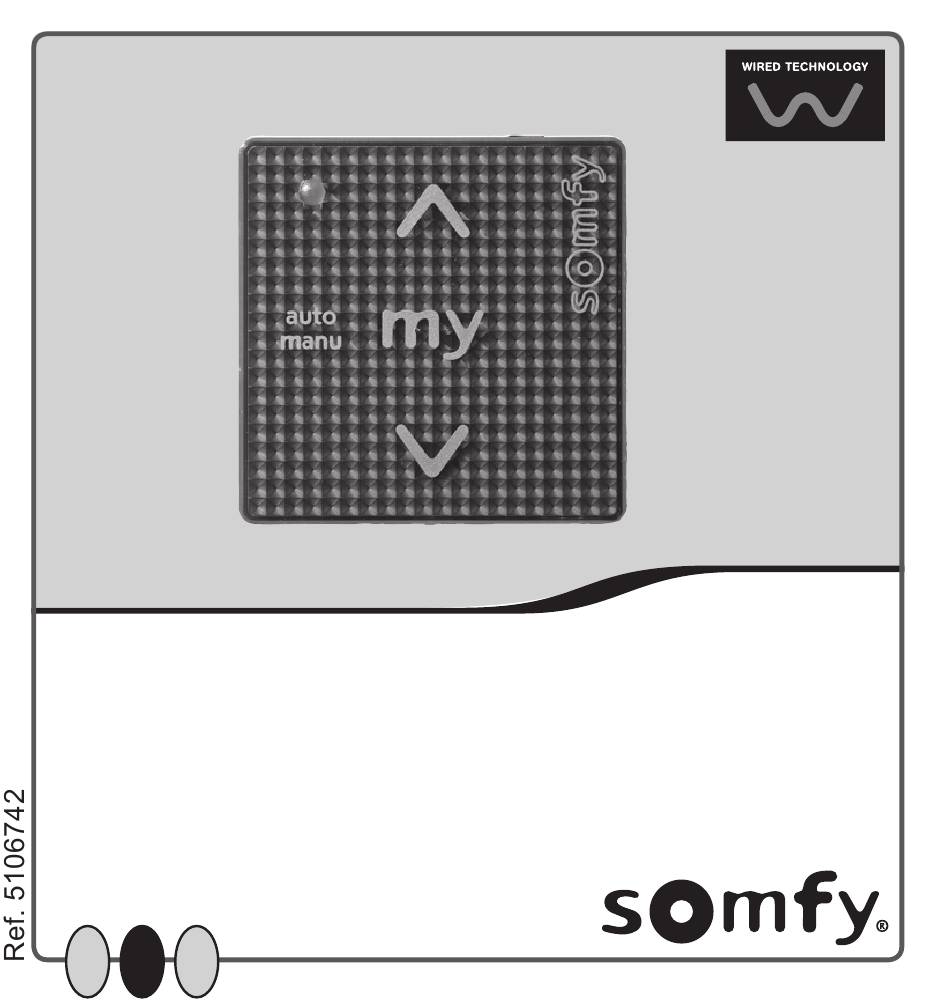

- Page 1 Smoove UNO IB+ DK Installationsvejledning GB Installation guide Montagehandleiding...
- Page 3 Mains ~ 230 V AC Somfy Smoove Uno IB+...
- Page 5 Œ Ž...
- Page 6 Ž Œ > 2 s < 1 s > 1 s < 1 s < 1 s < 2 s...
- Page 7 0.5 s Œ Ž > 6 s 0.5 s ‘...
- Page 8 Œ 10 s Ž...
- Page 9 Π...
- Page 10 Π...
- Page 11 Œ Ž ⬍ > 2 s ⬍...
- Page 12 Measurements and pieces a = 71 mm Logic module b = 50 mm Frame c = 51 mm Power supply d = 31 mm e = 11 mm...
- Page 13 Connection of the bus ( ) only in combination with the animeo IB+ control. Warning The product must be installed by a qualified electrician! Switch all connection wiring, which is to be connected, to OFF! Take precautions against unintentional power up! Connection Cables Twisted pair Max.
-
Page 14: Installation
Installation Ambient conditions: Dry living areas Œ Connect wiring and fi x support frame in junction box. Gently press logic module and cover frame together into the support frame. Apply power and check the running direction with “Up” and “Down” button. When electronic motors are to be controlled through this Motor Controller device it is ob- ligatory to confi... - Page 15 Operation Œ Stop/my Ž Down Automatic activating/deactivating Operating ergonomics screen EU: Tip: Short touch of up or down button (→ tilting) Click in: Long touch of up or down button (→ up or down moving order) Operating ergonomics screen US: Click in: Short touch of up or down button (→...
- Page 16 Choose operating mode Œ Disconnect voltage and switch on again. Then within 30 seconds push auto/manu for 2 seconds. Ž LED glows Green = store Orange = EVB EU (tip-click in) Red = EVB US (click in-tip) Toggle with auto/manu until LED shows the colour of the desired mode.
- Page 17 Learn in running times/length Œ Move screen to upper end limit. Short press of stop/my button. Press again stop/my until screen moves Ž independently. Press stop/my, when lower end limit is reached. Maintain stop for duration of tilting (only with screens).
- Page 18 Factory reset Œ Interrupt power supply and switch on again. Then within 30 seconds press Up and Down button simultaneously for at least 10 secs. LED fl ashes: Successful reset to factory set- Ž ting. Factory setting Operating mode: screen Running time: 3 minutes...
- Page 19 Automatic ON/OFF Œ Press auto/manu button for 2 seconds until LED turns on resp. no longer shines. • LED shines green: automatic ON, device reacts on local and bus move com- mands. • LED off: automatic OFF, device only reacts on key priority commands (e.g.
- Page 20 Œ Move commands UP/STOP/DOWN/my (not blocked by central control) • Screen moves in the desired direction/ position or is stopped. • LED confi rms with green light. Move commands UP/STOP/DOWNAB/my (blocked by central control) • Screen does not move. •...
- Page 21 Learn in my position Œ Move screen to the desired position. Press shortly stop/my, screen stops. Press again stop/my for at least 2 s until Ž screen confi rms with short up/down move; my position is learned in. Delete my position Move screen to my position.
- Page 22 Smoove Uno IB+ is an electronically and manu- ally-operated, independently-mounted control. • Class A control function • Type 1 action • Pollution degree: 2 • Rated impulse voltage: 4 kV • Temperature of the ball hardness test: 75° C • Type X attachment •...
- Page 23 0° C to 40° C Relative humidity 85 % Material of housing PC-ABS polycarbonate Housing dimensions 71 x 71 x 44 mm Degree of protection IP 20 II (looped through PE connection - Protection class depending on the installation) Conformity www.somfy.com/ce...
- Page 24 MALAYSIA: Somfy Malaysia Tel. +61 (0) 296 380 744 Tel. +60 (0) 322 874 743 AUSTRIA: Somfy GesmbH MEXICO: Somfy MEXICO SA de CD Tel. +43 (0) 662 625 308 Tel. +52 (0) 55 477 777 701 BELGIUM: Somfy NV SA MOROCCO: Somfy Maroc Tel.
