Part Number:
1811612

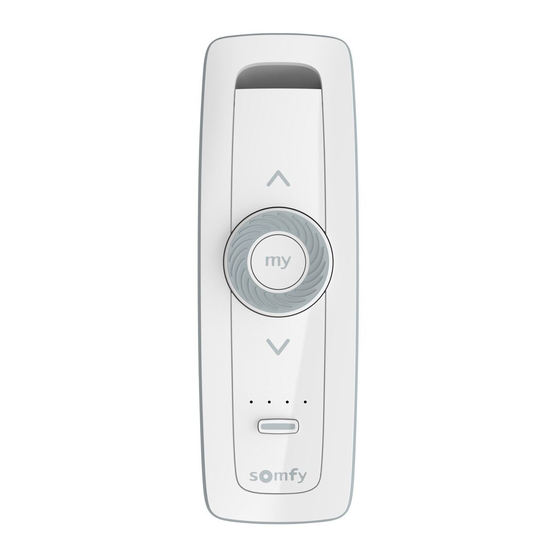

The Situo 5 Variation RTS provides 5 channels for precise individual
and group incremental control of motorized window coverings.
Introduction
A. Wall mounting recess
B. Up/Open button
C. STOP/"my" button
D. Tilt/Scroll Wheel
E. Down/Close button
F. Channel indicator lights
G. Channel selector
Wall Mounting the Situo 5 Variation
• Peel
• Adhere
Situo
5 Variation RTS
®
• Hang
Continued On Next Page
H. Programming (PROG)
button on back
Using the included Mounting Bracket:
• Peel the protective film from the adhesive on the back
of the wall mounting bracket.
• Adhere the wall mounting bracket to a flat, clean,
and dry surface (press firmly).
• Hang the Situo 5 Variation on the wall mounting bracket.
• Optional: Can also be screwed/anchored to wall.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SOMFY Situo 5 Variation RTS
Summary of Contents for SOMFY Situo 5 Variation RTS
- Page 1 Situo 5 Variation RTS Part Number: ® 1811612 The Situo 5 Variation RTS provides 5 channels for precise individual and group incremental control of motorized window coverings. Introduction A. Wall mounting recess B. Up/Open button C. STOP/”my” button D. Tilt/Scroll Wheel E.
- Page 2 On the Situo 5 Variation RTS to be added or deleted: • Select the appropriate channel (G). • Briefly press the PROG button (H), the window covering briefly moves up and down and the Situo 5 Variation RTS is added or deleted. Programming a Replacement remote: Using the programming button on the drive head: •...
- Page 3 Operation Channel Selector (G) Before operating the Situo 5 Variation RTS, ensure the correct channel has been selected. • Briefly press the channel selector button (G) to choose the correct channel. • The selection indicator lights (F) correspond to channels 1 through 4.
