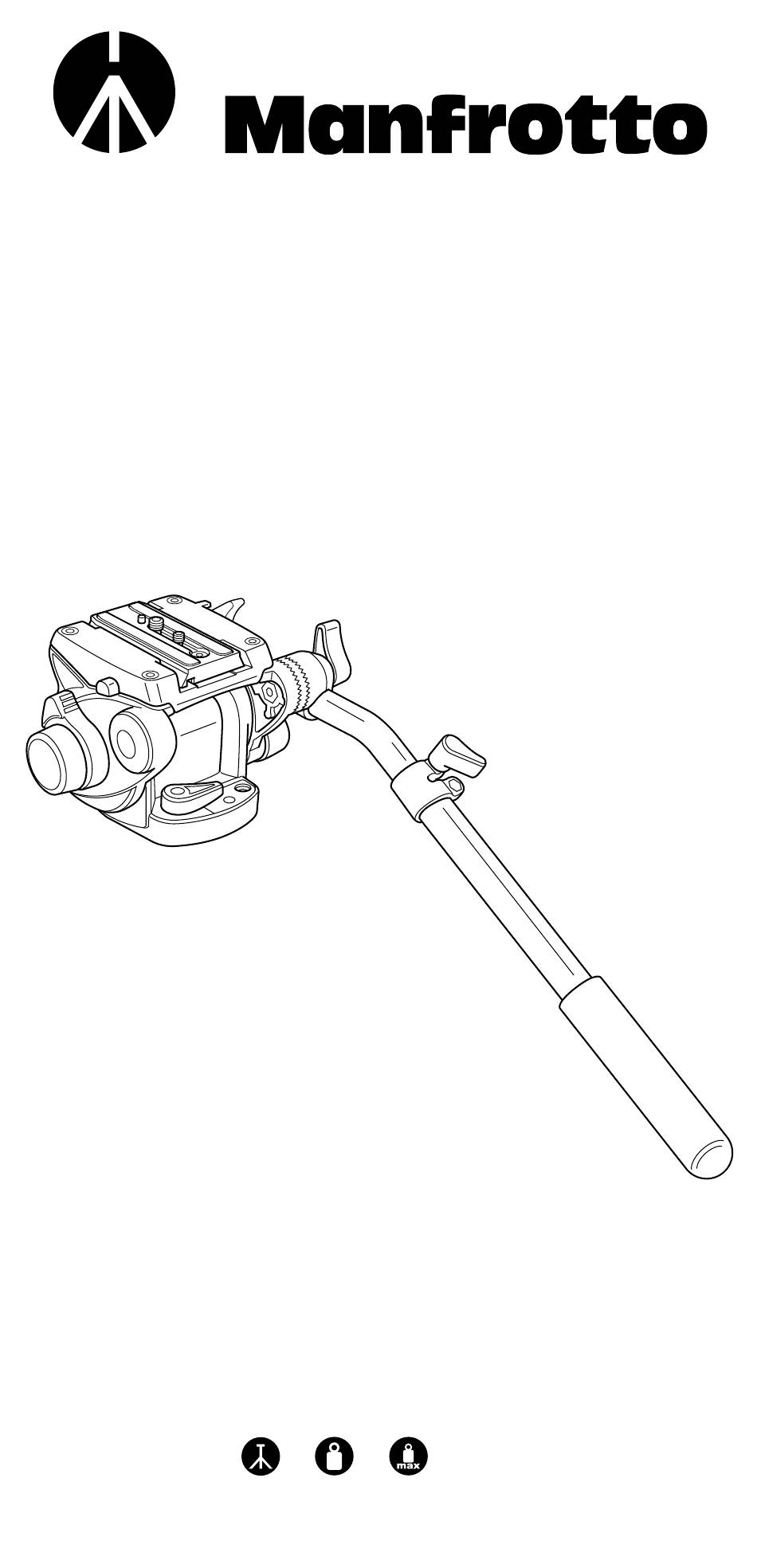

- Page 1 INSTRUCTIONS 503HDV 11,5 cm 1,95 kg 8 kg 4.5” 4.3 lbs 17.6 lbs...
-
Page 4: Key Features
Attach the head to the tripod - the head’s 3/8” female thread “G” fits the screw on the top plate of the tripod. The top plate on Manfrotto tripods are also equipped with three set screws “H” which clamp against the base of the head to ensure a secure and rotation-free lock. -
Page 5: Counterbalance System
- gently push out rubber cap “AF” with your finger - remove the unneeded screw - replace the rubber cap “AF” to prevent the screw from accidentally falling out and get- ting lost when the plate is not attached to the camcorder NOTE: To keep the currently unneeded screw safe and together with the head ready for future... - Page 6 terbalance) To use the counterbalance system, proceed as follows: - unscrew knob “U” (fig. 1) while holding your equipment in order prevent it from tipping over - with your free hand, rotate knob “Q” to index “1” - tilt the camcorder downwards and gently let a) if the camcorder doesn’t move, index “1”...
