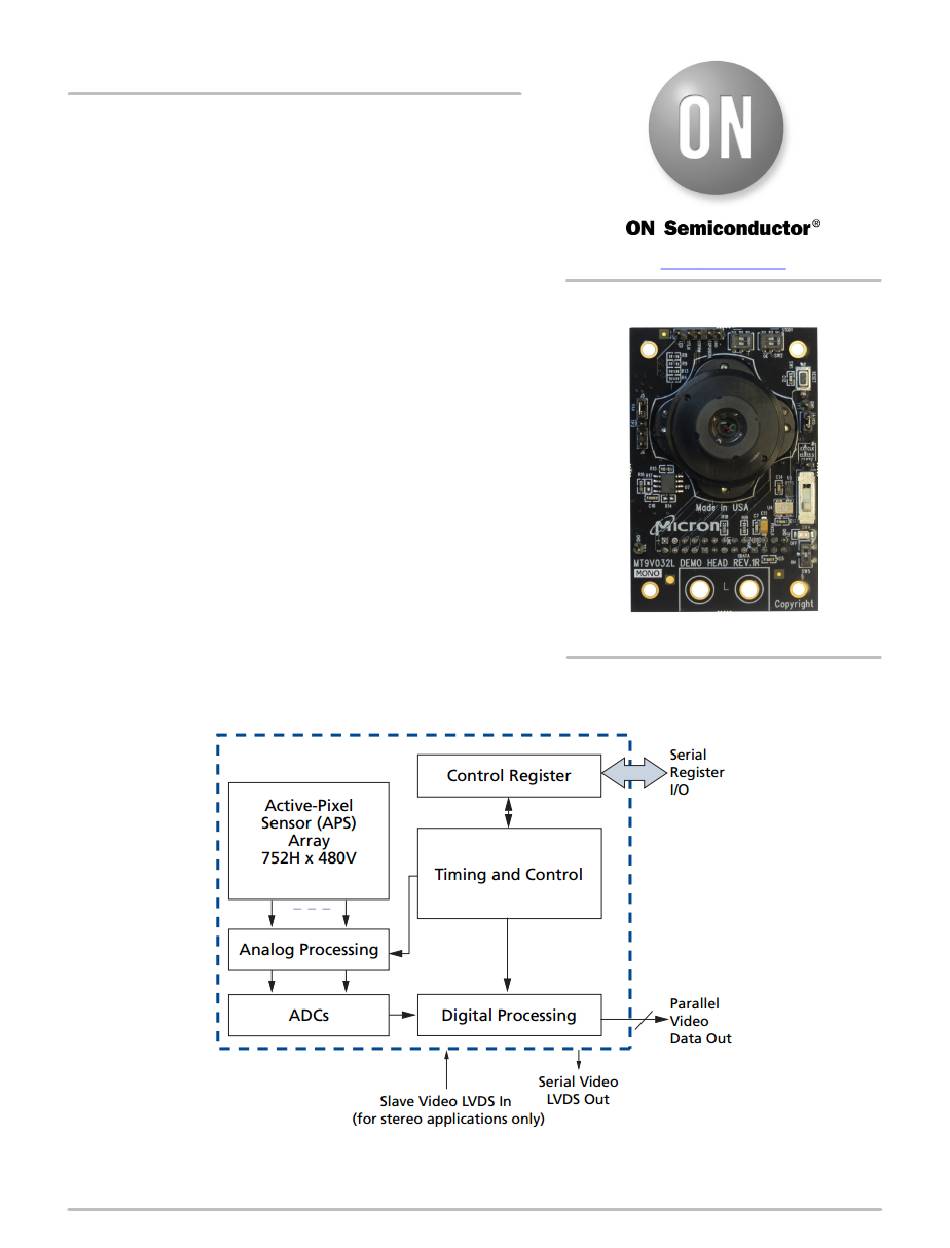

MT9V032C12STMH-GEVB
MT9V032 Evaluation Board
User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.

Features

Clock Input
Default – 27 MHz Crystal Oscillator
Optional Demo 2X Controlled MClk
Two Wire Serial Interface
Selectable Base Address
Parallel Interface
Serial LVDS Interface
ROHS Compliant

Block Diagram

© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0
Figure 2. Block Diagram of MT9V032C12STMH−GEVB
EVAL BOARD USER'S MANUAL

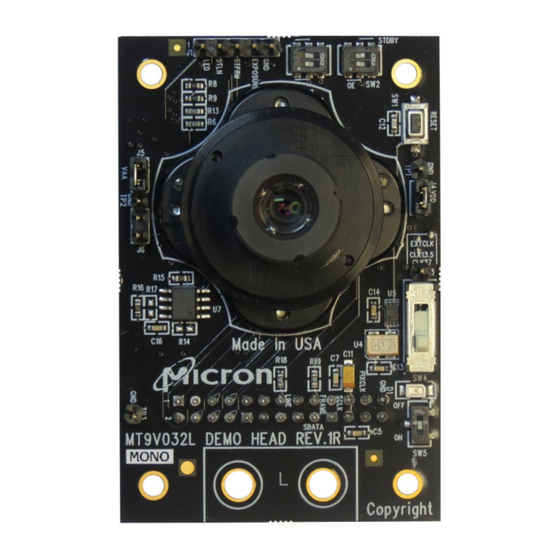

Figure 1. MT9V032 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2459/D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT9V032C12STMH-GEVB and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor MT9V032C12STMH-GEVB

  • Page 1 Evaluation Board Overview www.onsemi.com The evaluation boards are designed to demonstrate the features of ON Semiconductor’s image sensors products. This headboard is EVAL BOARD USER’S MANUAL intended to plug directly into the Demo 2X system. Test points and jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.
  • Page 2 MT9V032C12STMH−GEVB Top View STBY/OE_N SW2 CONFIG. J1 RESET SW1 SADDR SW3 +3V_VAA J5 +3V3_VDD J4 EXTCLK J3 CLK_SELECT SW1 ON_LED SW5 Figure 3. Top View of Evaluation Board Bottom View LVDS Connector U3 Baseboard Connector J2 Figure 4. Bottom View of the Evaluation Board − Connector/Jumper www.onsemi.com...
  • Page 3 MT9V032C12STMH−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right ADR1 ADR0...
  • Page 4 Turn off LED indicator Interfacing to ON Semiconductor Demo 2X Baseboard headboard. The four mounting holes secure the baseboard The ON Semiconductor Demo 2X baseboard has a and the headboard with spacers and screws. similar 26-pin connector which mates with J2 of the...
  • Page 5 LIMITATIONS OF LIABILITY: ON Semiconductor shall not be liable for any special, consequential, incidental, indirect or punitive damages, including, but not limited to the costs of requalification, delay, loss of profits or goodwill, arising out of or in connection with the board, even if ON Semiconductor is advised of the possibility of such damages. In no event shall ON Semiconductor’s aggregate liability from any obligation arising out of or in connection with the board, under any theory of liability, exceed the purchase price paid for the board, if any.
