ON Semiconductor MT9V022 User Manual

MT9V022IA7ATMH-GEVB
MT9V022 Evaluation Board
User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.

Features

•
Clock Input
Default – 27 MHz Crystal Oscillator
♦
Optional Demo 2X Controlled MClk
♦
•
Two Wire Serial Interface
Selectable Base Address
♦
•
Parallel Interface
•
Serial LVDS Interface
•
ROHS Compliant

Block Diagram

© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0
Figure 2. Block Diagram of MT9V022IA7ATMH−GEVB
EVAL BOARD USER'S MANUAL

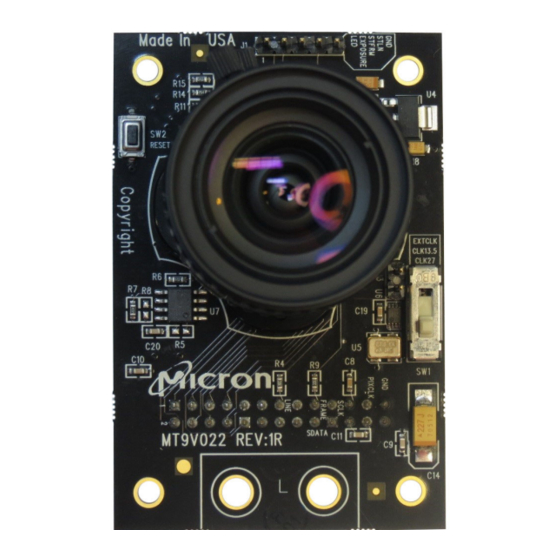

Figure 1. MT9V022 Evaluation Board
