Ascon tecnologic TLZ10 Manual

TLZ10
DIGITAL ELECTRONIC
THERMOCONTROLLER
ADVANCED THERMOELECTRIC
PO Box 1003, WRJ, VT 05001
toll-free 1(866) 665-5434
(603) 888-2467
les@electracool.com
sa
The Z31 Series became the replacement for the TLZ10
and TDH-01 Series in July 2017.
The new Z31 is identical in size and functionally to the older
models in many respects, including having a 16 amp SPDT
Relay output. However, the list of parameters has been
slightly modified. Buyers seeking a replacement for a TLZ10
or TDH-01 should check the Z31-A User Manual to ensure
that it has the functions (parameters) they require.
This manual
necessary for the product to be installed
correctly
maintenance and use; we therefore recommend that
the utmost attention is paid to the following
instructions and to save it.
This document is the
TECNOLOGIC which forbids any reproduction and divulgation , even
in part, of the document, unless expressly authorized. ASCONT
ECNOLOGIC reserves the right to make any formal or functional
changes at any moment and without any notice. Whenever a failure or
a malfunction of the device may cause dangerous situations for
persons, thing or animals, please remember that the plant has to
be equipped with additional devices which will guarantee safety.
ASCON TECNOLOGIC and its legal representatives do not
assume any responsibility for any damage to people, things or
animals deriving from violation, wrong or improper use or in any
case not in compliance with the instrument's features
ASCON TECNOLOGIC - TLZ10 - OPERATING INSTRUCTIONS - Vr. 02 - 01/12 - ISTR-MTLZ10ENG02 - PAG. 1
ADVANCED THERMOELECTRIC (USA)
contains the information
and also instructions
exclusive property of ASCON
INDEX
1 INSTRUMENT DESCRIPTION
1.1 GENERAL DESCRIPTION
1.2 FRONT PANEL DESCRIPTION
2 PROGRAMMING
2.1 PROGRAMMING OF SET POINT
2.2 PARAMETERS PROGRAMMING
2.3 PARAMETER PROTECTION USING THE PASSWORD
2.4 PARAMETERS PROGRAMMING LEVEL
2.5 ON / STAND-BY FUNCTION
3 INFORMATION ON INSTALLATION AND USE
3.1 PERMITTED USE
3.2 MECHANICAL MOUNTING
3.3 ELECTRICAL CONNECTIONS
3.4 ELECTRICAL WIRING DIAGRAM
4 FUNCTIONS
4.1 MEASURING AND VISUALIZATION
4.2 TEMPERATURE CONTROL
4.3 COMPRESSOR PROTECTION FUNCTION AND DELAY
AT POWER-ON
4.4 FUNCTION OF KEY "U"
4.5 PARAMETERS CONFIGURATION BY A01
5 PROGRAMMABLE PARAMETERS TABLE
6 PROBLEMS , MAINTENANCE AND GUARANTEE
6.1 SIGNALLING
6.2 CLEANING
6.3 GUARANTEE AND REPAIRS
7 TECHNICAL DATA
7.1 ELECTRICAL DATA
7.2 MECHANICAL DATA
7.3 MECHANICAL DIMENSIONS, PANEL CUT-OUT AND
MOUNTING
7.4 FUNCTIONAL DATA
7.5 INSTRUMENT ORDERING CODE
1 - INSTRUMENT DESCRIPTION
1.1 - GENERAL DESCRIPTION
TLZ 10 is a digital microprocessor based thermocontroller for
Heating or Cooling applications and ON/OFF control mode. The
instrument has one relay output and one input for PTC or NTC
temperature probes that can be configured. The instrument is
equipped with 4 programme keys, a 4-digit display and 1 LED
signal. Other important characteristics of the instrument are:
programme parameters protection using personalised password,
switching on and off (stand-by) of the instrument using the "U" front
key, configuration of parameters via the A01 device and the
possibility of power supply in the range 100 ... 240 VAC.

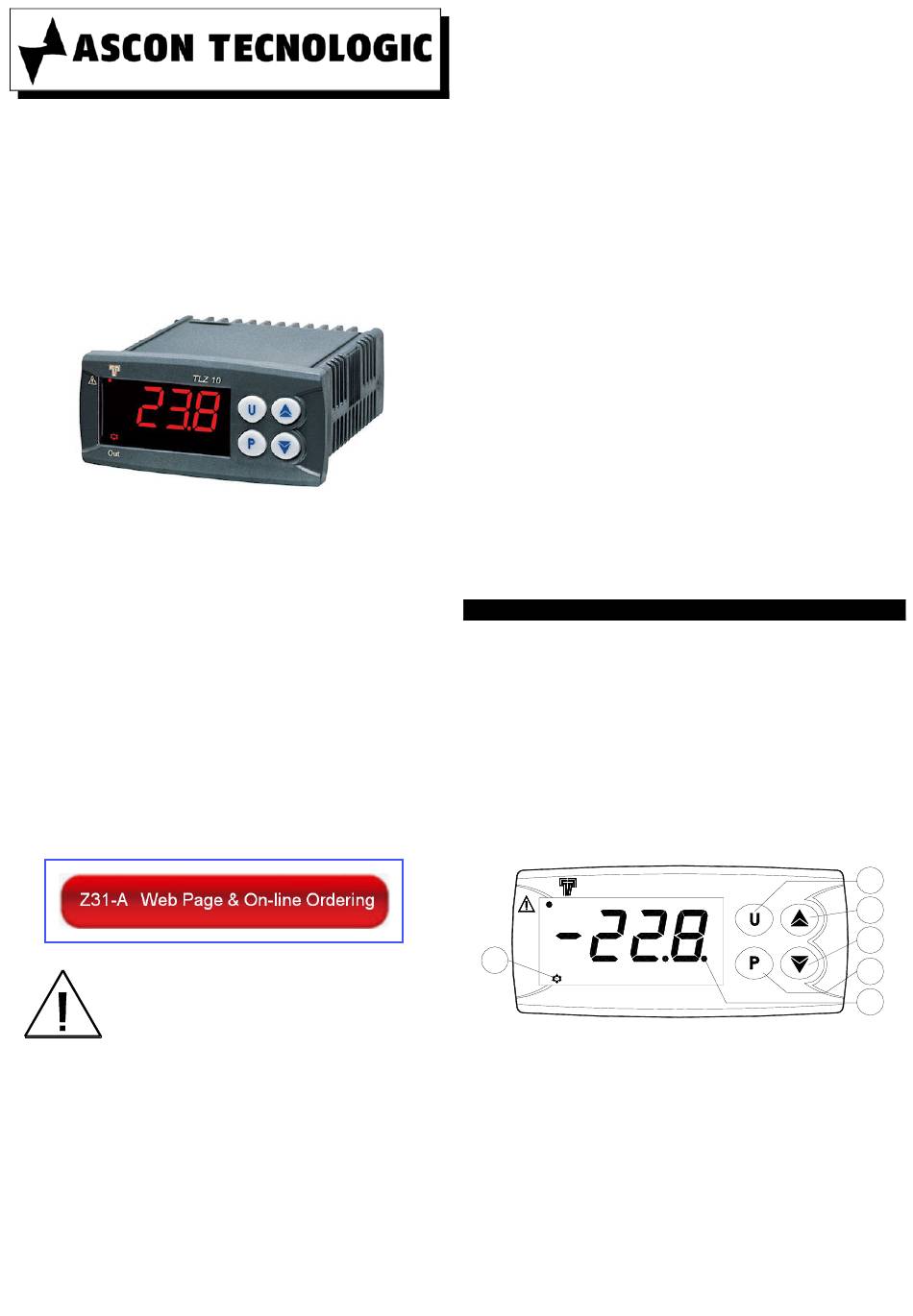

1.2 - FRONT PANEL DESCRIPTION
6
for its
1 - Key P : Used for setting the Set point and for programming the
function parameters
2 - Key DOWN : Used for decreasing the values to be set and for
selecting the parameters.
3 - Key UP : Used for increasing the value to be set and for
selecting the parameters.
4 - Key U : It can be programmed via the parameter "USrb" to
turning on and off (stand-by) the device. In the "hidden" parameter
programming mode it's used to modify the visibility of the
parameters (see par. 2.4).
5 - Led SET : Indicates the input in programming mode and the
programming level of the parameters. It also serves to indicate the
Stand-by status.
(603) 888-2467
TLZ 10
Out
sales@electracool.com
4
3
2
1
5
