Ascon tecnologic TLY25 Operating Instructions Manual

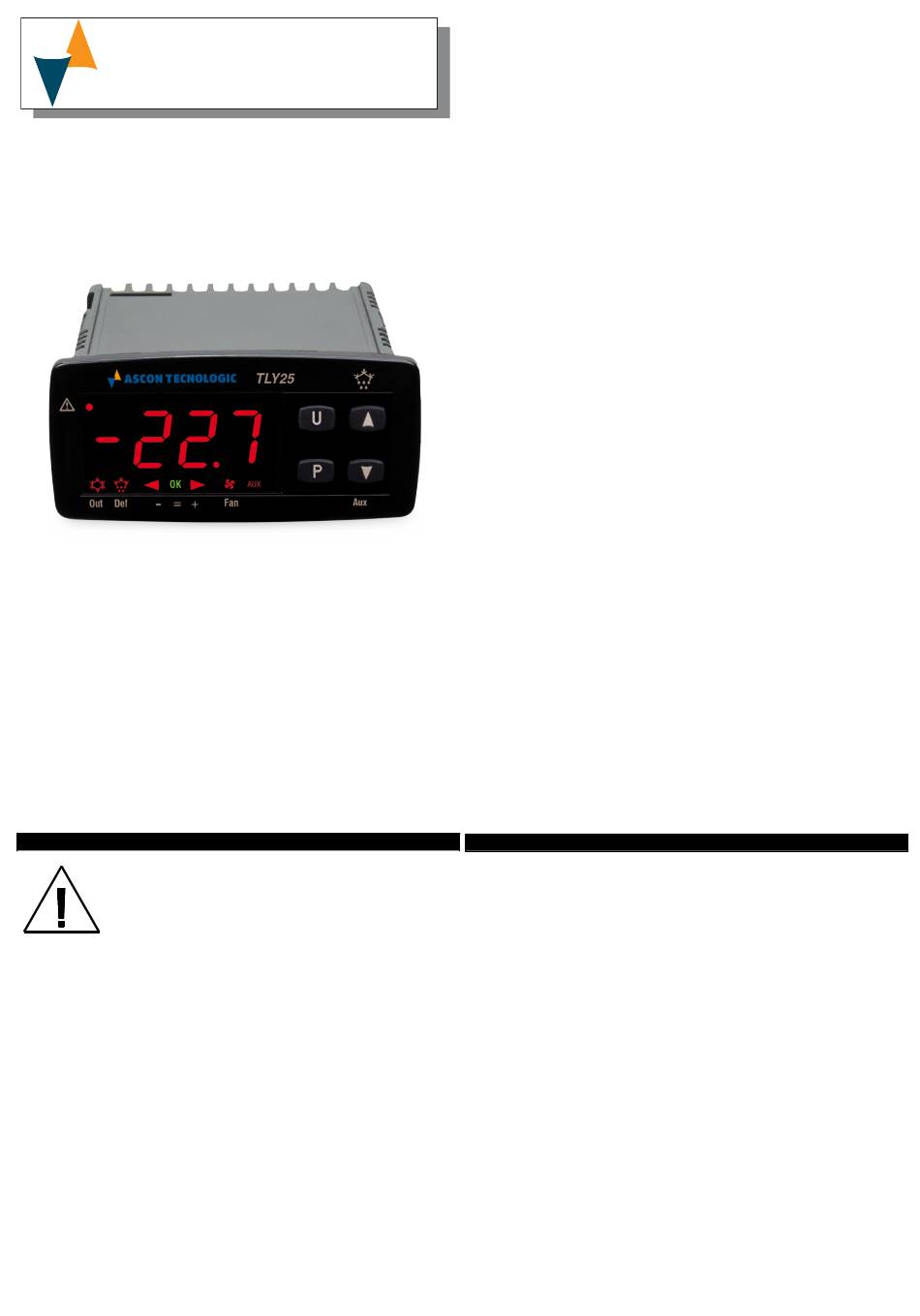

TLY25
MICROPROCESSOR-BASED
DIGITAL ELECTRONIC FREEZER
CONTROLLER
OPERATING INSTRUCTIONS
17/06 - Code: ISTR_M_TLY25_e_02_--
ASCON TECNOLOGIC S.r.l.
Viale Indipendenza 56
27029 Vigevano (PV) ITALY
TEL.: +39 0381 69871 - FAX: +39 0381 698730
http:\\www.ascontecnologic.com
e-mail: info@ascontecnologic.com
FOREWORD
This manual
necessary for the correct installation, and the
instructions for the use and maintenance of the
product; the user is advised to read it carefully
and conserve it for reference.
This publication is exclusive property of Ascon Tecnologic S.r.l.;
unless expressly authorized, reproduction and disclosure of
even part of its contents is strictly prohibited.
Ascon Tecnologic S.r.l. reserves the right to make visual
and functional modifications to this manual at any moment
and without advance warning.
In the event that a fault or malfunction of the device should
create hazardous or damaging situations for persons, property
or animals, note that the system must be fitted with additional
devices aimed at guaranteeing safety.
Ascon Tecnologic S.r.l. and its legal representatives shall
accept no responsibility for any damage caused to persons,
property or animals deriving from tampering, improper or
erroneous usage, or use that is not in conformity with the
specifications of the appliance.
contains the information
Ascon Tecnologic - TLY25 - OPERATING INSTRUCTIONS - PAG. 1
INDEX
1 INSTRUMENT DESCRIPTION
1.1 GENERAL DESCRIPTION
1.2 FRONT PANEL DESCRIPTION
2 PROGRAMMING
2.1 PROGRAMMING OF SET POINT
2.2 PARAMETERS PROGRAMMING
2.3 PARAMETER PROTECTION USING THE PASSWORD
2.4 PARAMETERS PROGRAMMING LEVEL
2.5 ACTIVE SET POINT SELECTION
2.6 ON / STAND-BY FUNCTION
2.7 CLOCK PROGRAMMING
3 INFORMATION ON INSTALLATION AND USE
3.1 PERMITTED USE
3.2 MECHANICAL MOUNTING
3.3 ELECTRICAL CONNECTIONS
3.4 ELECTRICAL WIRING DIAGRAM
4 FUNCTIONS
4.1 MEASURING AND VISUALIZATION
4.2 OUTPUTS CONFIGURATION
4.3 TEMPERATURE CONTROL
4.4 CONTINUOUS CYCLE FUNCTION
4.5 COMPRESSOR PROTECTION FUNCTION AND DELAY
AT POWER-ON
4.6 DEFROST CONTROL
4.7 MANUAL DEFROST
4.8 EVAPORATOR FANS CONTROL
4.9 ALARM FUNCTIONS
4.9.1 TEMPERATURE ALARMS
4.9.2 EXTERNAL ALARM
4.9.3 OPEN DOOR ALARM
4.9.4 ALARM MEMORY
4.10 DIGITAL INPUT
4.11 AUXILIARY OUTPUT
4.12 FUNCTION OF KEYS "U" AND "DOWN/AUX"
4.13 PARAMETERS CONFIGURATION BY A01
5 PROGRAMMABLE PARAMETERS TABLE
PROBLEMS , MAINTENANCE AND WARRANTY
6
6.1 SIGNALLING
6.2 CLEANING
WARRANTY AND REPAIRS
6.3
7 TECHNICAL DATA
7.1 ELECTRICAL DATA
7.2 MECHANICAL DATA
7.3 MECHANICAL DIMENSIONS, PANEL CUT-OUT AND
MOUNTING
7.4 FUNCTIONAL DATA
7.5 INSTRUMENT ORDERING CODE
1 - INSTRUMENT DESCRIPTION
1.1 - GENERAL DESCRIPTION

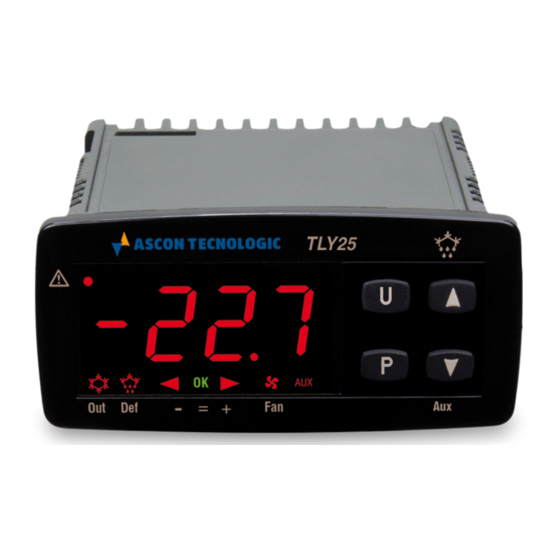

The model TLY 25 is a digital controller with microprocessor that is
typically used in cooling applications that have temperature control
with ON/OFF regulation and defrosting control with set time and
hours intervals (Real Time Clock Defrosting) by means of electrical
heating or hot gas/cycle inversion.
The instrument has 4 relay outputs, two inputs for PTC or NTC
temperature probes and a digital input, that can all be configured.
The 4 outputs can be used for controlling the compressor or the
temperature control device (OUT), the defrosting device (DEF), the
evaporation fan (FAN), an alarm (AL) or, alternatively any of the
previous functions, using an auxiliary device (AUX).
The two inputs for the PTC and NTC temperature probes (which
can be selected by parameter) can be used to measure the cell
temperature (Pr1) and the evaporator temperature (Pr2) while the
digital input (DIG) can be programmed to carry out various
functions such as defrosting commands, selecting a different set of
temperature regulations, external alarm signals, activating a
continuous cycle, and activating an auxiliary output etc.
The instrument is equipped with 4 programme keys, a 4-digit
display and 9 LED signals.
