Display Options

These display options are for use within the Button Configuration window. Placing a check in any box
activates its display.
Display Options
Show Button Numbers
Show Button Names
Show Channel Codes
Show Menu Actions
Click OK to keep changes and exit the Button Configuration module; otherwise, click Cancel and lose
the changes.

Engraving

The Engraving module allows you to create the .DXF file that AMX needs to create your device's
custom keypad.
Graphic
interface
for keypad
device

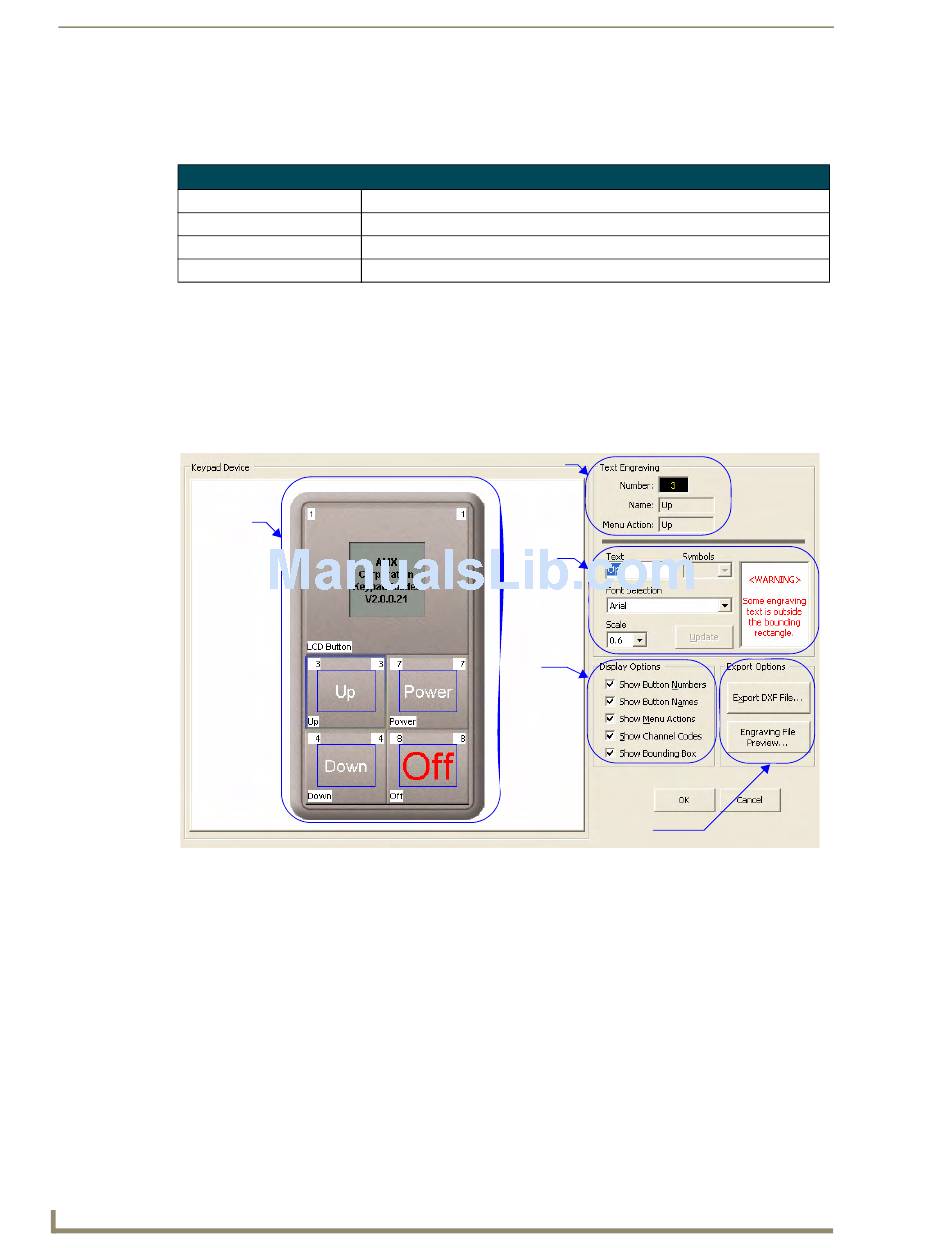

FIG. 6 Engraving Dialog

Keypad Device

The Keypad Device area is a graphic representation of your keypad device. Click on a button to select
and assign properties.
16
Displays all button numbers.
Displays the button name if set.
Displays set channel codes for the keypad device.
Displays the menu action value for the button.
Button
configuration
information
Text
engraving
information
Display
Options
DXF export options
