Vertiv™ Liebert® GXT5 UPS
3,000 VA, HV, 208V (L1, L2, G) IN,
208V OUT
Quick Installation Guide
IMPORTANT: Before installing,
connecting to supply or operating
your Vertiv Liebert GXT5 UPS,
please review the Safety and
Regulatory Statements sheet. For
detailed installation, operating,
maintenance and troubleshooting
information refer to the Liebert
GXT5 User Guide for your model
available at www. V ertiv.com.
Installations
1. Inspecting the UPS
Inspect the UPS for any signs of
obvious damage. If damage is
visible, do not proceed and call
our warranty support line for
assistance at 1-800-222-5877
menu option 3, or email at
microups.warranty@vertiv.com.
2. Choosing a location
Install the UPS in a temperature-
controlled environment that is free
of corrosive and conductive
contaminants. Avoid locations
near heat or water sources and
exposed to direct sunlight.
For proper ventilation, leave four
inches clearance on all sides of
the UPS.
The input outlet should be nearby
and easily accessible.
Thank you for your recent purchase of a Vertiv UPS! We appreciate your
business and are confident that your new product will provide many years of
uninterruptible power to your connected equipment. With this purchase, you
may also want to consider Vertiv's complete line of racks, PDUs, thermal
solutions, KVM switches, and serial consoles. Vertiv also offers a broad array of
services and extended warranties. If you require any assistance or support
please don't hesitate to reach out to one of our resellers, local rep firms, or
directly to us at 1-800-222-5877 menu option 3, or email at microups.
warranty@vertiv.com. We stand ready to support you. We sincerely hope that
you'll continue to select Vertiv for all of your future infrastructure needs!
The Vertiv Team

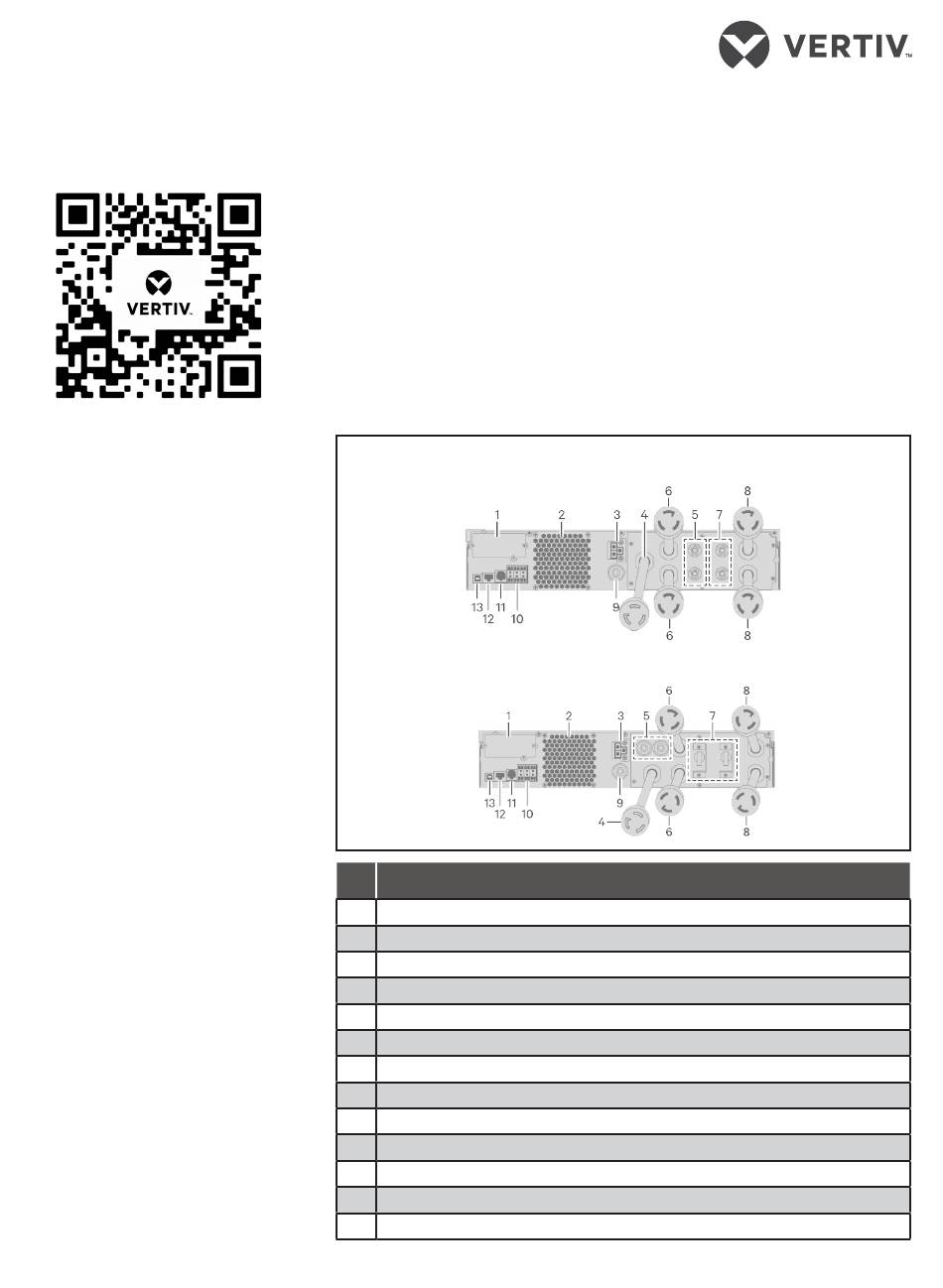

Model Design Configuration
GXT5-3KL620RT2UXL
GXT5-3KL620RT2UXL
# Description
1 Liebert® IntelliSlot Port
2 Ventilation hole
3 External-battery connector
4 Input-power cable: L6-20P for 3KL620, L6-30P for 3KL630
5 Output circuit breaker
6 Output cable: L6-20R for 3KL620, L6-30R for 3KL630
7 Output circuit breaker
8 Output cable, L6-15R
9 Input circuit breaker
10 Dry-contacts, Battery Detection (3), REPO input (REPO)
11 RS-232 port - Used for CL
12 RS-485 port - Used for external temperature sensors
13 USB port
1
