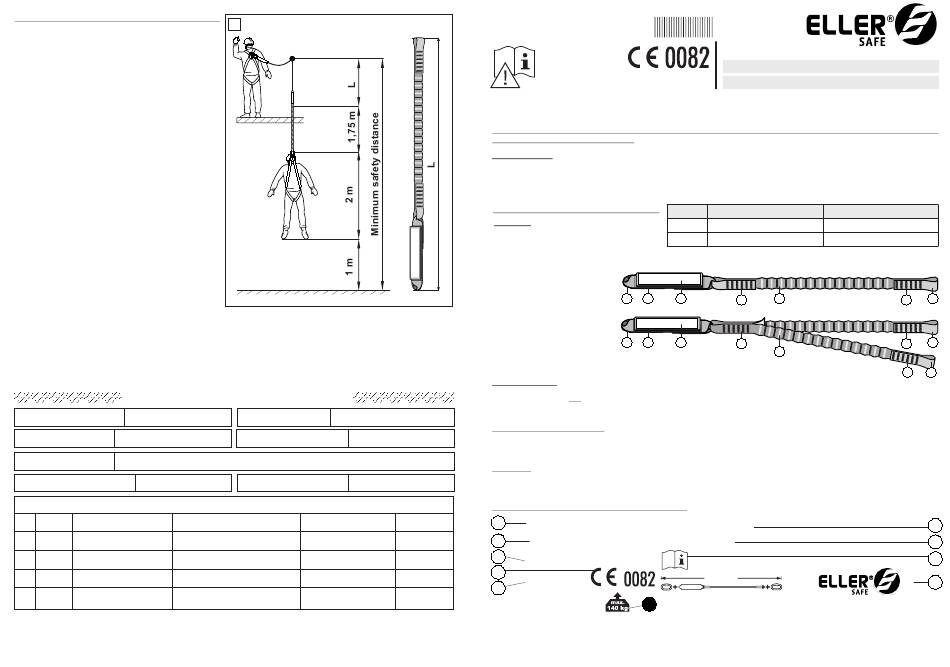

Eller AW170/LE 111 Instruction Manual

MAIN RULES WHILE WORKING WITH THE ENERGY ABSORBER
It is necessary to guarantee the minimum fall clearance below
the feet of the user, in order to arrest the fall before collision with
the structure or ground. The minimum fall clearance should be
ensured taking into consideration the minimum safety distance
from the lanyard/absorber anchorage point to the structure or
ground. The distance shall be calculated using below scheme
and Picture A.
Minimum safety distance= L + 1,75 m + 2 m + 1 m
L - the total working length of the energy with lanyard
including connectors
1,75 m - deployment of the energy absorber,
2 m - the distance between harness attachment point and
user's feet + harness stretch.
1 m - safety distance
IT IS THE RESPONSIBILITY OF THE USER ORGANISATION TO PROVIDE THE IDENTITY CARD AND TO FILL IN THE DETAILS REQUIRED. THE IDENTITY CARD SHOULD
BE FILLED IN BEFORE THE FIRST USE BY A COMPETENT PERSON, RESPONSIBLE INTHE USER ORGANIZATION FOR PROTECTIVE EQUIPMENT. ANY INFORMATION
ABOUT THE EQUIPMENT LIKE PERIODIC INSPECTIONS, REPAIRS, REASONS OF EQUIPMENT'S WITHDRAWN FROM USE SHALL BE NOTED INTO THE IDENTITY CARD
BY A COMPETENT PERSON. THE IDENTITY CARD SHOULD BE STORAGED DURING A WHOLE PERIOD OF EQUIPMENT UTILIZATION. DO NOT USE THE EQUIPMENT
WITHOUT THE IDENTITY CARD. ALL RECORDS IN THE IDENTITY CARD CAN BE FILLED IN ONLY BY A COMPETENT PERSON.
IDENTITY CARD
MODEL AND TYPE OF EQUIPMENT
SERIAL NUMBER
USER NAME
DATE OF PURCHASE
PERIODIC EXAMINATION AND REPAIR HISTORY
DATE
REASON FOR
ENTRY PERIODIC EXAMINATION
OR REPAIR AND OTHER REVELANT INFORMATIONS
1
2
3
4
Louis Reyners BV, Symon Spiersweg 13a,
1506 RZ, Zaandam, The Netherlands,
tel. +31 (0)756504750, fax +31 (0)756504760, www.lr.nl
A
Anchorage point
12 kN
REF. NUMBER
DATE OF MANUF.
DATE OF PUTTING
INTO OPERATION
DEFECTS NOTED, NAME AND SIGNATURE
REPAIRS CARRIED OUT OF COMPETENT PERSON
Notified body, at which the European certification
was performed and which supervises the production of the equipment:
APAVE SUDEUROPE SAS - BP 193 - 13322 MARSEILLE CEDEX 16 - FRANCE
PRODUCENT: PROTEKT, 93-403 LODZ, ul. Starorudzka 9, POLAND
Instruction Manual
Read carefully
the manual
before use
the equipment
The energy absorber with lanyard is a component of personal fall arrest equipment and complies with EN355.
Fall arrest system consisted of energy absorber with lanyard, attached to the full body harness (complied with EN 361) and connected to the
structural anchor point (complied with EN 795) can be used as a basic personal protective equipment against falls from a height.
Caution: The total length of the energy absorber with lanyard including terminations and connectors shall not exceed 2 m (e.g. connector plus
lanyard plus energy absorber plus connector).
CONSTRUCTION
AW170 energy absorber is made of 50 mm wide
webbing width 28 mm. The body of the absorber is protected by a special cover made of a heat shrinkable, polyethylene transparent tube. The
length of the lanyard is specyfied by order.
TOTAL LENGTHS WITHOUT CONNECTORS
ATTENTION! The energy absorbers can be equipped
only with certified (according to EN362) connectors.
1. absorber's
attachment loop;
2. energy absorber;
3. lanyard;
4. lanyard's attachment
loop;
5. lanyard's seam;
6. identity label.
Periodic inspections
The energy absorber with lanyard must be inspected at least once every 12 months from the date of first use.
Periodic inspections must only be carried out by a competent person who has the knowledge and training required for personal protective equipment
periodic inspections. Depending upon the type and environment of work, inspections may be needed to be carried out more frequently than once every
12 months. Every periodic inspection must be recorded in the Identity Card of the equipment.
Maximum lifespan of the equipment
The maximum lifespan of the energy absorber with lanyard is 10 years from the date of manufacture.
The energy absorber with lanyard
inspection or there are any doubt as to its reliability.
ATTENTION: The energy absorber with lanyard maximum lifetime depends on the intensity of usage and the environment of usage. Using the lanyard in
rough environment, marine environment, contact with sharp edges, exposure to extreme temperatures or agressive substances, etc. can lead to the
wthdrawal from use even after one use.
CONTENT OF THE DEVICE IDENTITY LABEL
PERIODIC A
ENERGY ABSORBER WITH LANYARD
EXAMINATION
NEXT DUE DATE
AW170/2LE111
B
C Ref. AW170/2LE111
D
EN 355:2002
E
A. type of the device
B. model marking
C. reference number of the device
D. CE marking with identity number of the notified body controlling
manufacturing of the equipment (the article 11)
E. European standard (number/year)
ENERGY ABSORBER with lanyard
AW170/LE 111
EN 355:2002
AW170/2LE 111
polyamide webbing. The lanyards LE111 and 2LE111
Length
AW170/LE111
Min.[m]
0,8
Max.[m] 1,8
AW170/LE111 Ref. AW170/LB111
1 2 6
5
AW170/2LE111 Ref. AW170/2LB111
1 2 6
5
must be withdrawn from use immediately and destroyed when it has been used to arrest a fall or
Date
MM.YYYY
of manufacturing:
XXX XXX
Serial No.
the total length of the energy absorber
with lanyard shall not exceed 2 m
MAX 2 m
K
F. month/year of the device manufacture
G. device serial number
H. caution: read the manual before use
I. marking of the manufacturer or distributor
K. maximum user weight
Ref.: AW170/LE111
AW170/LE111
are made of of poliester stretchable
AW170/2LE111
0,8
1,8
3 4
5
4
5
3
5 4
it fails to pass
F
G
H
I
