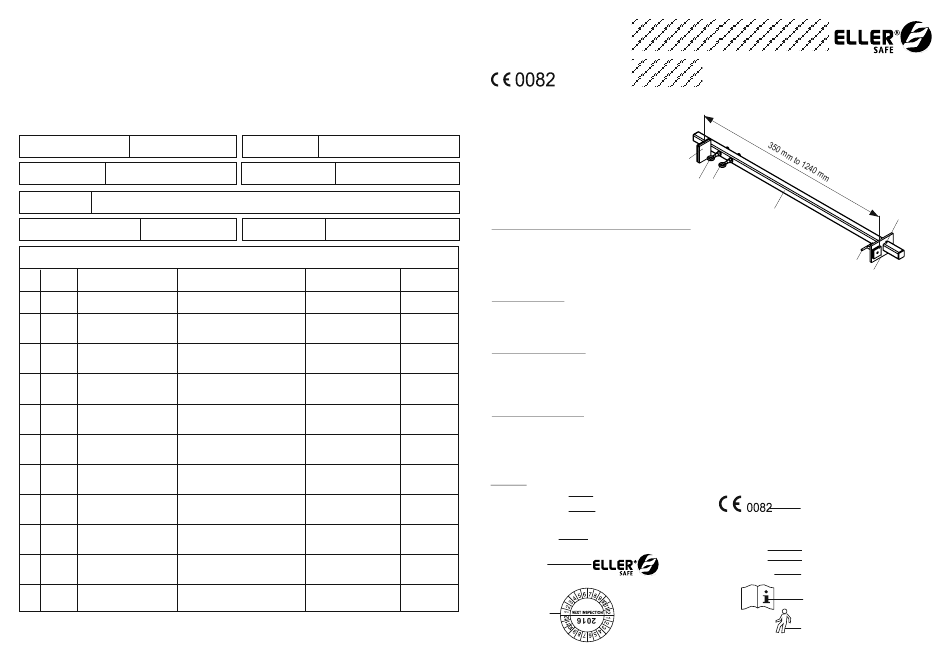

Eller AT 060 Instruction Manual

IDENTITY CARD
IT IS THE RESPONSIBILITY OF THE USER ORGANISATION TO PROVIDE THE IDENTITY CARD AND TO FILL IN THE DETAILS
REQUIRED. THE IDENTITY CARD SHOULD BE FILLED IN BEFORE THE FIRST USE BY A COMPETENT PERSON,
RESPONSIBLE INTHE USER ORGANIZATION FOR PROTECTIVE EQUIPMENT. ANY INFORMATION ABOUT THE EQUIPMENT
LIKE PERIODIC INSPECTIONS, REPAIRS, REASONS OF EQUIPMENT'S WITHDRAWN FROM USE SHALL BE NOTED INTO THE
IDENTITY CARD BY A COMPETENT PERSON. THE IDENTITY CARD SHOULD BE STORAGED DURING A WHOLE PERIOD OF
EQUIPMENT UTILIZATION. DO NOT USE THE EQUIPMENT WITHOUT THE IDENTITY CARD. ALL RECORDS IN THE IDENTITY
CARD CAN BE FILLED IN ONLY BYACOMPETENT PERSON.
MODEL AND TYPE OF EQUIPMENT
SERIAL NUMBER
USER NAME
DATE OF PURCHASE
PERIODIC EXAMINATION AND REPAIR HISTORY
DATE REASON FOR ENTRY PERIODIC DEFECTS NOTED, REPAIRS CARRIED OUT
INSPECTION OR REPAIR AND OTHER REVELANT INFORMATIONS
Louis Reyners BV, Symon Spiersweg
13A,1506 RZ, Zaandam, The
Netherlands ,Tel: +31 (0)756504750,
fax +31 (0)756504760, www.lr.nl
REF. NUMBER
DATE OF MANUF.
DATE OF PUTTING
INTO OPERATION
NAME AND SIGNATURE
OF COMPETENT PERSON
Notified body, at which the European certification was Iissued and which supervises
the production of the equipment:
APAVE SUDEUROPE SAS - 8 rue Jean-Jacques Vernazza - Z.A.C. Saumaty-
Séon CS-60193 – 13322 MARSEILLE Cedex 16, France - No. 0082
PRODUCENT: PROTEKT, 93-403 LODZ, ul. Starorudzka 9, POLAND
Instruction Manual
Ref.: AT 060
The anchor beam AT060 is a temporary
portable anchor device.
The anchor beam AT060 is designed and
intended to be used with personal fall
protection equipment. The anchor beam must
be installed inside the door or window opening
of width from 350 mm to1240mm. The anchor
beam is the protection for 2 persons.
CERTIFICATION AND COMPLIANCE WITH STANDARDS
a) EN 795:2012 type B - Equipment use as a transportable temporary anchor
point for one person. EC certificate.
b) TS 16415:2013 type B - Equipment use as a transportable temporary anchor
point for two people. Compliance with standard and document TS 16415/B:2013.
PERIODIC EXAMINATION
Not covered by the EC certificate.
NEXT DUE DATE
MAXIMUM LIFETIME
The AT060 anchor beam lifetime is
usage. Using the beam in rough environment, marine environment, contact with sharp edges, exposure to extreme temperatures or
agressive substances, etc. can lead to the wthdrawal from use even after one use.
PERIODICAL INSPECTION
At least once a year (after every 12 months of use), the AT 060 shall be subject to periodical inspection. The periodical inspection must
be carried out by a suitably qualified, competent person, responsible for the periodical inspections of protective equipment at the given
site. The periodical inspection can be carried out also by the manufacturer or his authorized representative. Every periodical inspection
must be recorded in the Identity Card of the equipment.
WITHDRAWAL FROM USE
The AT 060 shall be withdrawn from use and destroyed to avoid incidental reuse when:
It has been used to arrest a fall.
!
It fails to pass inspection. There are any doubt as to its reliability.
!
The AT 060 shall be withdrawn from use by the person who is responsible for the protective equipment at the given site.
MARKING
type of the device
reference number
month and year
of manufacture
(mm - yyyy)
manufacturer
or distributor
2015
next inspection
marking label
ANCHOR BEAM
fastening
plate
anchorage
eye bolts
main beam
indefinite. The AT 060 maximum lifetime depends on the intensity of usage and the environment of
ANCHOR BEAM
AT 060
Mfg date: MM-YYYY
EN 795:2012 / B
TS 16415:2013 / B
Serial No.XXX XXX
month and year of the manufacturer's
next inspection
Don't use the device after this date
Attention: Before the first use
max. 2 x
mark the date of the first inspection
(date of first use +12 months,
e.g. first use 01.2015 - mark inspection 01.2016)
safety pin
adjustment screw
adjustment plate
CE marking with identity number
of the notified body controlling
manufacturing of the equipment
(the article 11)
European standard (number:year/type)
technical specification (number:year/type)
serial number of the device
caution: read the manual
before use
admissible use for two persons
